WORKING AT HEIGHT
H-RAIL OVERHEAD

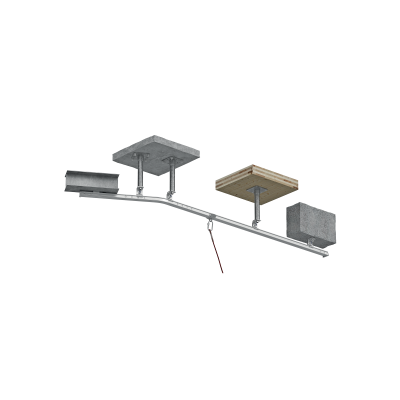

Working at height requires a reliable anchoring method, but traditional solutions can often be aesthetically unattractive or restrict the use of the work area. The H-RAIL rail system is a flexible and safe solution with minimal visual impact. Thanks to its structure, H-RAIL requires few fastening points and allows the creation of rigid anchor lines in different configurations. H-RAIL is the ideal option for working at height, in both retention and suspension mode.
Working at height with H-RAIL OVERHEAD

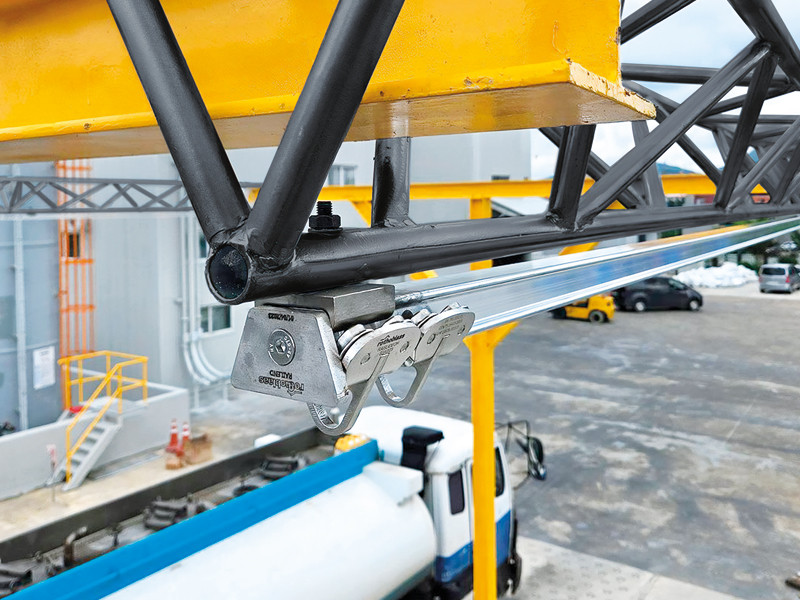

The H-RAIL system has been specially designed to be used with a sliding unit, equipped with four wheels, making it ideal for work at height, both in fall arrest and suspended mode.

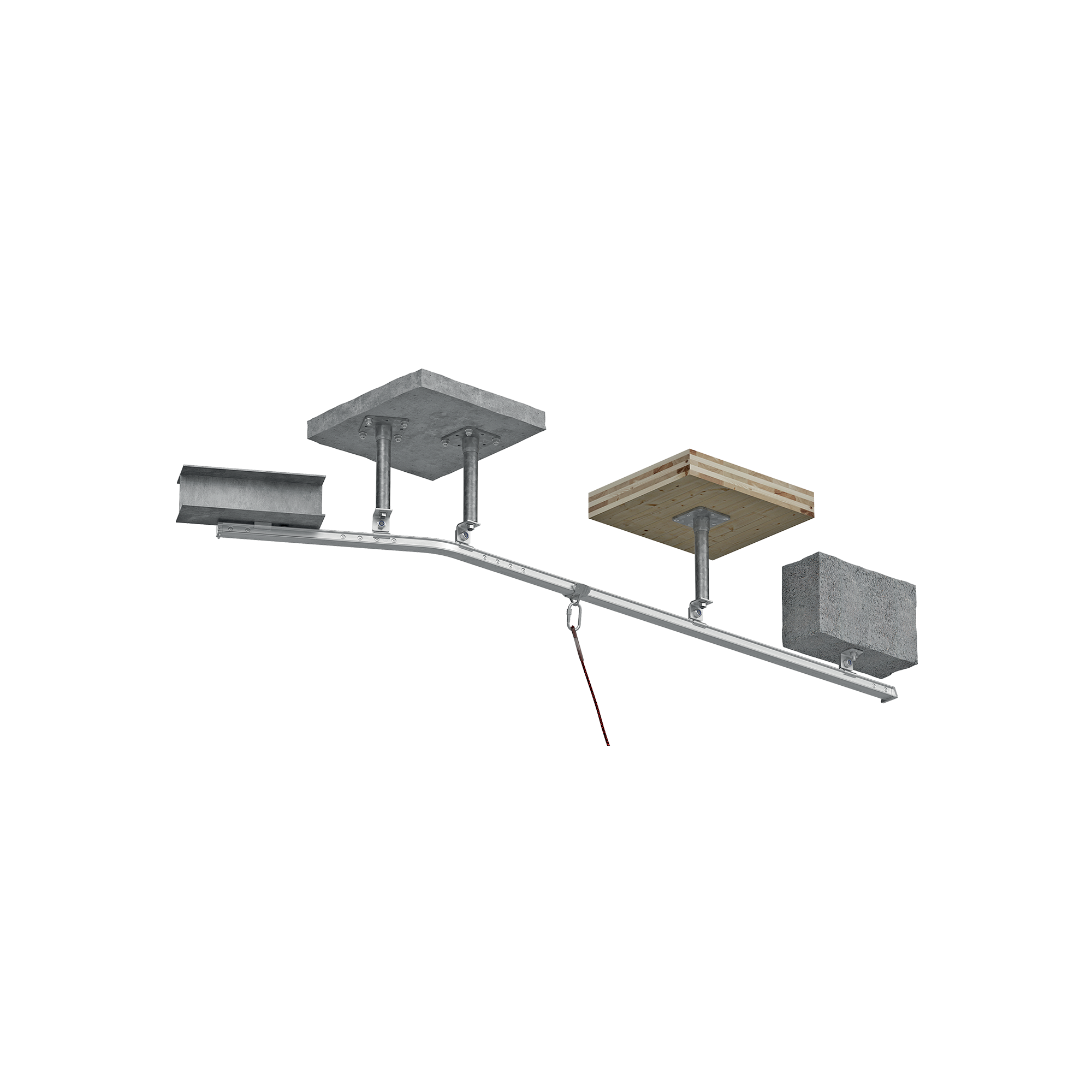

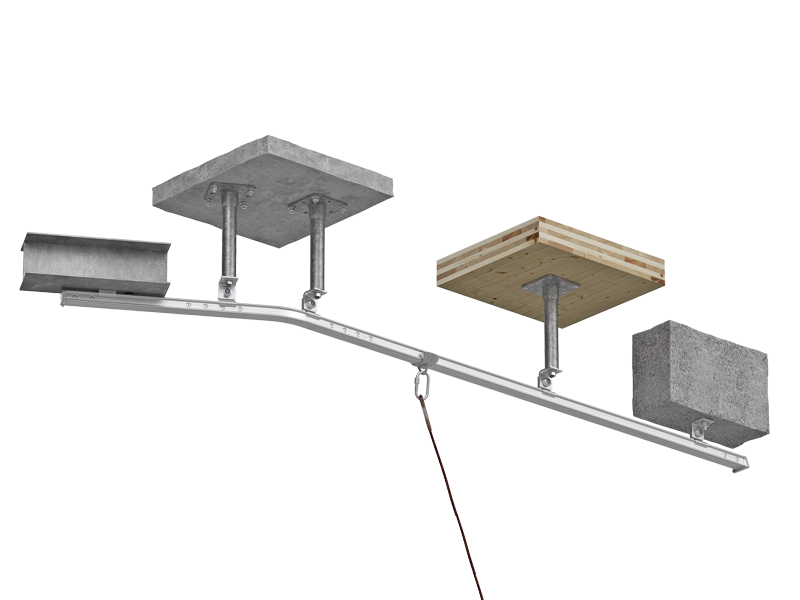

The versatility of H-RAIL allows it to be assembled on different types of structures, be they timber, concrete or steel, adapting perfectly to all installation requirements. Unlike the other available models, H-RAIL OVERHEAD is installed below the supporting structure, while H-RAIL ON WALL is installed on the wall and H-RAIL ON FLOOR on the roof.
With a spacing of up to 6 metres between supports, the H-RAIL assembly process requires only a few fastening points, simplifying installation.
What is meant by work at height
Work at height is defined as any type of work activity with a risk of falling from a height of more than 2 metres, which involves the need to ensure the safety of operators against falling at every step. Bulky solutions such as hanging baskets (BMUs) are often used to carry out work such as façade maintenance, especially on large buildings. However, these require large spaces and installation requirements, which must be taken into account right from the design phase of the building. H-RAIL offers an alternative solution with superior performance due to its simplicity and lightness.
H-RAIL OVERHEAD by Rothoblaas represents the ultimate in safety for work at height and maintenance of roofs and façades. Designed with the primary objective of ensuring maximum protection for operators, this innovative anchoring system provides a reliable and robust solution for any type of structure. Its installation is extremely simple and does not require complex masonry work, guaranteeing exceptional installation efficiency. The ergonomic and compact design blends harmoniously with the surrounding architecture, preserving the aesthetics of the location.
Made from the highest quality and most durable materials, H-RAIL provides long-lasting protection, offering peace of mind and safety to both operators and users of the facilities involved. Its versatility and reliability make it the ideal choice for a wide range of applications, from industrial maintenance to work on residential buildings, helping to raise safety standards and protecting the lives of those working at height.
Documents
Technical data sheets | |
---|---|
Declaration of conformity | |
Safety regulations, instructions for installation and use | |
Declaration of Installation and inspection |
Installation manual
Installation manual |
---|
RAIL
CODE | description | pcs. |
---|---|---|
RAIL3000 | 3m aluminium rail | 1 |
RAILC90 | 90° aluminium bend for rail | 1 |
RAILC120 | 120° aluminium bend for rail | 1 |
RAILC135 | 135° aluminium bend for rail | 1 |
RAILC150 | 150° aluminium bend for rail | 1 |
SUPPORT
CODE | description | pcs. |
---|---|---|
RAILBRAT | support element for rail | 1 |
RAILBRAT12 | M12 plate for RAILBRAT | 1 |
RAILBRAT16 | M16 plate for RAILBRAT | 1 |
RAILBRATW | for fixing on wood | 1 |
RAILBRAS | for direct fixing on steel | 1 |
TERMINAL ELEMENT
CODE | description | pcs. |
---|---|---|
RAILEND | rail end-stop without exit | 1 |
RAILENDOPEN | rail end-stop with exit | 1 |
JOINT
CODE | description | pcs. |
---|---|---|
RAILJUN | junction for rails and bends | 1 |
SLIDING DEVICE
CODE | description | pcs. |
---|---|---|
RAILSLIDE | sliding device | 1 |
RAILSLIDEOH | slide for overhead application | 1 |
TOOL
CODE | description | pcs. |
---|---|---|
RAILJUNTOOL | template for rail junction holes | 1 |
RAILPLATE | Rail system ID plate | 1 |
FASTENING
CODE | description | pcs. |
---|---|---|
RAILOCKSCREW | Lock screw | 250 |
RAILSCREW | DIN 7991 A2-70 | 50 |
TARGAHORxy
CODE | description | pcs. | |
---|---|---|---|
TARGAHORIT | New | Label plate for PATROL and H-RAIL systems IT | 1 |
TARGAHORDE | New | Label plate for PATROL and H-RAIL systems DE | 1 |
TARGAHOREN | New | Label plate for PATROL and H-RAIL systems EN | 1 |
TARGAHORES | New | Label plate for PATROL and H-RAIL systems ES | 1 |
TARGAHORFR | New | Label plate for PATROL and H-RAIL systems FR | 1 |
TARGAHORPT | New | Label plate for PATROL and H-RAIL systems PT | 1 |
TARGAHORRU | New | Label plate for PATROL and H-RAIL systems RU | 1 |
TARGAHORCS | New | Label plate for PATROL and H-RAIL systems CS | 1 |
TARGAHORDA | New | Label plate for PATROL and H-RAIL systems DA | 1 |
TARGAHOREL | New | Label plate for PATROL and H-RAIL systems EL | 1 |
TARGAHORET | New | Label plate for PATROL and H-RAIL systems ET | 1 |
TARGAHORFI | New | Label plate for PATROL and H-RAIL systems FI | 1 |
TARGAHORHR | New | Label plate for PATROL and H-RAIL systems HR | 1 |
TARGAHORHU | New | Label plate for PATROL and H-RAIL systems HU | 1 |
TARGAHORIS | New | Label plate for PATROL and H-RAIL systems IS | 1 |
TARGAHORJA | New | Label plate for PATROL and H-RAIL systems JA | 1 |
TARGAHORLT | New | Label plate for PATROL and H-RAIL systems LT | 1 |
TARGAHORLV | New | Label plate for PATROL and H-RAIL systems LV | 1 |
TARGAHORNL | New | Label plate for PATROL and H-RAIL systems NL | 1 |
TARGAHORNO | New | Label plate for PATROL and H-RAIL systems NO | 1 |
TARGAHORPL | New | Label plate for PATROL and H-RAIL systems PL | 1 |
TARGAHORRO | New | Label plate for PATROL and H-RAIL systems RO | 1 |
TARGAHORSK | New | Label plate for PATROL and H-RAIL systems SK | 1 |
TARGAHORSL | New | Label plate for PATROL and H-RAIL systems SL | 1 |
TARGAHORSV | New | Label plate for PATROL and H-RAIL systems SV | 1 |
TARGAHORTR | New | Label plate for PATROL and H-RAIL systems TR | 1 |
TARGAHORZH | New | Label plate for PATROL and H-RAIL systems ZH | 1 |
TARGAHORAR | New | Label plate for PATROL and H-RAIL systems AR | 1 |
