RESILIENT SOUNDPROOFING PROFILE
PIANO
PIANO is the soundproofing material that reduces vibrations and provides good acoustic comfort, both in lightweight floors and in more complex, high-load buildings.
Certified according to ETA, it is available in 5 versions covering use on a wide range of loads, from floating floors to multi-storey buildings.
Some versions are pre-cut to obtain more widths with the same product. PIANO is identifiable by different geometries and colours that identify the applicable loads.
APPLICATIONS
- Lightweight slabs, timber frame and massive structures such as CLT or LVL
- It can be applied with PRIMER SPRAY or DOUBLE BAND even on battens
With its expanded and extruded EPDM compound, PIANO is a soundproofing material that provides acoustic improvement values of more than 4 dB.
CHARACTERISTICS
- The elastic EPDM mixture can compensate for timber and structure expansion
- Anti-vibration: PIANO dampens vibrations in both static and dynamic conditions due to its ability to absorb and dissipate the energy of the system.
- High long-term durability, chemical and UV stability
- Available in 5 versions, some pre-cut, varying in colour and acoustic loads
- The compact cross-section makes it more stable when crushed
- Does not contain VOCs
- After a stringent regulatory process, it has been tested and certified according to ETA-23/0193
To know the influence of PIANO in the presence of screws and nails and tests on timber-to-timber joints.
PIANO A
For low loads and light structures.
Performance
Tested acoustic improvement: Δl,ij (3): > 4 dB
Maximum applied load (3 mm deformation): 0,15 N/mm²
Acoustic load: from 0.008 to 0.052 N/mm²

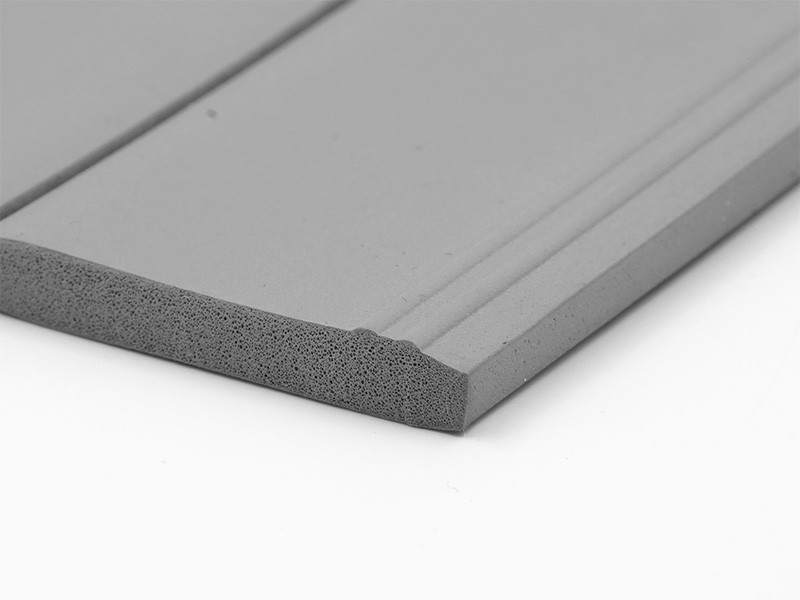

PIANO B
For low loads and light structures.
Performance
Tested acoustic improvement: Δl,ij (3): > 4 dB
Maximum applied load (3 mm deformation): 0,15 N/mm²
Acoustic load: from 0.008 to 0.052 N/mm²
PIANO C
For medium loads.
Performance
Tested acoustic improvement: Δl,ij (3): > 4 dB
Maximum applied load (3 mm deformation): 12,07 N/mm²
Acoustic load: from 0.12 to 1.4 N/mm²

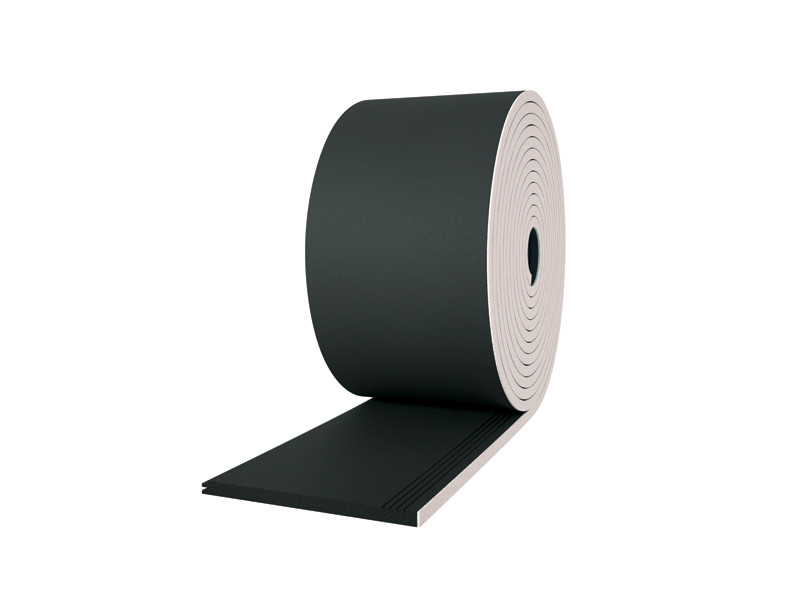

PIANO D
For higher loads than A, B and C versions.
Suitable as soundproofing material for complex buildings with considerable heights.
Performance
Tested acoustic improvement: Δl,ij (3): > 4 dB
Maximum applied load (3 mm deformation): 16.9 N/mm²
Acoustic load: from 1.2 to 2.28 N/mm²
PIANO E
For high loads and multi-storey constructions.
Performance
Tested acoustic improvement: Δl,ij (3): > 4 dB
Maximum applied load (3 mm deformation): 17.07 N/mm²
Acoustic load: from 1.8 to 3.2 N/mm²
Documents
| Technical data sheets | |
|---|---|
| Soundproofing solutions - technical manual | |
| ETA Certificate | |
| Soundproofing TEST REPORT |
PIANO
| CODE | B
[mm]
|
L
[m]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|
| PIANOA4040 | 80 | 10 | 6 | 1 |
| PIANOA5050 | 100 | 10 | 6 | 1 |
| PIANOA6060 | 120 | 10 | 6 | 1 |
| PIANOA140 | 140 | 10 | 6 | 1 |
| PIANOB4040 | 80 | 10 | 6 | 1 |
| PIANOB5050 | 100 | 10 | 6 | 1 |
| PIANOB6060 | 120 | 10 | 6 | 1 |
| PIANOB140 | 140 | 10 | 6 | 1 |
| PIANOC080 | 80 | 10 | 6 | 1 |
| PIANOC100 | 100 | 10 | 6 | 1 |
| PIANOC120 | 120 | 10 | 6 | 1 |
| PIANOC140 | 140 | 10 | 6 | 1 |
| PIANOD080 | 80 | 10 | 6 | 1 |
| PIANOD100 | 100 | 10 | 6 | 1 |
| PIANOD120 | 120 | 10 | 6 | 1 |
| PIANOD140 | 140 | 10 | 6 | 1 |
| PIANOE080 | 80 | 10 | 6 | 1 |
| PIANOE100 | 100 | 10 | 6 | 1 |
| PIANOE120 | 120 | 10 | 6 | 1 |
| PIANOE140 | 140 | 10 | 6 | 1 |
