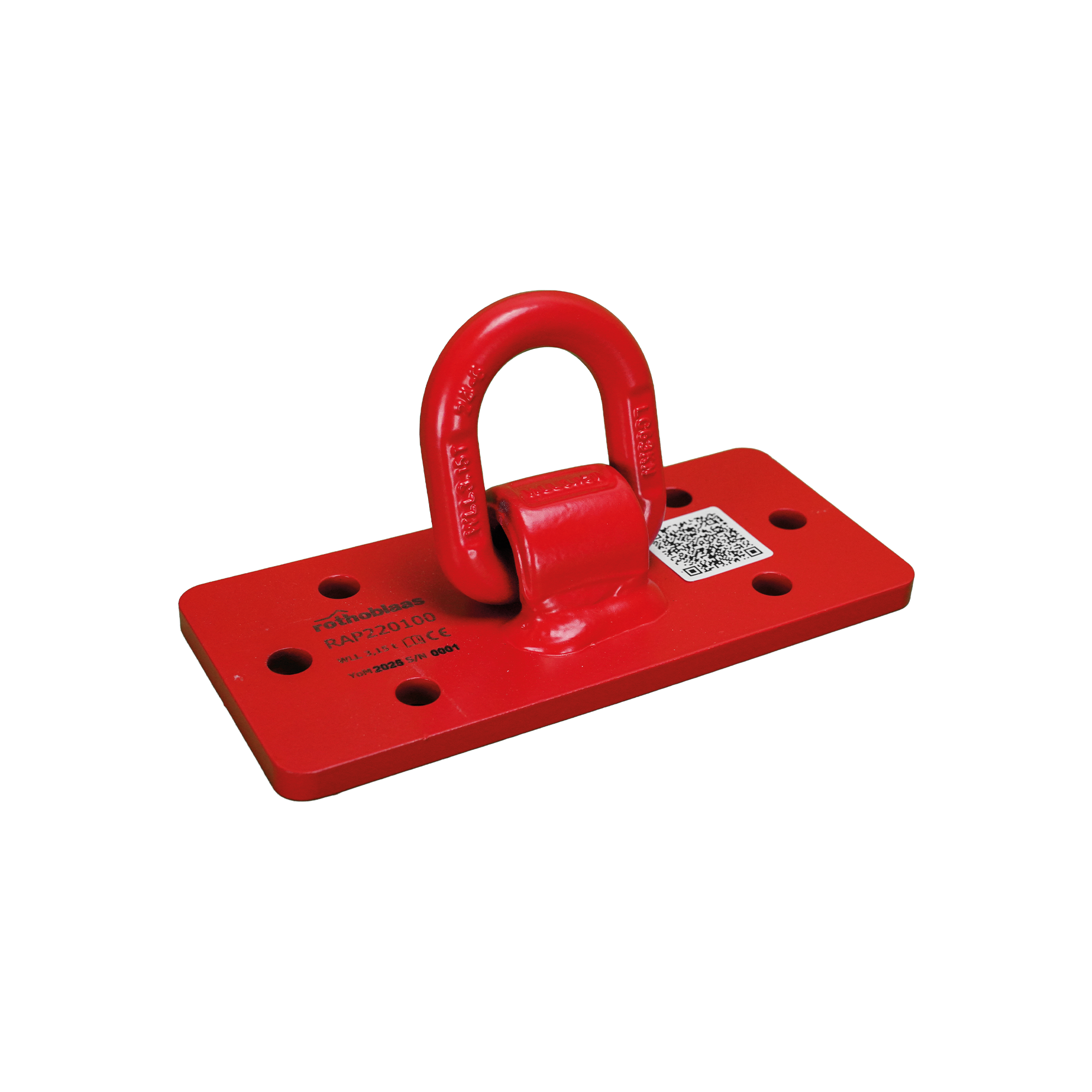

RAPTOR

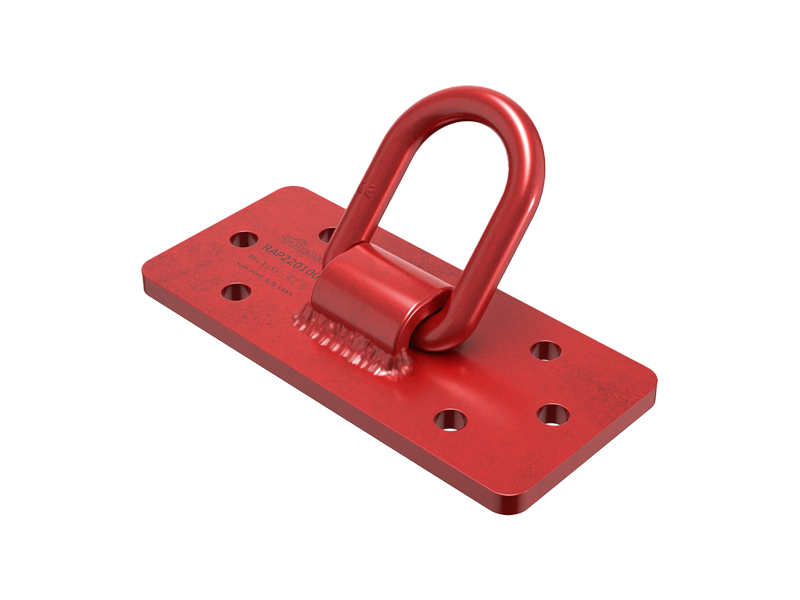

RIGGING DEVICE FOR TIMBER ELEMENTS

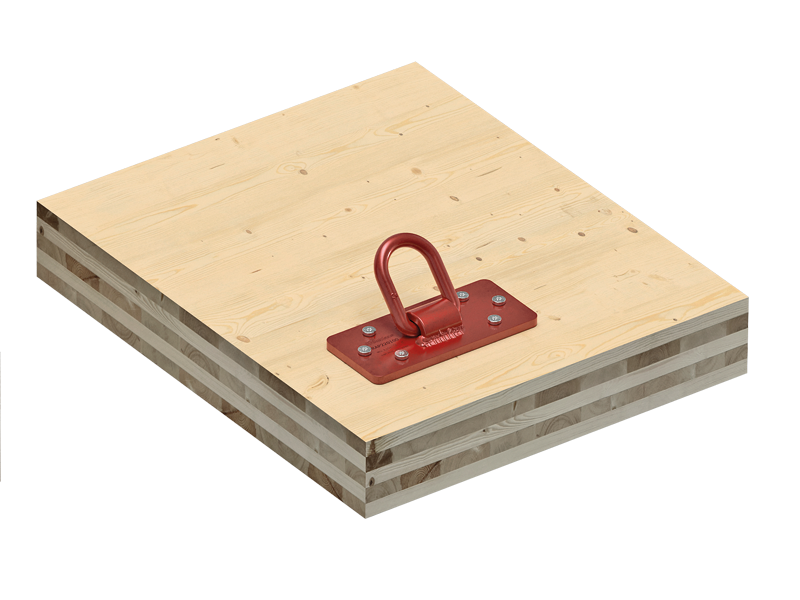

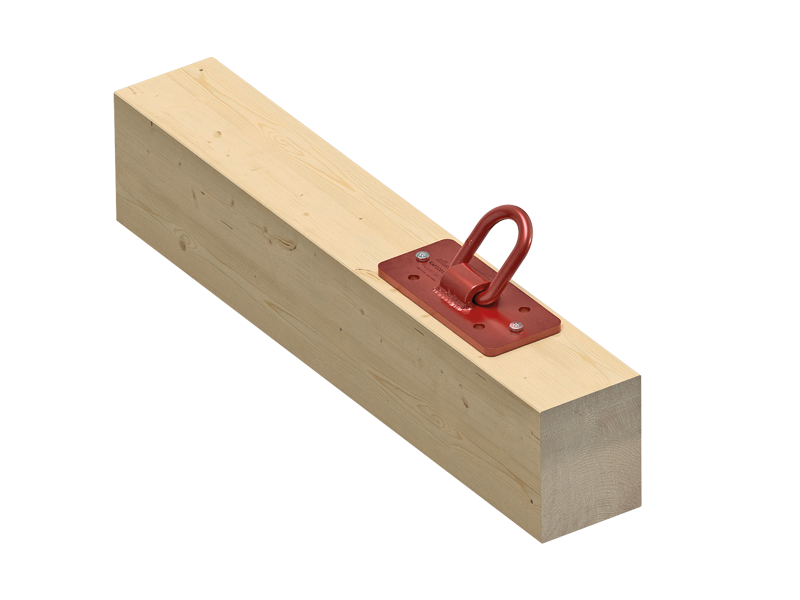

RAPTOR can be installed with configurations that make it suitable for the most common applications on the construction site:
• 6 screws: maximum strength and capacity
• 4 or 2 screws: for lifting and transporting lighter panels
The screws must be applied symmetrically

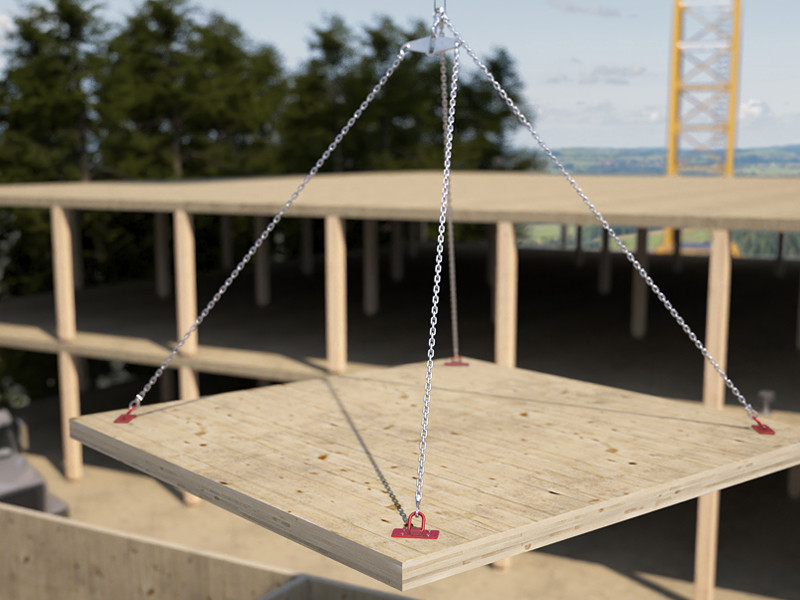

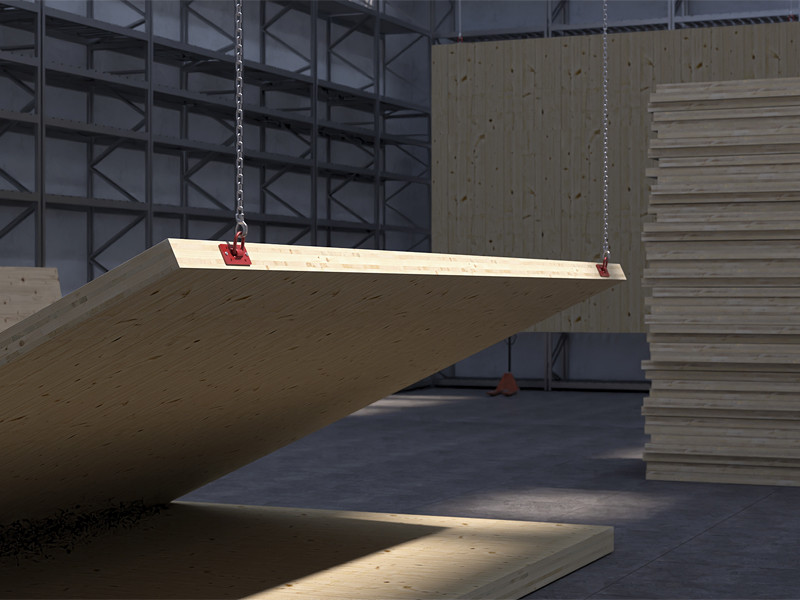

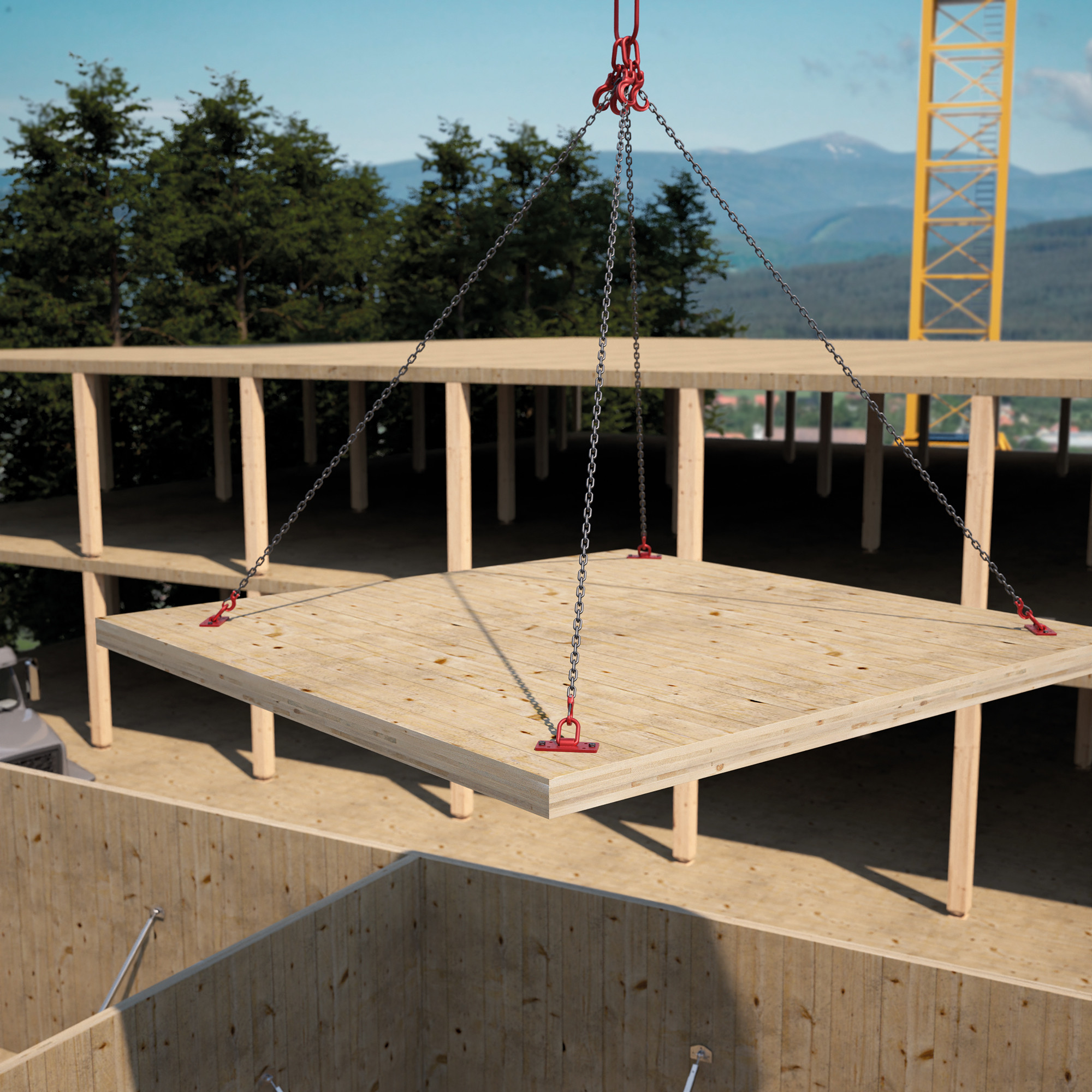

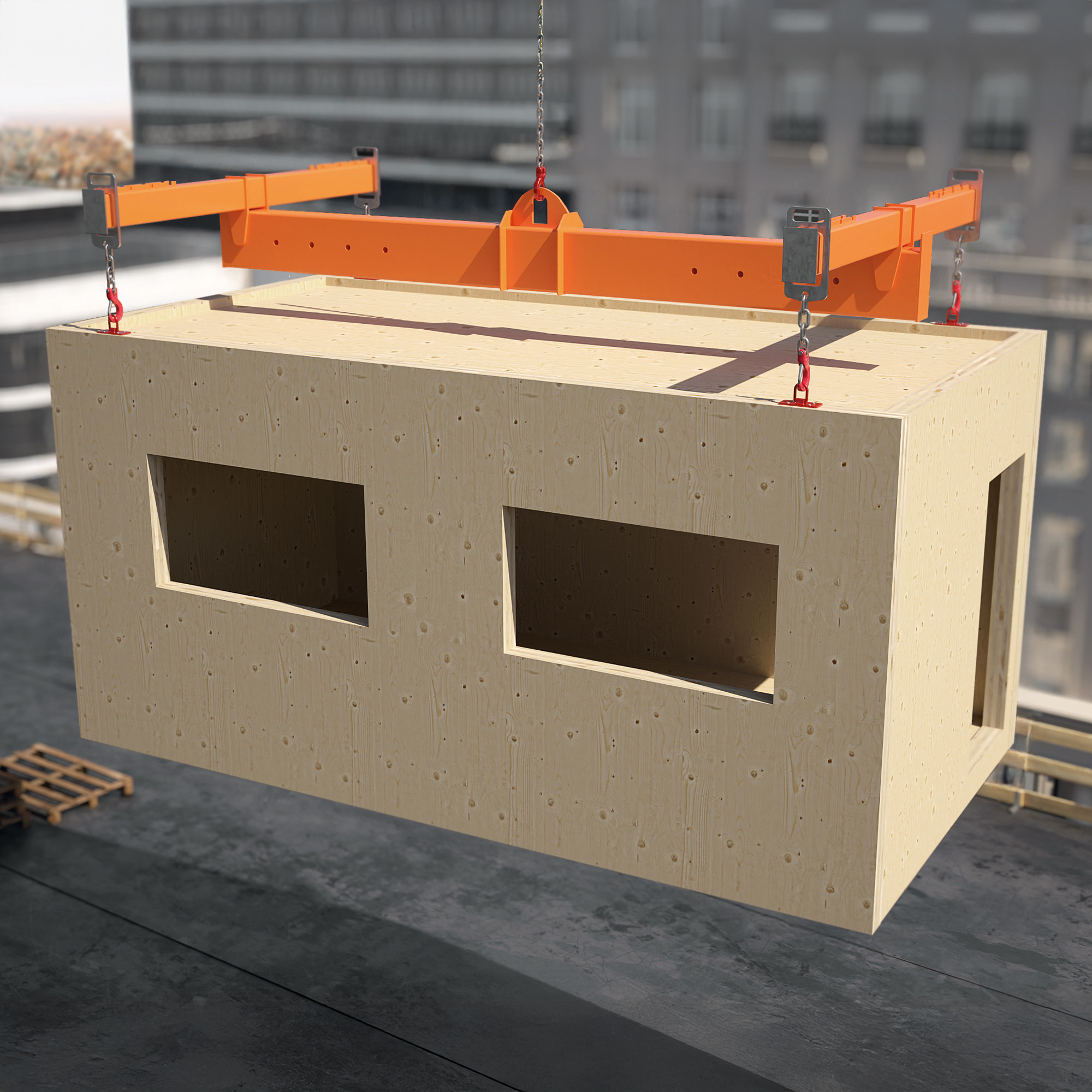

The device is suitable for many different handling configurations. It can be used to work with any inclination of the chain, working effectively in both tension and shear, but also in intermediate configurations.

The plate is certified according to the Machinery Directive 2006/42/EC for weights exceeding 3 tonnes.

One product – two functions. The plate can be used either as a lifting device to transport timber elements, or as a temporary fall protection anchor point.

Get in touch with sales

Documents

RAPTOR

CODE description pcs.
RAP220100 TRANSPORTPLATE 3.15t 1
Related products
HBS PLATE

PAN HEAD SCREW FOR PLATES
VGS PLATE

PAN HEAD HEX SCREW FOR LIFTING
B 13 B

2-SPEED SCREWDRIVER
A 18 | ASB 18

MAFELL - CORDLESS DRILL DRIVER
BEAR

TORQUE WRENCH

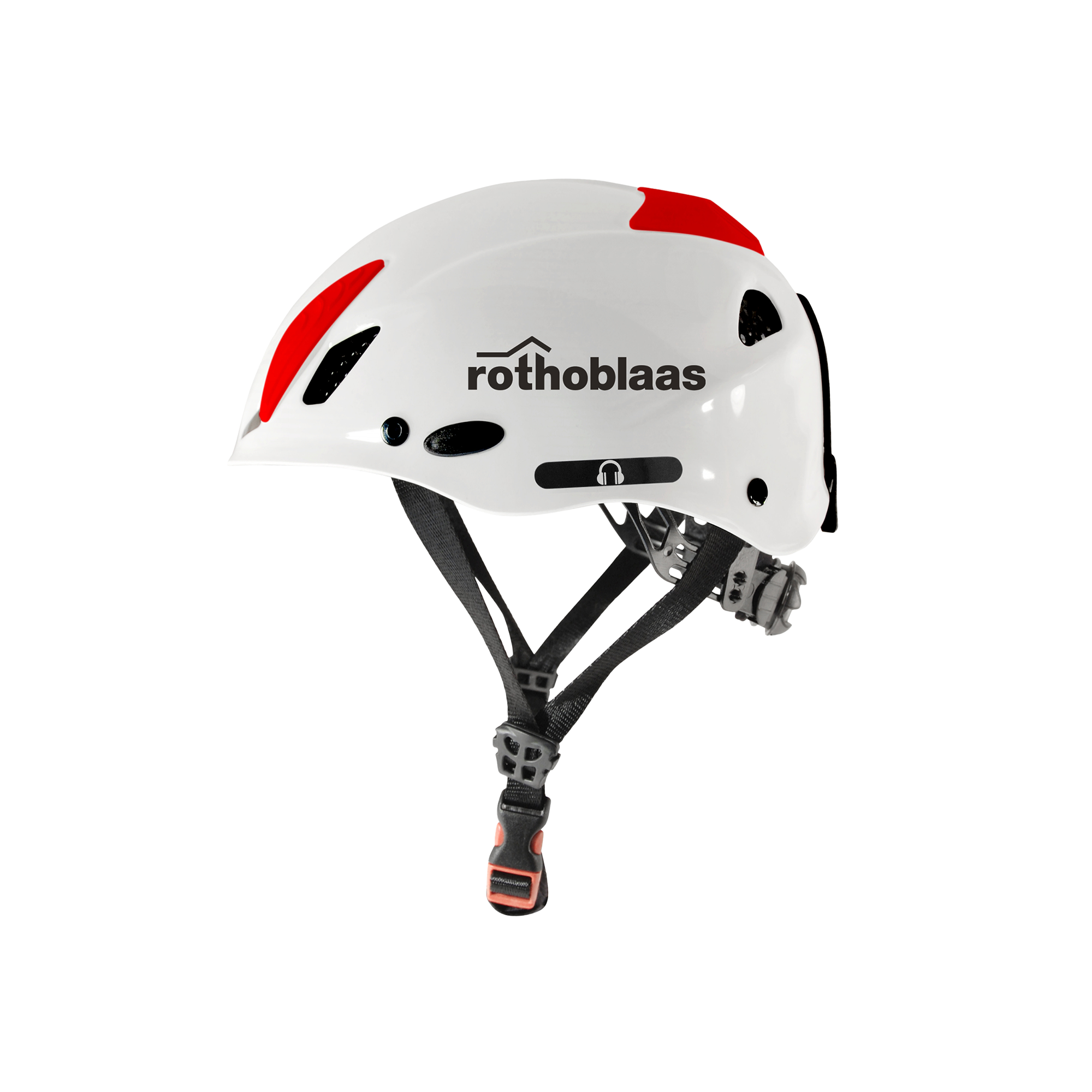

PROTECTOR

HELMET FOR WORK AT HEIGHT, ON CONSTRUCTION SITE OR IN INDUSTRIAL AREAS

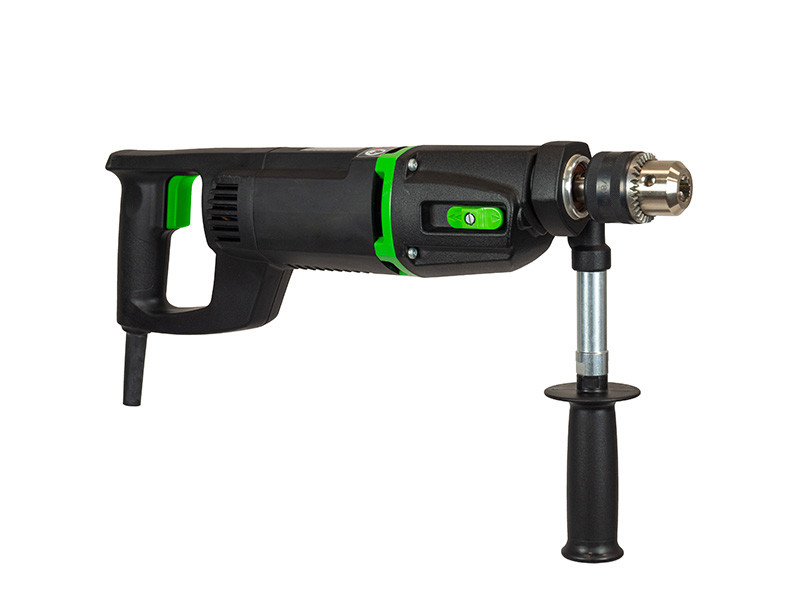

EHB 16
