SELF-ADHESIVE STRIP FOR PERIMETER SEPARATION

SILENT EDGE

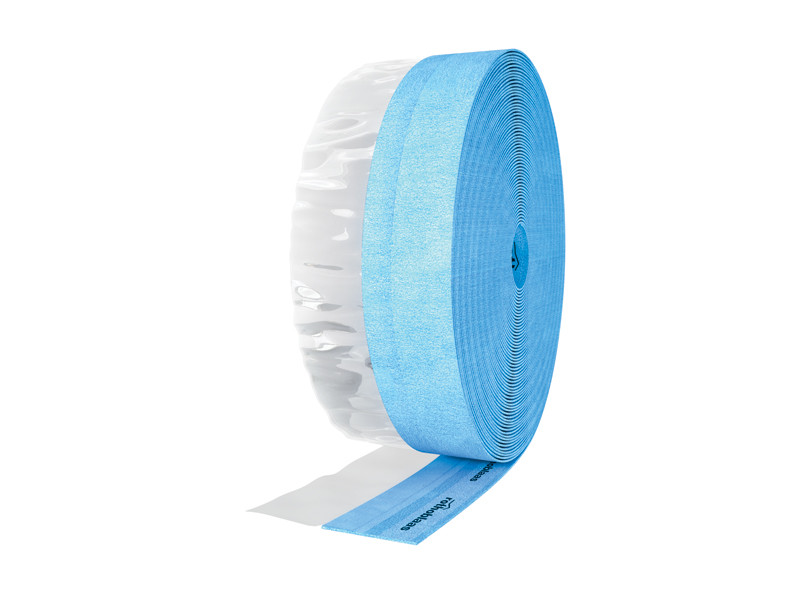

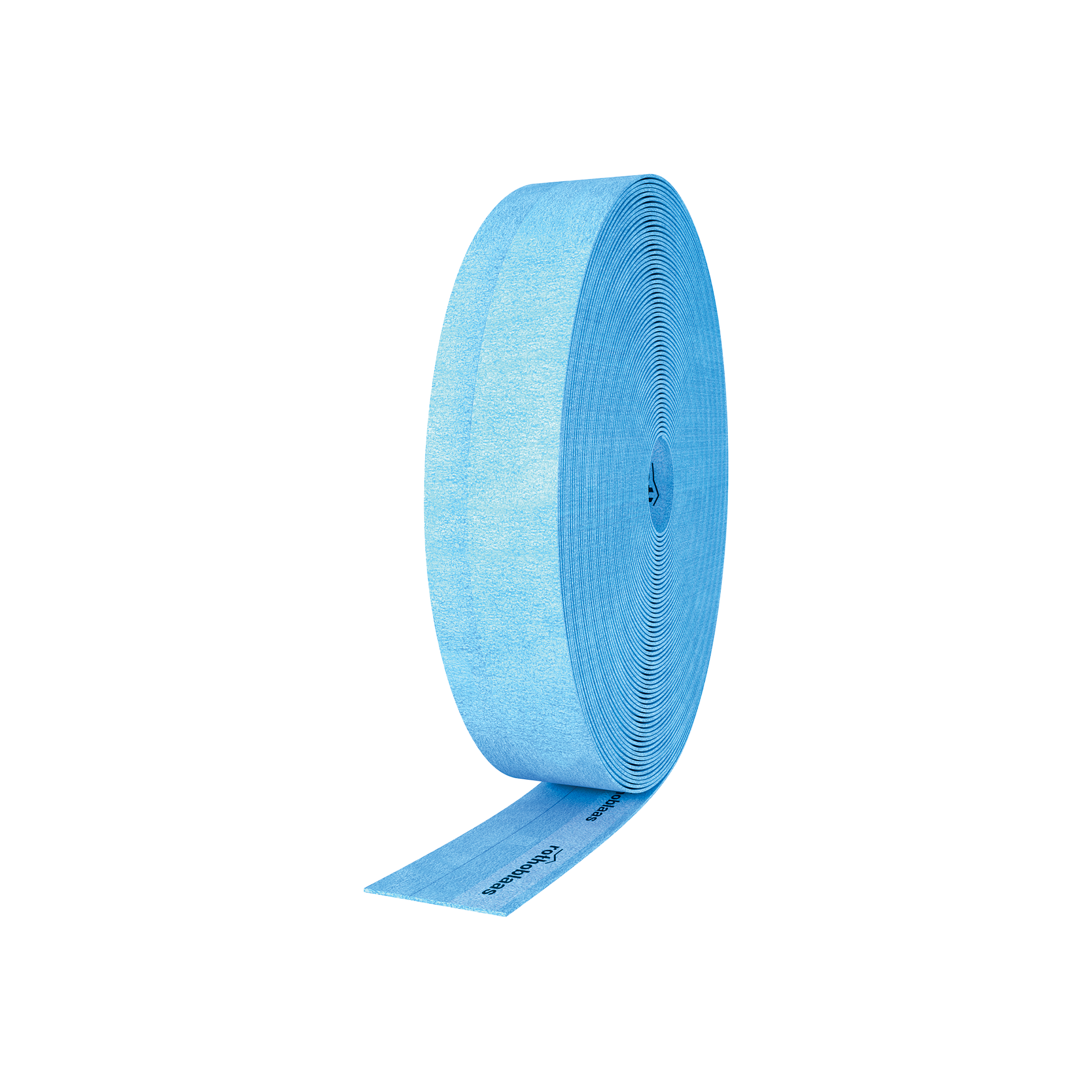

SILENT EDGE is the adhesive band for sound insulation by means of perimetral decoupling of timber structures.

It is the ideal solution for use as a perimetral band both in floors undergoing structural restoration and in new constructions, and ensures effective soundproofing.

Make an effective floating screed: combine the perimetral band SILENT EDGE with the solutions for floor insulation of the SILENT FLOOR family.

Thanks to the self-adhesive support and the pre-cut, application is fast and precise.

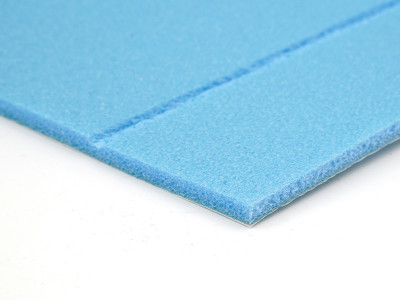

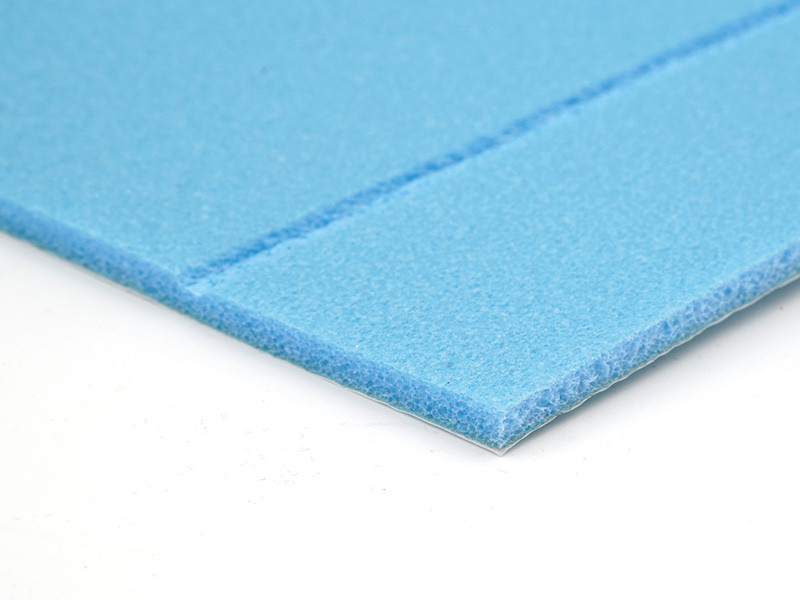

Made of closed-cell polyethylene with acrylic glue and silicone film liner, it is characterised by a closed-cell structure that makes it airtight and waterproof even if cut or trimmed after application.

Used in combination with the products of the SILENT FLOOR family, it enables the creation of a screed with high sound insulation performance.

It does not contain substances harmful for people and the environment.

Features

Material Closed cell polyethylene
Thickness 4,0 mm
Dimensions bands from 150 mm
Application perimeter desolidarisation floor strip
Installation adhesive strip

Documents

Technical data sheets

SILENT EDGE

CODE B
[mm]
L
[m]
s
[mm]
pcs.
SILENTEDGE150 150 50 4 5

Specifications

Supply and installation of self-adhesive strip for perimeter separation, type SILENT EDGE

Composition:

  • Closed-cell polyethylene with acrylic glue and silicone film liner. Does not contain harmful substances

Properties:

  • Dynamic stiffness s’ [MN/m³] :
  • Theoretical estimate of the degree of impact sound attenuation ∆L [dB] : 20-25
  • Thickness [mm] : 4

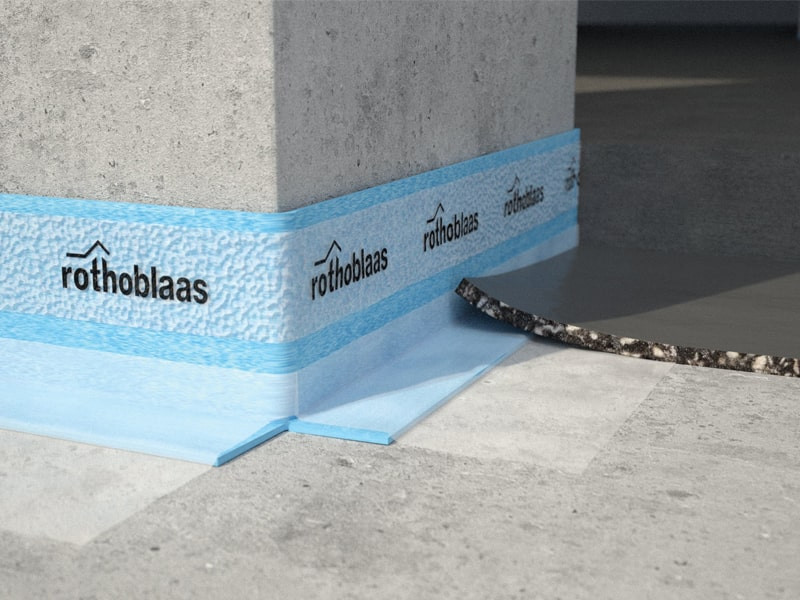

Suitable for timber-to-timber installation to create a physical and mechanical separation between the two elements, thus avoiding the transmission of vibrations caused by impact sound. To increase the vibration absorption capacity, it is advisable to install the profile both below and above the timber floor. Install the profile on the upper section of the wall and fix it mechanically with staples every 40/60 cm. Then install the horizontal panel of the floor and repeat the operation. SILENT EDGE is placed to complete the anti-impact sound layer in order to create a state-of-the-art way resilient layer. SILENT EDGE is placed along the perimeter taking advantage of the pre-cut that allows a fast and precise installation.
