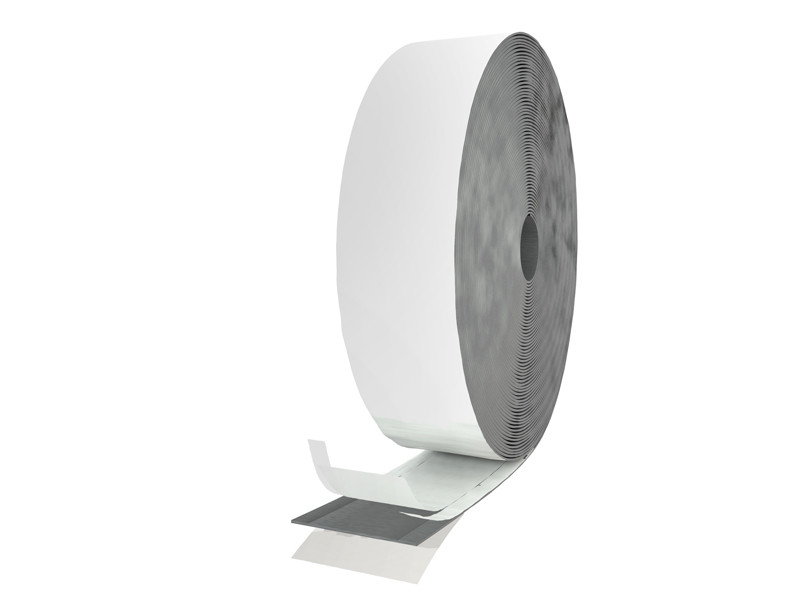

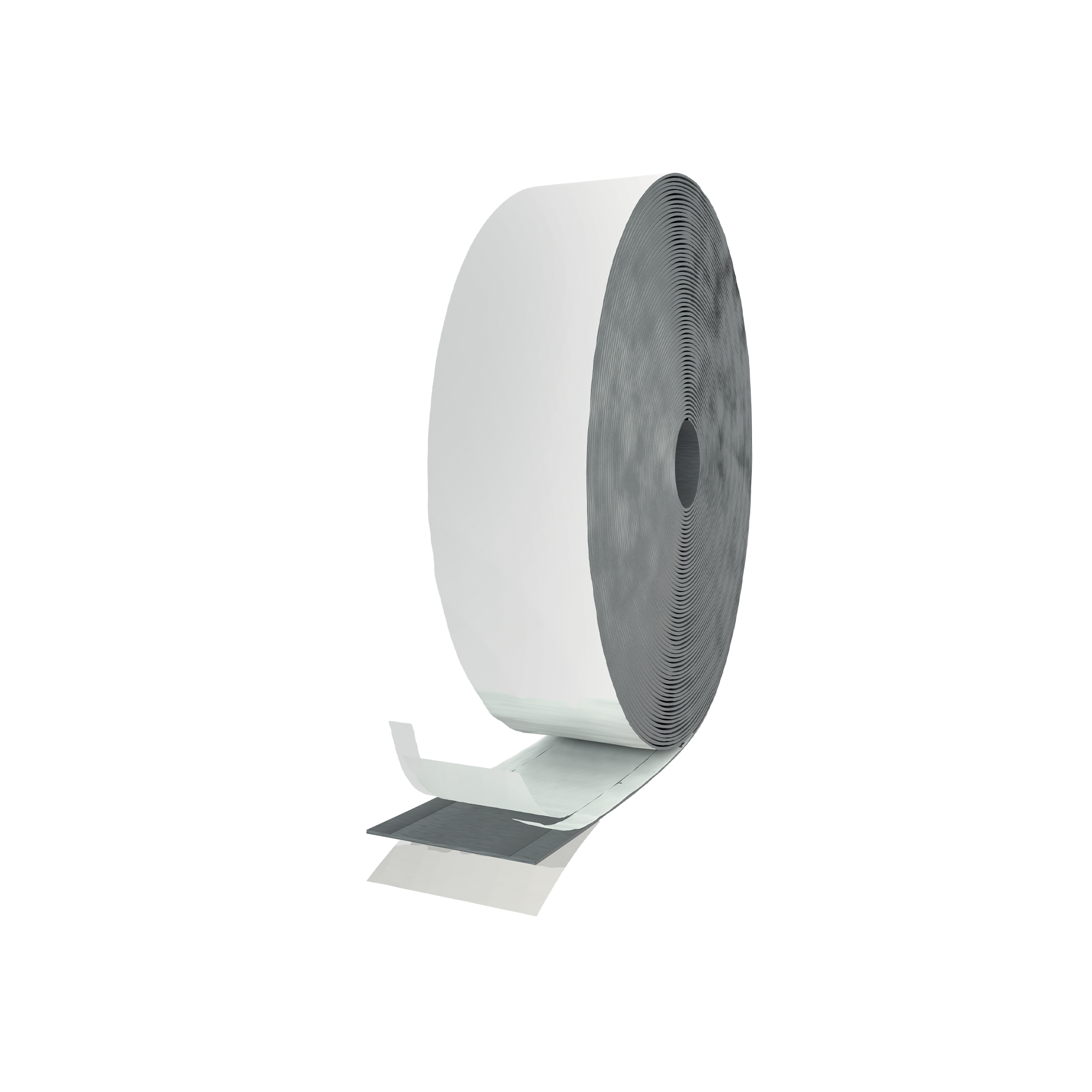

SILENT GIPS, the thermal and acoustic insulation for decoupling between plasterboard and structural elements in timber or brick that ensures soundproofing.
Made of closed-cell polyethylene grid, SILENT GIPS cannot be irreversibly crushed and remains effective over time.

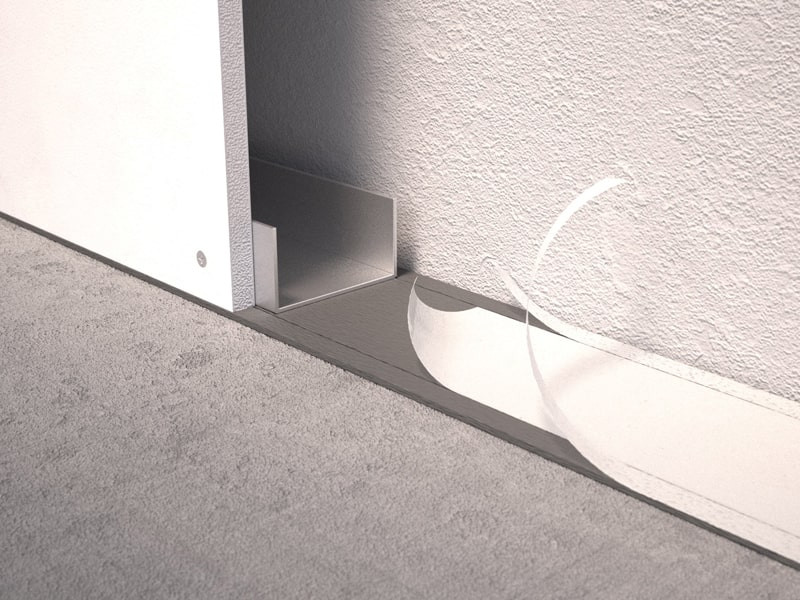

Thanks to the acrylic glue, installation on the metal frame is fast and easy, without the need for additional adhesives.
The pre-cut means the product can adapt to various plasterboard wall configurations.
It does not contain substances harmful for people and the environment.
Features
Material | Closed cell polyethylene |
---|---|
Thickness | 3,3 mm |
Dimensions | Strips from 100 mm |
Application | Plasterboard wall structure |
Installation | Double-sided adhesive profile |
Documents
Technical data sheets |
---|
SILENT GIPS
CODE | liner | B
[mm]
|
L
[m]
|
s
[mm]
|
pcs. |
---|---|---|---|---|---|
SILENTGIPS | 12/76/12 | 100 | 30 | 3.3 | 1 |
Specifications
Supply and installation of pre-cut detaching self-adhesive high density thermo-acoustic strip, type SILENT GIPS
Composition:
- Closed-cell polyethylene with acrylic glue and silicone film liner. Does not contain harmful substances
Properties:
- Dynamic stiffness s’ [MN/m³] : 60
- Crushing [mm] : 0,3
- Thickness [mm] : 3,3
- Soundproofing power estimate for a single profile [dB] : 10-13
