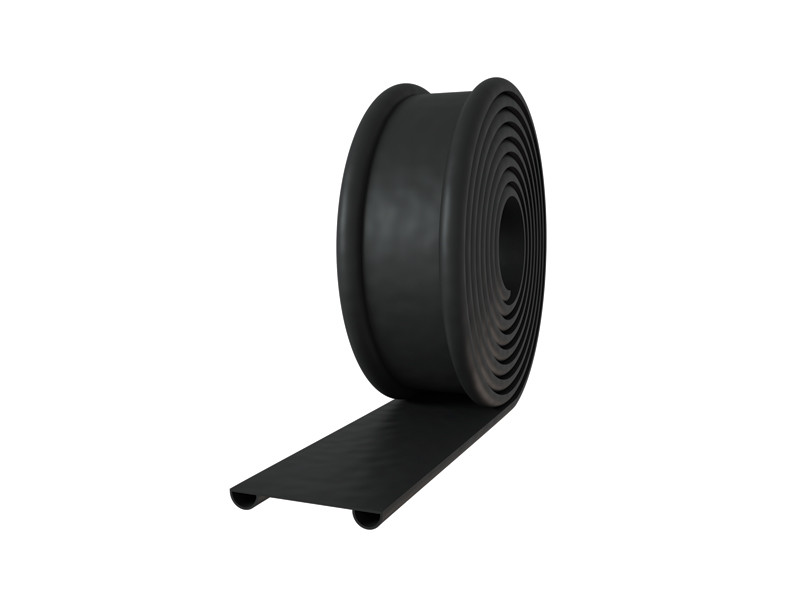

TIE-BEAM STRIPE
Ideal as wall soundproofing, TIE-BEAM STRIPE is flexible and easy to work with because of its soft, mouldable modified EPDM compound, which provides elasticity and resistance even when perforated and mechanically fastened.
APPLICATIONS

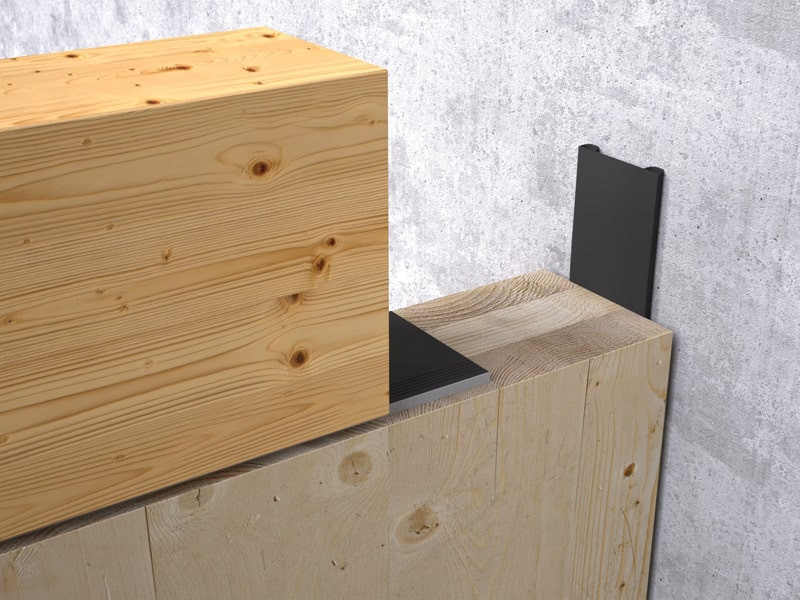

- TIE-BEAM STRIPE is the resilient profile to connect tie beam and brickwork/concrete.
- TIE BEAM STRIPE adapts well to surfaces, ensuring air and water tightness at all times. It can also be used vertically as a seal between walls.
Description
The special EPDM compound composition ensures constant mechanical performance over time, even when subjected to cyclical loads, such as snow or other non-permanent loads. In addition, it improves the airtightness between the joints of the different elements, partially reducing the transmission of vibrations.
Documents
-
Technical data sheets
- Technical data sheets Croatian
- Technical data sheets Czech
- Technical data sheets English
- Technical data sheets French
- Technical data sheets German
- Technical data sheets Greek
- Technical data sheets Hungarian
- Technical data sheets Italian
- Technical data sheets Polish
- Technical data sheets Portuguese
- Technical data sheets Romanian
- Technical data sheets Russian
- Technical data sheets Slovene
- Technical data sheets Spanish

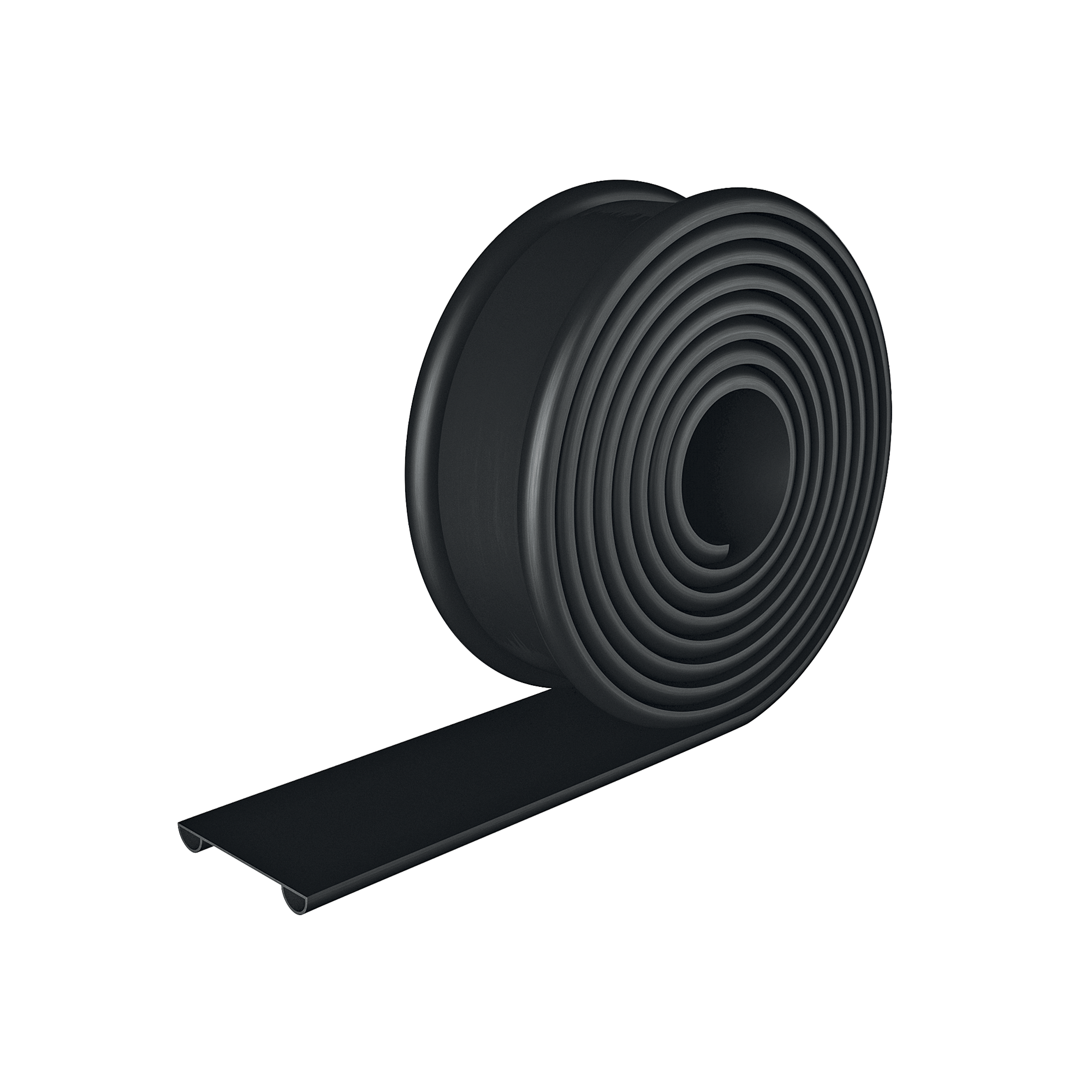

TIE-BEAM STRIPE
| CODE | B
[mm]
|
s
[mm]
|
L
[m]
|
B
[in]
|
s
[mil]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|---|---|
| TIEBEAM71 | 71 | 9 | 50 | 2.8 | 354 | 164 | 1 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Hardness | EN ISO 868 | 50 SHORE A | - |
| Density | - | 1,1 g/cm³ | 0.64 oz/in³ |
| Breaking load | EN ISO 37 | ≥ 9 MPa | - |
| Elongation at failure | EN ISO 37 | ≥ 500 % | - |
| Application temperature | - | -40 / 90 °C | -40 / 194 °F |
| Resistance to temperature | - | 40 / 100 °C | 104 / 212 °F |
| Storage temperature | - | 5 / 25 °C | 41 / 77 °F |
| Solvents | - | no | - |
| Deformazione a compressione (70h, 100°C) | ISO 815 | < 50 % | - |
Composition
| SUPPORT | Extruded compact EPDM |
|---|
Specifications

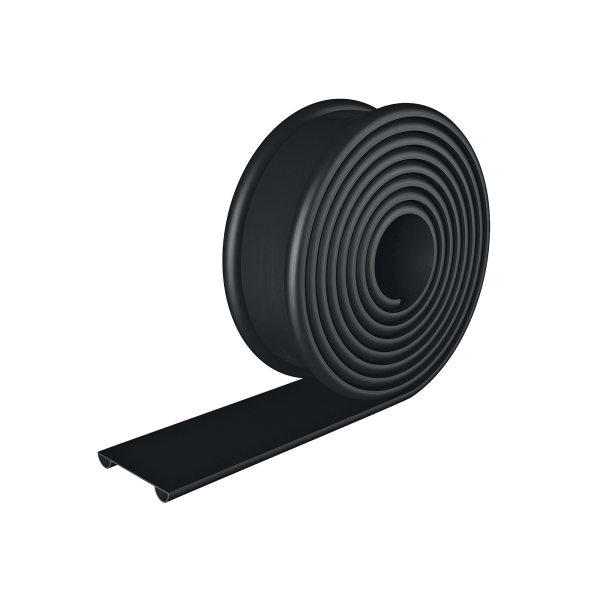

TIE-BEAM STRIPE
Supply and installation of a tie-beam sealing profile, Type TIE-BEAM STRIPE.
Composition
- Extruded compact EPDM
Properties
-
Density [g/cm3]: 1,1
-
Breaking load [Mpa]: ≥ 9
-Elongation at failure [%]: ≥ 500
-
Compression deformation (70h, +100°C) [%]: < 50
-
Application temperature [°C]: -40/+90
-
Resistance to temperature [C°]: -40/+100
-
Storage temperature [C°]: +5/+25
-
Solvents: no
Application surface
The application surface must be dry, free of dust and grease. Surface elements must be removed so that the membrane is not damaged during application.
Recommended use
Ideal for durable connections between window sills and masonry or concrete.
The pre-formed profile adapts well to surfaces, ensuring air and water tightness at all times. Its versatility also allows vertical use for sealing between walls.
Its profile ensures great elasticity and resistance even in the event of perforations and mechanical fastening, thanks to the special modified EPDM compound.
Installation
Unroll the gasket and fix it to the substrate using a mechanical fastening device to ensure installation stability.
