TRACK
Among Rothoblaas soundproofing products, TRACK is the resilient profile that offers an excellent balance between cost and soundproof performance. With its special compound composition, TRACK reduces the lateral transmission of vibrations.
APPLICATIONS
- In all cases where it is necessary to reduce lateral transmission of side vibrations
- It is applied with staples, PRIMER SPRAY, DOUBLE BAND
Documents
-
Technical data sheets
TRACK
| CODE | B
[mm]
|
L
[m]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|
| TRACK85 | 85 | 50 | 4.5 | 1 |
Specifications
TRACK
Supply and installation of resilient profile for soundproofing, type TRACK.
Geometry
-
B (mm) =85
-
L (m) =50
-
s (mm) =4,5
Properties
-
Hardness: 65 ± 5 Shore A
-
Density ρ [g/cm^3]: 1,2
-
Tensile strength [N/mm^2]: ≥ 7,5
-
Elongation at break point: ≥ 250%
-
Max processing temperature (°C): 90 °C
Description

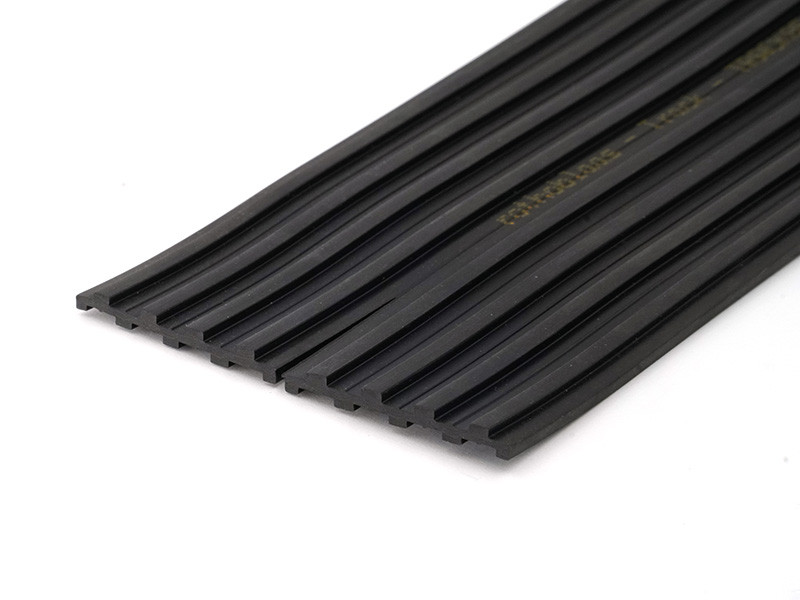

Resilient profile for soundproofing, made of compact extruded EPDM synthetic rubber, designed to reduce lateral vibration transmission and improve airtightness. Due to the solid EPDM compound, the material ensures long-term stability, resistance to chemical agents, and contains no harmful substances.
Installation

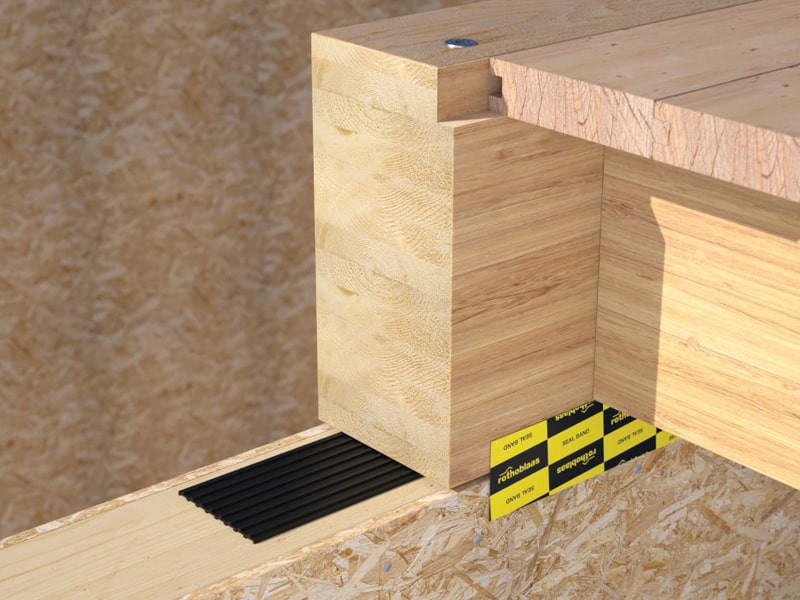

Install the profile along the top section of the wall and fasten mechanically using staples, primer like PRIMER SPRAY and tape like DOUBLE BAND. Then install the horizontal panel of the floor and repeat the operation. Further details regarding installation can be found in the specific instructions provided by the supplier.
