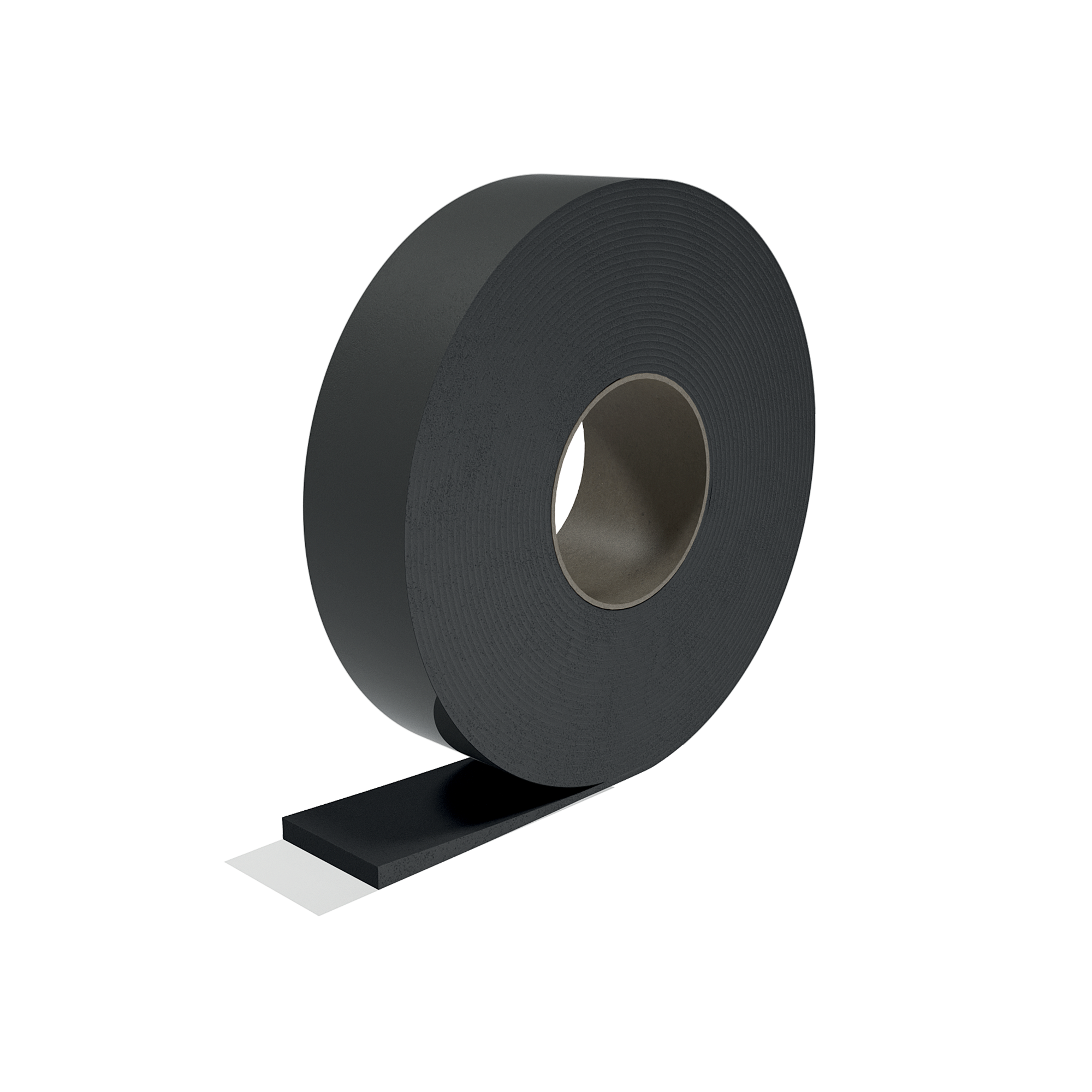

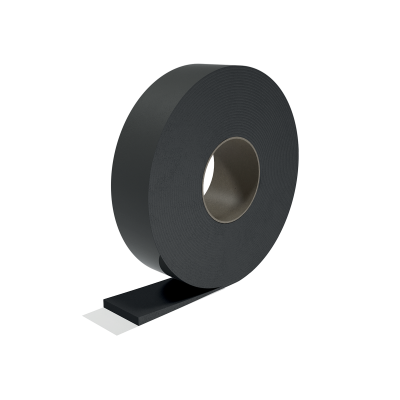

WINDOW BAND
WINDOW BAND self-expanding tape for windows/doors protects them from air and heavy rain while maintaining the thermal-acoustic properties over the entire depth.
It is quick to apply, adapts to surfaces and effectively seals cracks between 6 and 15 mm.
WINDOW BAND window/door sealing tape: ultra-fast installation and effective sealing
Description
The advantage of WINDOW BAND is that it saves a considerable amount of time during assembly.
With just one product it is possible to seal the three layers without the need for additional solutions. The sealing tape adapts to the surface, ensuring air and water tightness by acting as a vapour control membrane.
Compliant with EnEV and RAL requirements, also guarantees a high level of thermal and acoustic insulation.
Documents
-
Technical data sheets
-
File BIM.rfa
-
EMICODE Certificate
-
3-Part Specification - USA
WINDOW BAND
| CODE | B
[mm]
|
measures
[mm]
|
L
[m]
|
B
[in]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|---|
| WINDOW56411 | 56 | s: 4-9(MF1)/11(MF2) | 16.5 | 2.2 | 54 | 5 |
| WINDOW74411 | 74 | s: 4-9(MF1)/11(MF2) | 16.5 | 2.9 | 54 | 4 |
| WINDOW56618 | 56 | s: 6-15(MF1)/18(MF2) | 11.7 | 2.2 | 38 | 5 |
| WINDOW74618 | 74 | s: 6-15(MF1)/18(MF2) | 11.7 | 2.9 | 38 | 4 |
| WINDOW561536 | 56 | s: 15-30(MF1)/36(MF2) | 7 | 2.2 | 23 | 5 |
| WINDOW741536 | 74 | s: 15-30(MF1)/36(MF2) | 7 | 2.9 | 23 | 4 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Classification (1 ) | DIN 18542 | MF1 | - |
| Resistance to penetration of air | EN 12114 | ≤ 0,1 m³/(m²·h·50Pa) | ≤ 0.005 cfm/ft² at 50Pa |
| Resistance to heavy rain | EN 1027 | ≥ 600 Pa | - |
| Light and humidity resistance | DIN 18542 | conforme ai requisiti BG1 | - |
| Compatibility with building materials | DIN 18542 | conforme ai requisiti BG1 | - |
| Variable water vapour resistance factor (μ) | - | ca. 10 / 47 | - |
| Reaction to fire | DIN 4102-1 | class B1 | - |
| Acoustic insulation of joints RS,w 10 mm | EN ISO 10140-1 EN ISO 10140-2 EN ISO 717-1 | ≥ 59 dB | - |
| Thermal conductivity (λ) | EN 12667 | ≤ 0,05 W/(m·K) | ≤ 0.03 BTU/(h·ft·°F) |
| Resistance to temperature | - | -20 / 80 °C | -4 / 176 °F |
| Application temperature (2 ) | - | 5 / 30 °C | 41 / 86 °F |
| Storage temperature | - | 1 / 20 °C | 34 / 68 °F |
| French VOC classification | ISO 16000 | A+ | - |
| Emicode | procedura di prova GEV | EC1 plus | - |
Composition
| elastic polyurethane foam with additives |
Specifications
WINDOW BAND
Supply and installation of self-expanding sealing tape for windows/doors, Type WINDOW BAND.
Composition
- elastic polyurethane foam with additives.
Properties
-
Classification: MF1 (BG1/BGR)
-
Tightness in heavy rain [Pa]: ≥ 600
-
UV and weather resistance: compliant with MF1 class
– Compatibility with other building materials: compliant with MF1 class
-
Variable water vapour resistance factor (μ): approx. 10/47
-
Reaction to fire: class B1
-
Resistance to temperature [C°]: -20/+80
-
Application temperature [C°]: +5/+30
-
Storage temperature [C°]: +1/+20
-
French VOC classification: A+
– EMICODE (GEV test procedure): EC1 plus
Description
The application surface must be dry, free of dust and grease, and not be anti-adhesive. Surface elements must be removed so that the membrane is not damaged during application.

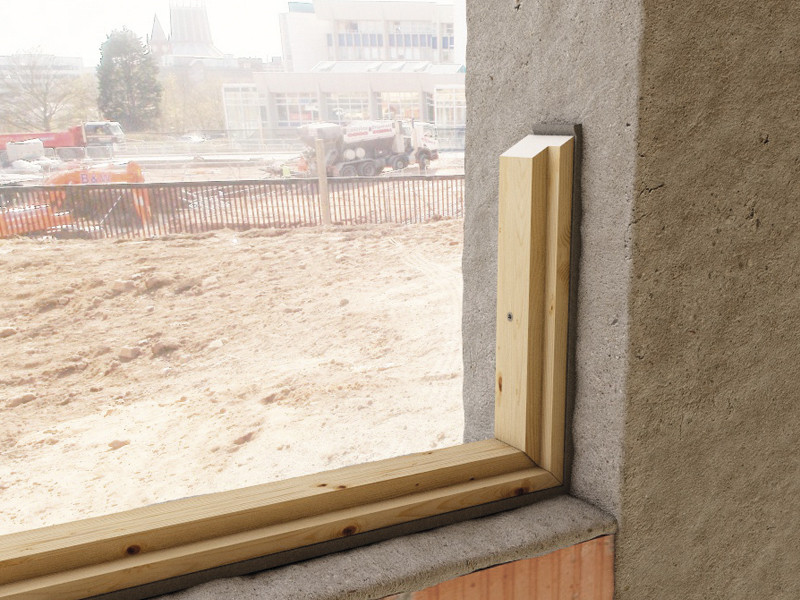

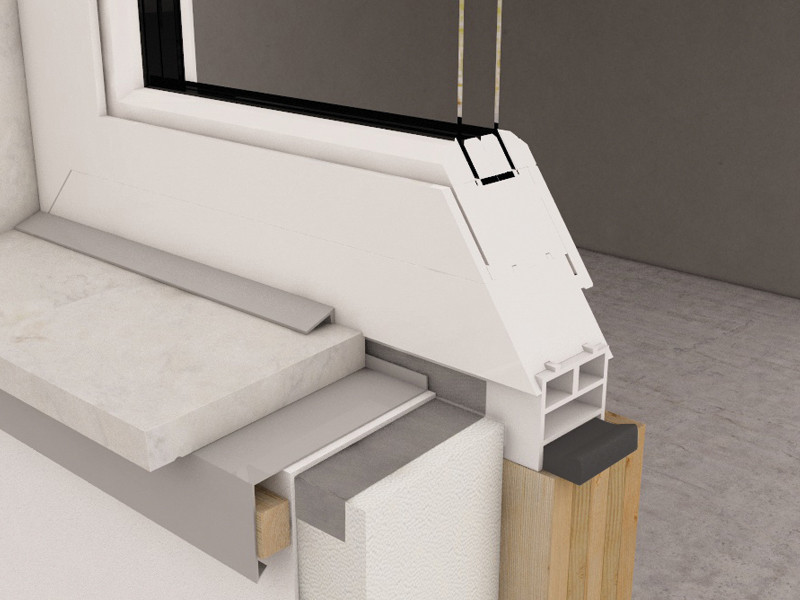

Recommended use: It seals the joints of doors and windows from air and heavy rain while maintaining the thermal-acoustic properties over the entire depth.
Seals the cracks, adapting to the surface. Ensures air and water tightness, serving as a vapour control membrane.
Installation: Apply the tape with uniform pressure over the entire surface to ensure full contact with the support.
Further details regarding installation can be found in the specific instructions provided by the supplier.
