SILENT FLOOR NET 3D

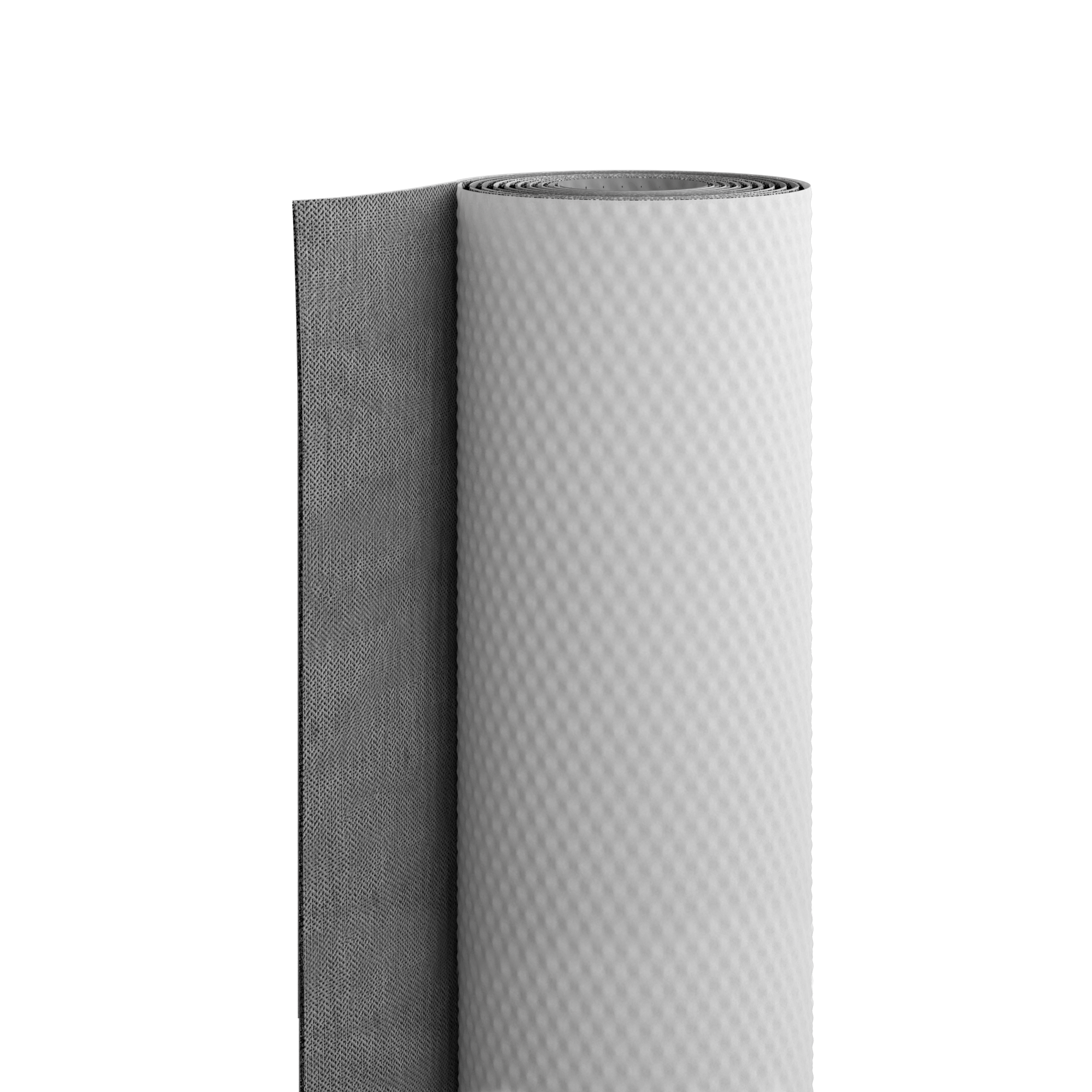

SILENT FLOOR NET 3D contains a three-dimensional mat that works like an "acoustic insulation mat" through its material and shape. It significantly reduces impact noise and improves the structure soundproofing.
The theoretical estimate of impact noise reduction through the use of this acoustic insulation mat is 29.3 dB.
APPLICATIONS

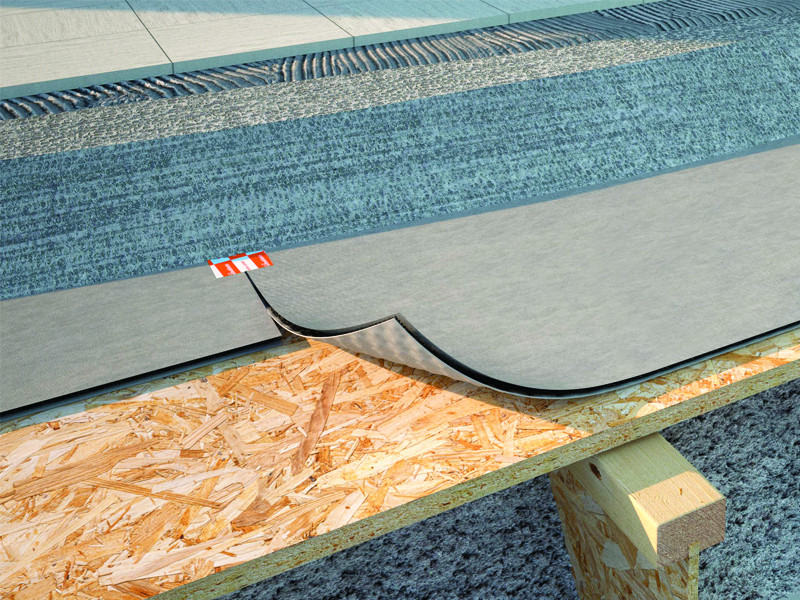

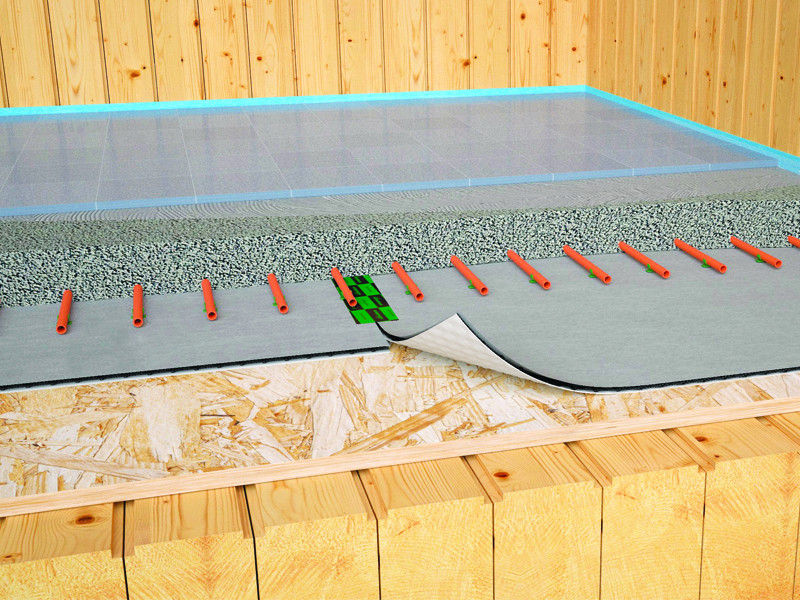

- On the floor: as a result of the three-dimensional mat structure, SILENT FLOOR NET 3D functions as a resilient layer or rather as an acoustic insulation mat with high mechanical strength
- The 3D propylene net allows SILENT FLOOR NET 3D to also be used on walls and roofs, ensuring breathability and impermeability to air and water
Description

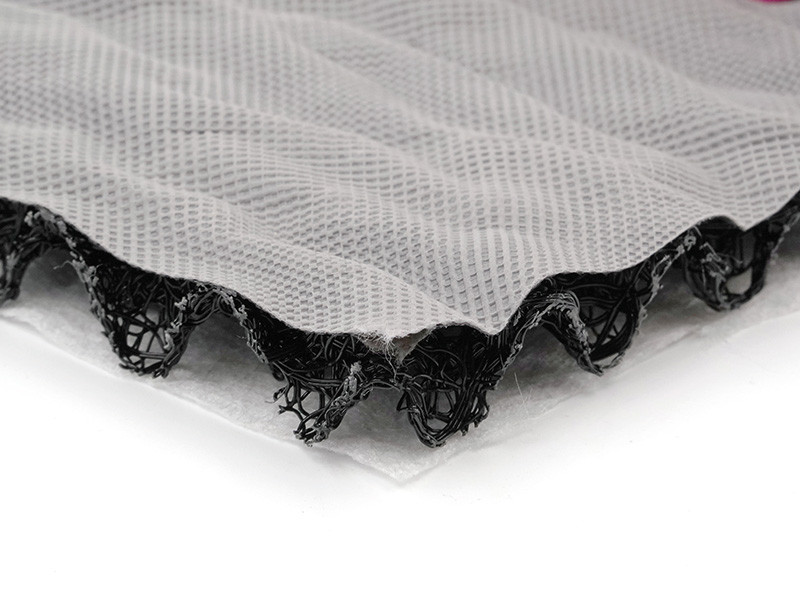

The three-dimensional mesh of SILENT FLOOR NET 3D is protected by a laminated felt. This specification ensures the product's functionality even in the case of impurities or remains from construction work.
It does not contain substances harmful for people and the environment.
Documents
-
Technical data sheets
SILENT FLOOR NET 3D
| CODE | H
[m]
|
L
[m]
|
s
[mm]
|
A
[m²]
|
pcs./pallet |
|---|---|---|---|---|---|
| SILTNET20 | 1 | 16 | 20 | 16 | - |
Specifications
SILENT FLOOR NET 3D
Supply and installation of three-dimensional polypropylene mat, Type 3D NET.
Composition
From top layer to bottom layer:
- 3-dimensional PP mat
Properties
-
Mass per unit area [g/m²]: 350
-
Thickness [mm]: 7.5
-
Tensile strength MD/CD [N/50mm]: 1,3/0,5
-
Elongation MD/CD [%]: 95/65 %
-
Thermal resistance [C°]: -40/80
-
Reaction to fire: class F
-
Density ρ [kg/m^3]: 35
-
UV stability: 3 months
-
Exposure to weather: 4 weeks
-
Variation of the sound reduction index ΔRw [dB]: 1
-
Global sound intensity variation from rain impact noise ΔLiA [dB]: 4
Description
Three-dimensional structure made of continuous polypropylene filaments, specifically designed to dampen noise generated by rain and hail on metal roofing systems.
It creates a separating and drainage layer that also promotes ventilation beneath the covering.
Installation
Further details regarding installation can be found in the specific instructions provided by the supplier.
