SILENT WALL BYTUM SA
Suitable for plasterboard partition walls and buildings soundproofing SILENT WALL BYTUM SA is a soundproofing and waterproofing bitumen sheet.
With its high surface mass (5 kg/m²), the membrane is able to increase the overall surface mass of the stratigraphy, significantly improving its acoustic performance.
APPLICATIONS

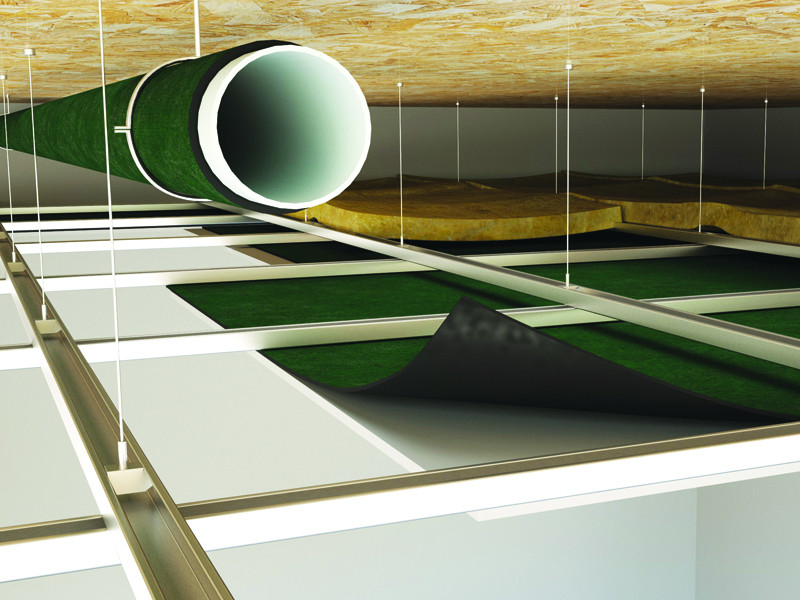

- It can be used on both horizontal and vertical surfaces, indoors and outdoors.
- Because of its fully adhesive surface, it can be installed without mechanical fasteners, which could interfere with acoustic performance.
- The pre-cut liner in the middle makes installation even easier
- Self-adhesive: the pre-cut removable film makes the membrane easier to install
Impermeable to water and air, it is composed of elastoplastomeric bitumen that does not contain lead or harmful substances.
Tests carried out in the laboratory of the University of Padua in accordance with EN ISO 10140-2 measured the soundproofing power of SILENT WALL BYTUM SA according to a precise stratigraphy.
Documents
-
Technical data sheets
-
Technical Manual
SILENT WALL BYTUM SA
| CODE | g/m² | H
[m]
|
L
[m]
|
s
[mm]
|
A
[m²]
|
pcs./pallet |
|---|---|---|---|---|---|---|
| SILWALLSA | 5000 | 1 | 8.5 | 4 | 8.5 | 24 |
Specifications
SILENT WALL BYTUM SA
Supply and installation of self-adhesive bituminous soundproofing and waterproofing membrane, Type SILENT WALL BYTUM SA.
Composition
From top layer to bottom layer:
-
non-woven PP fabric
-
waterproofing membrane made of elastoplastomeric bitumen
-
adhesive
-
removable silicone film
Properties
-
Thickness [mm]: 4
-
Density ρ [kg/m^3]: 1250
-
Surface mass m [kg/m^2]: 5
-
Thermal conductivity λ [W/m·K]: 0.17
-
Water vapour resistance factor μ: 100000
-
Water vapour transmission Sd [m]: 400
-Reaction to fire: class E
Description
Self-adhesive elastoplastomeric bitumen membrane, free from lead and harmful substances, designed to reduce airborne noise transmission thanks to its high surface mass. The high density of the sheet increases the overall mass of the wall system, enhancing its acoustic performance. Thanks to its self-adhesive side, installation of the membrane is fast and precise in both horizontal and vertical applications and without mechanical fastening.
Installation
The application surface must be dry, free of dust and grease, and not be anti-adhesive. Surface elements must be removed so that the membrane is not damaged during application. Remove the pre-cut liner and apply the membrane directly to the substrate, without the need for mechanical fasteners. Further details regarding installation can be found in the specific instructions provided by the supplier.
