COLUMN

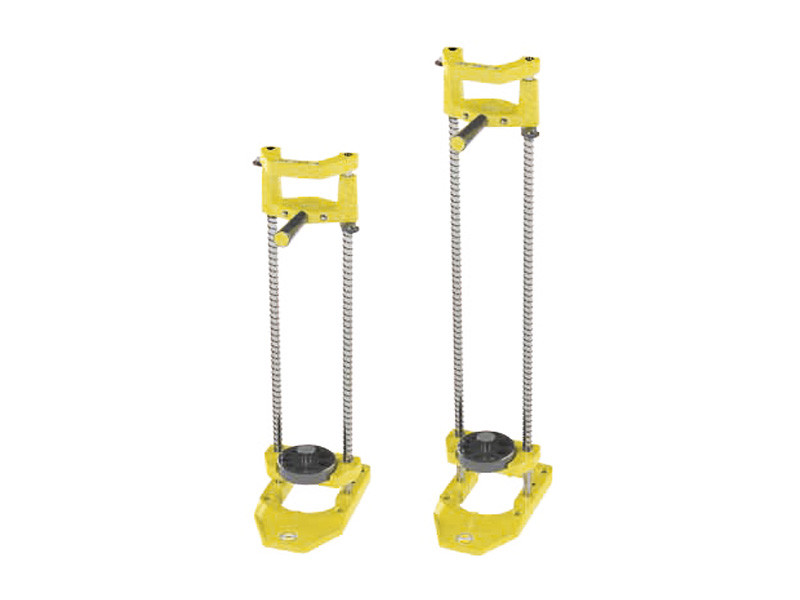

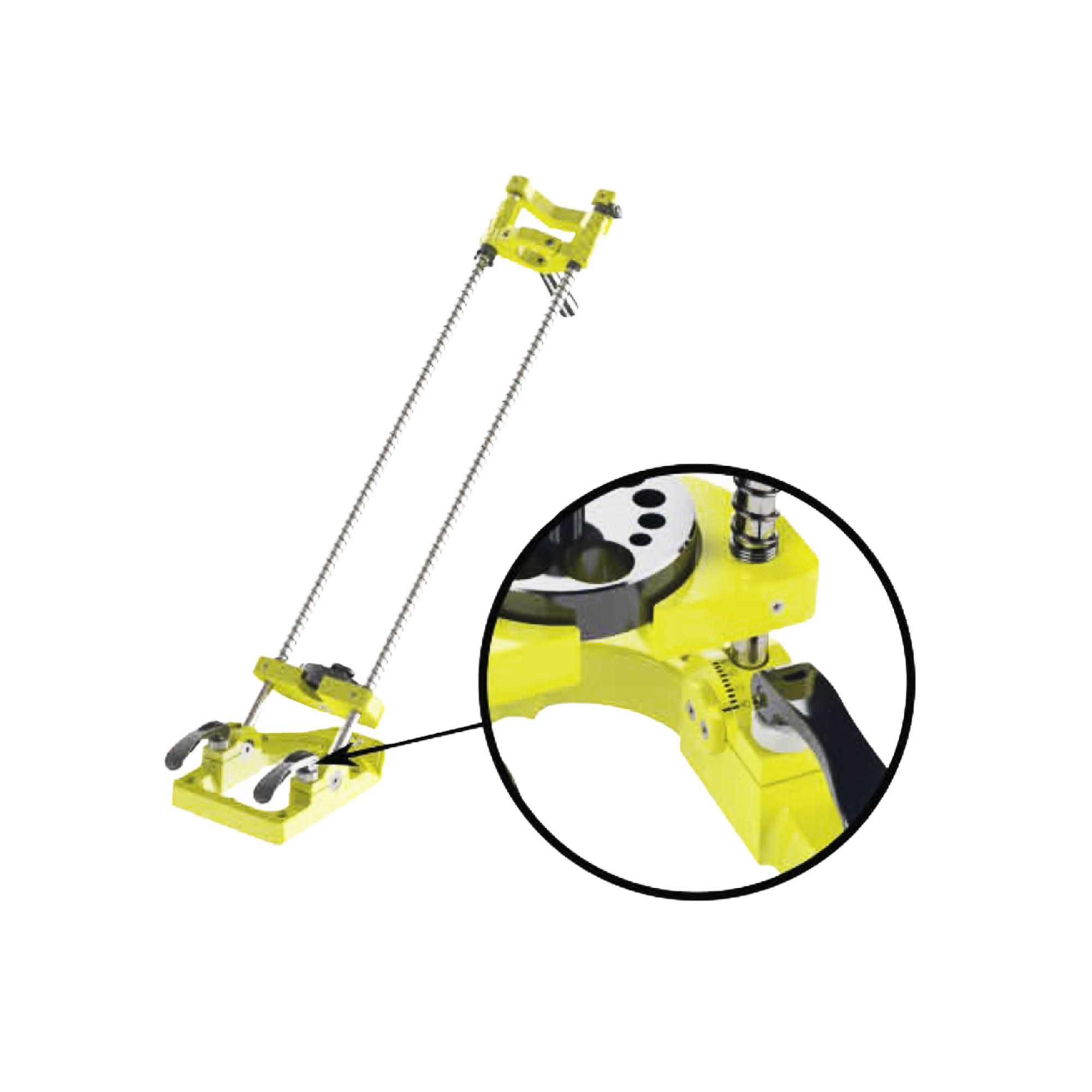

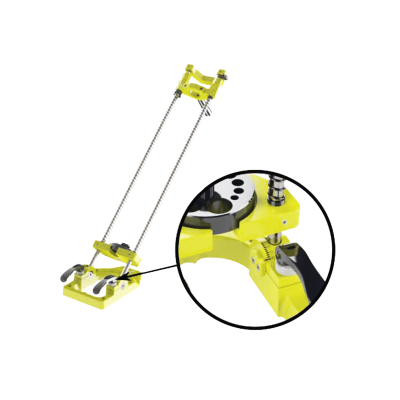

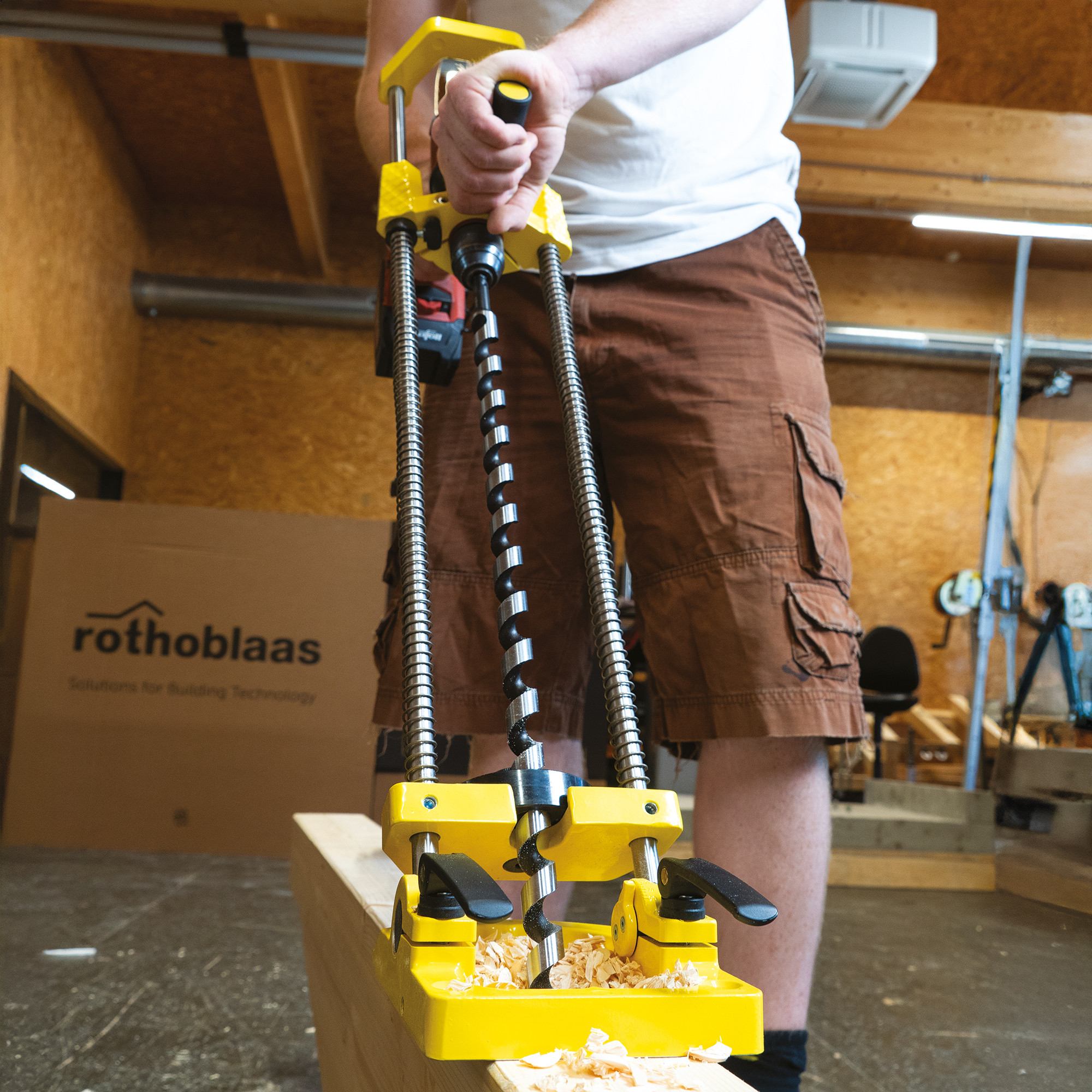

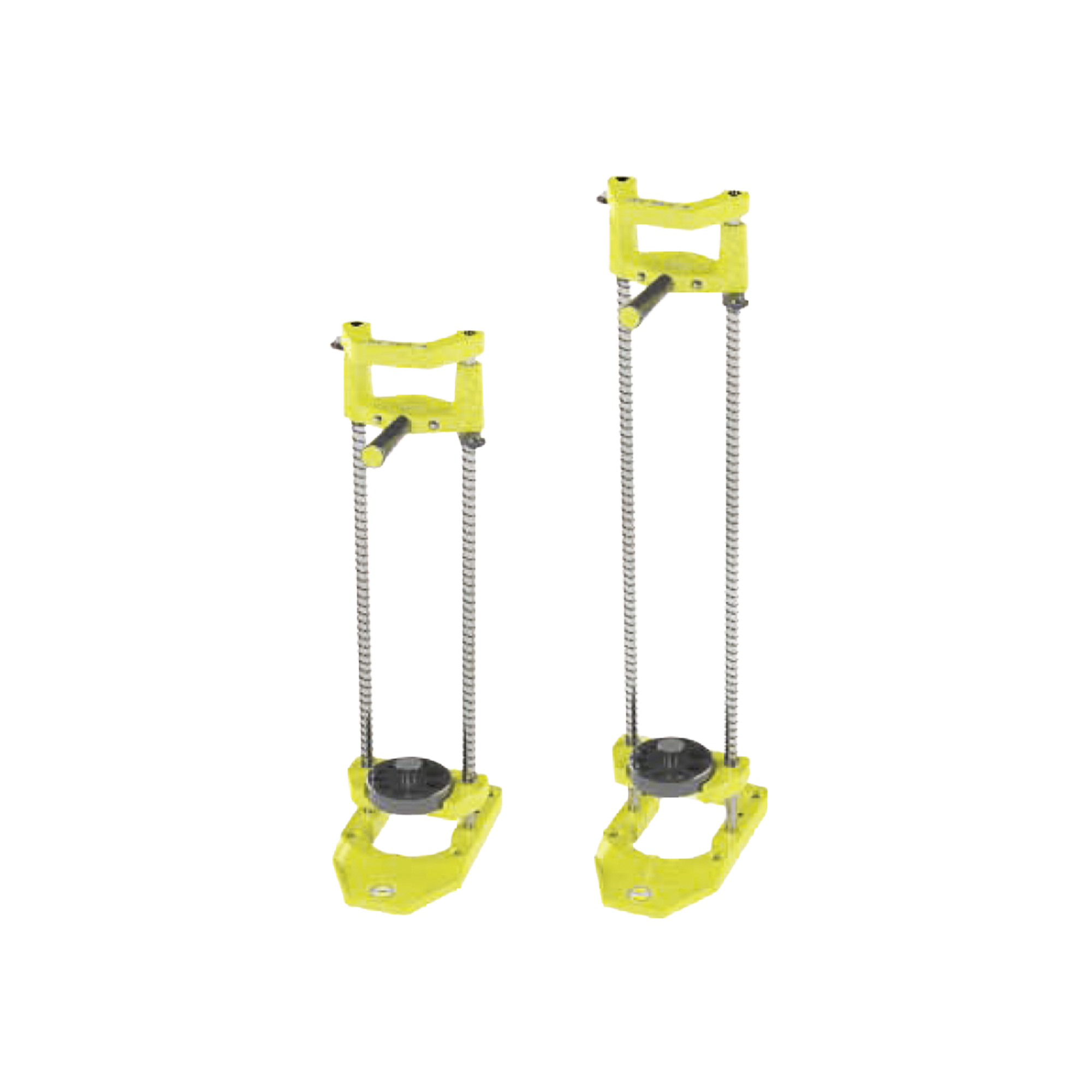

RIGID AND INCLINED DRILLING COLUMN

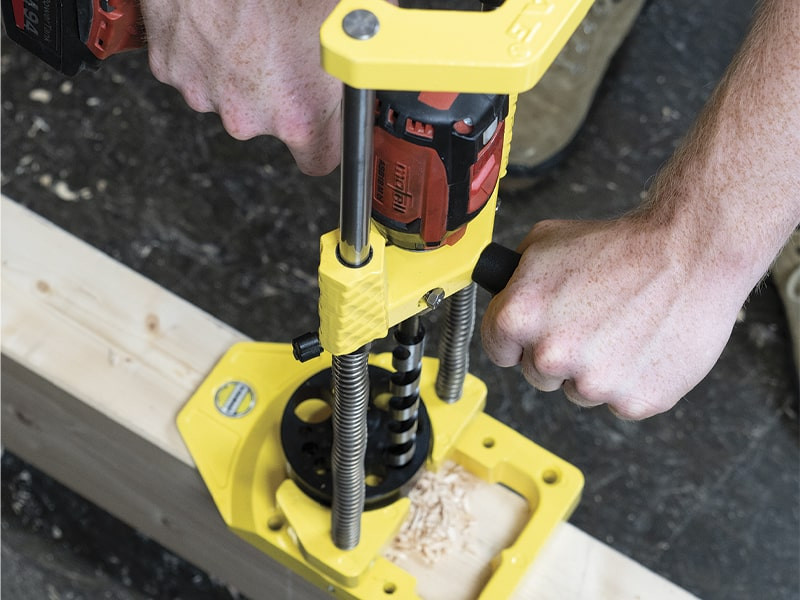

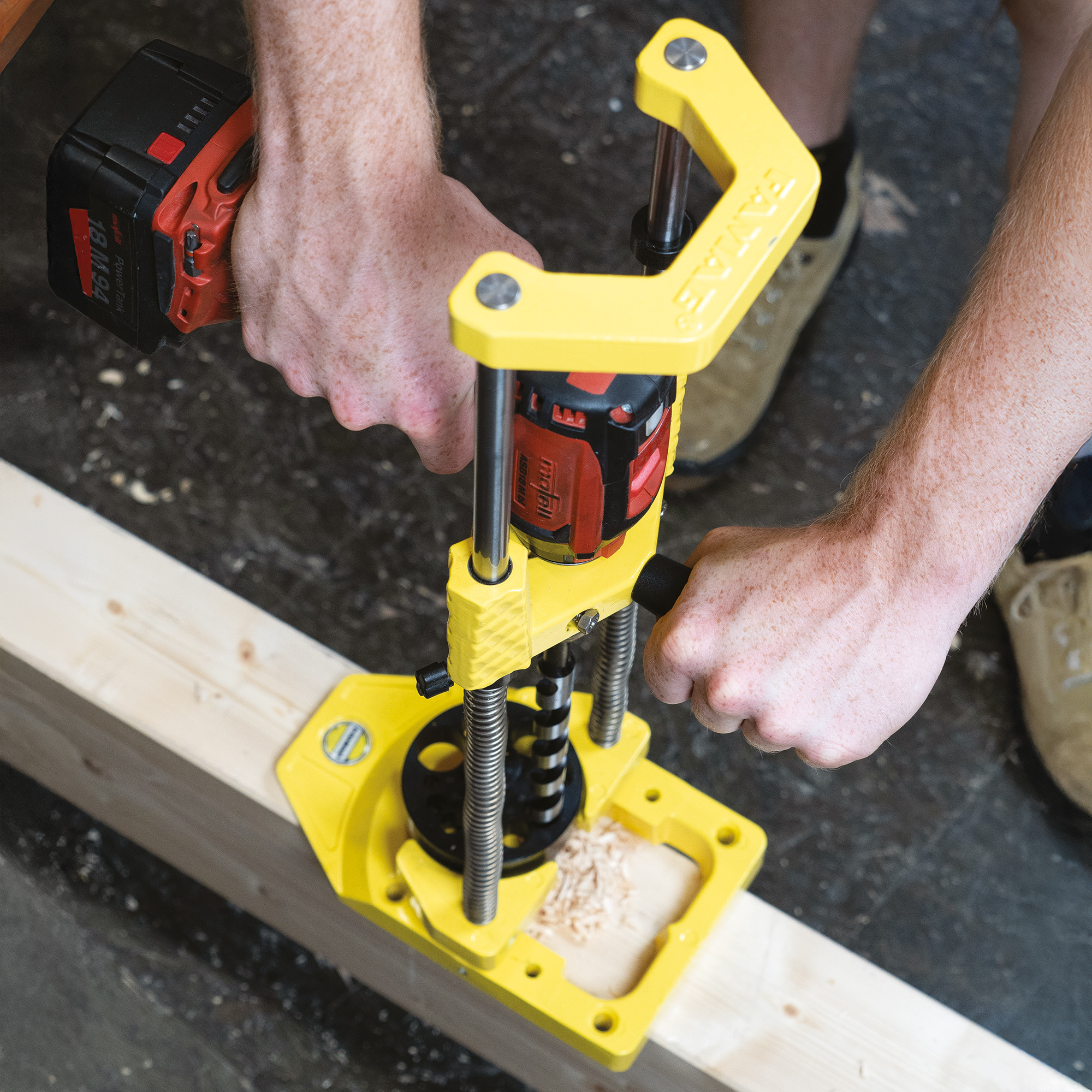

• Thanks to adjustable depth stops, a precise guide plate and an additional stabilisation element, holes are always made at the perfect angle
• Made of die-cast aluminium and stainless steel – suitable for all drills with a 43 mm collar. Compatible with bits Ø 8, 10, 12, 14, 16, 18, 20, 22, 24, 26 mm
• The new universal adapter solves compatibility issues between COLUMN systems, thanks to its stable hexagonal shank, ensuring secure clamping across different machines
Documents
-
Technical data sheets
COLUMN
| CODE | version | H
[mm]
|
pcs. |
|---|---|---|---|
| F1403460 | WITHOUT CLAMPING SET (METRIC) | 460 | 1 |
| F1403650 | WITHOUT CLAMPING SET (METRIC) | 650 | 1 |
| F1403462 | WITH CLAMPING SET (METRIC) | 460 | 1 |
| F1403652 | WITH CLAMPING SET (METRIC) | 650 | 1 |
| F1403240 | WITHOUT CLAMPING SET (IMPERIAL) | 460 | 1 |
| CODE | description | pcs. |
|---|---|---|
| F1402000 | CLAMPING SET | 1 |
| F1400902 | GUIDING PLATE IMPERIAL SIZES: 3/8"; 7/16"; 1/2"; 9/16"; 5/8"; 11/16"; 3/4"; 13/16"; 15/16"; 1" | 1 |
