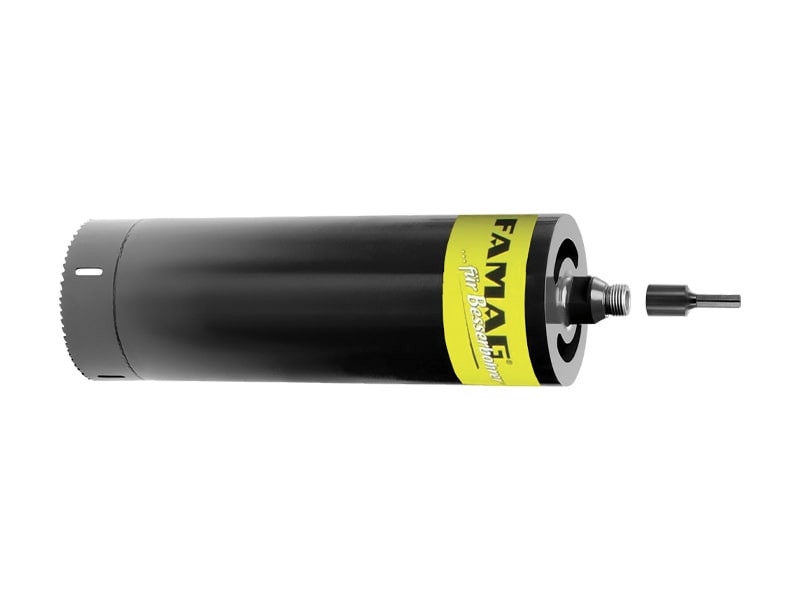

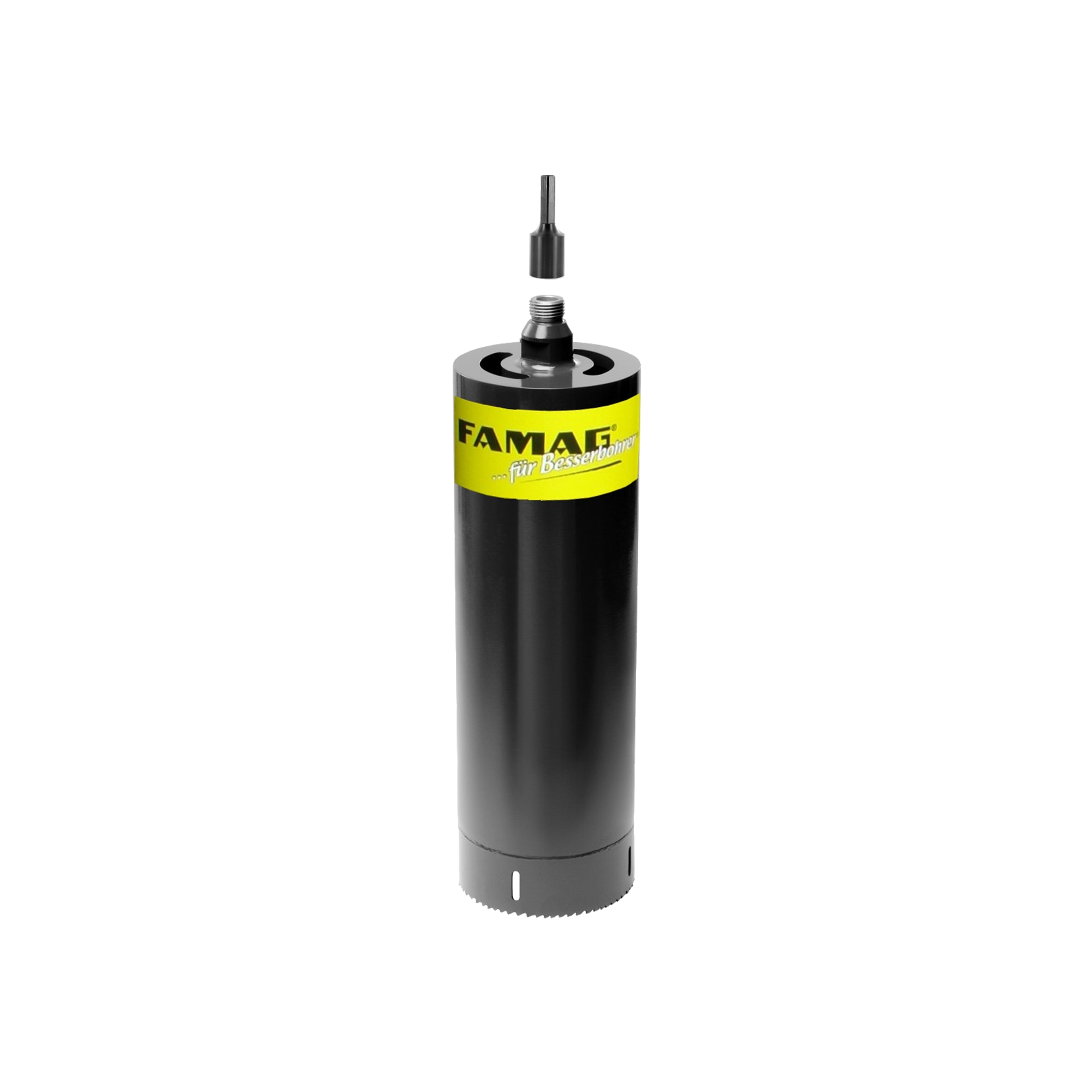

HSS

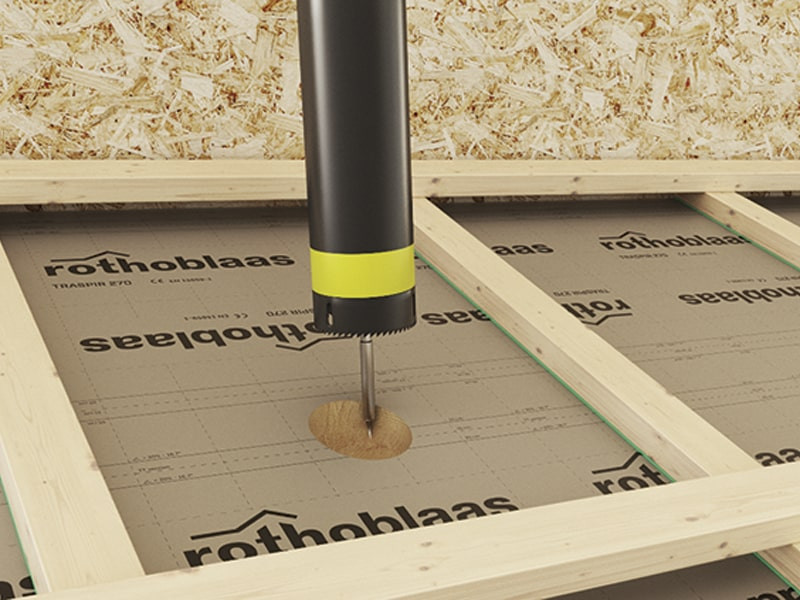

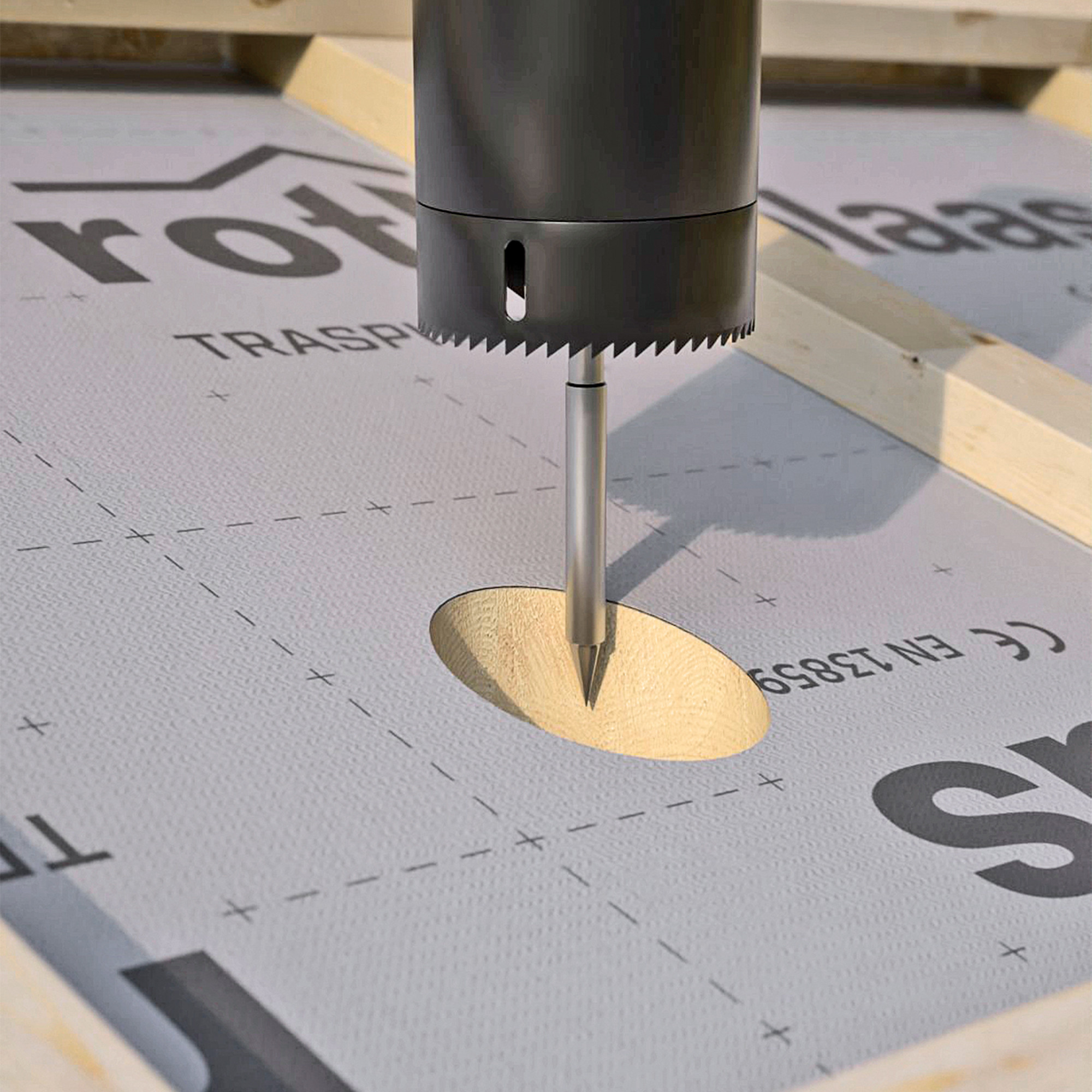

FOR CUTTING VENTILATION DUCTS IN TRUSSES
It conveniently cuts all insulation materials and timber from trusses or walls. With a powerful hand drill, the hole cutter can be used freehand without additional tools. Approx. 500 rpm
Documents
-
Technical data sheets
HSS
| CODE | d
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|
| F2170086 | 85 | 300 | 1 |
| F2170111 | 110 | 300 | 1 |
| F2170130 | 130 | 300 | 1 |
| F2170152 | 152 | 300 | 1 |
| F2170170 | 170 | 300 | 1 |
| F2170200 | 200 | 300 | 1 |
| CODE | description | pcs. |
|---|---|---|
| F2170030 | GUIDE PIN WITH DRILLING HEAD | 1 |
| F2170010 | GUIDE PIN ONLY | 1 |
| F2170005 | HEXAGONAL CONNECTOR FOR HSS HOLE CUTTER | 1 |
| F3690002 | DRILLING HEAD ONLY | 1 |
