New
LIGNOLOC
NAILGUN FOR NAILS IN TIMBER LIGNOLOC
Made from compressed beech wood with patented lignin welding, LIGNOLOC® nails deliver high tensile and shear strength without the use
of metal. They offer a reduction in CO₂ emissions by up to 66% compared to conventional nails.
LIGNOLOC® nails are ETA-approved in Europe and IAPMO/ASTM-certified in the United States. They are suitable for forming secure joints between timber and timber-based panels, even in structural applications.
The nails are driven using compatible air nailguns, with no need for pre-drilling. This significantly reduces assembly time while ensuring precise installation, ideal for both prefabrication and mass production.
Documents
-
Technical data sheets
LIGNOLOC
| CODE | description | weight
[kg]
|
pcs. |
|---|---|---|---|

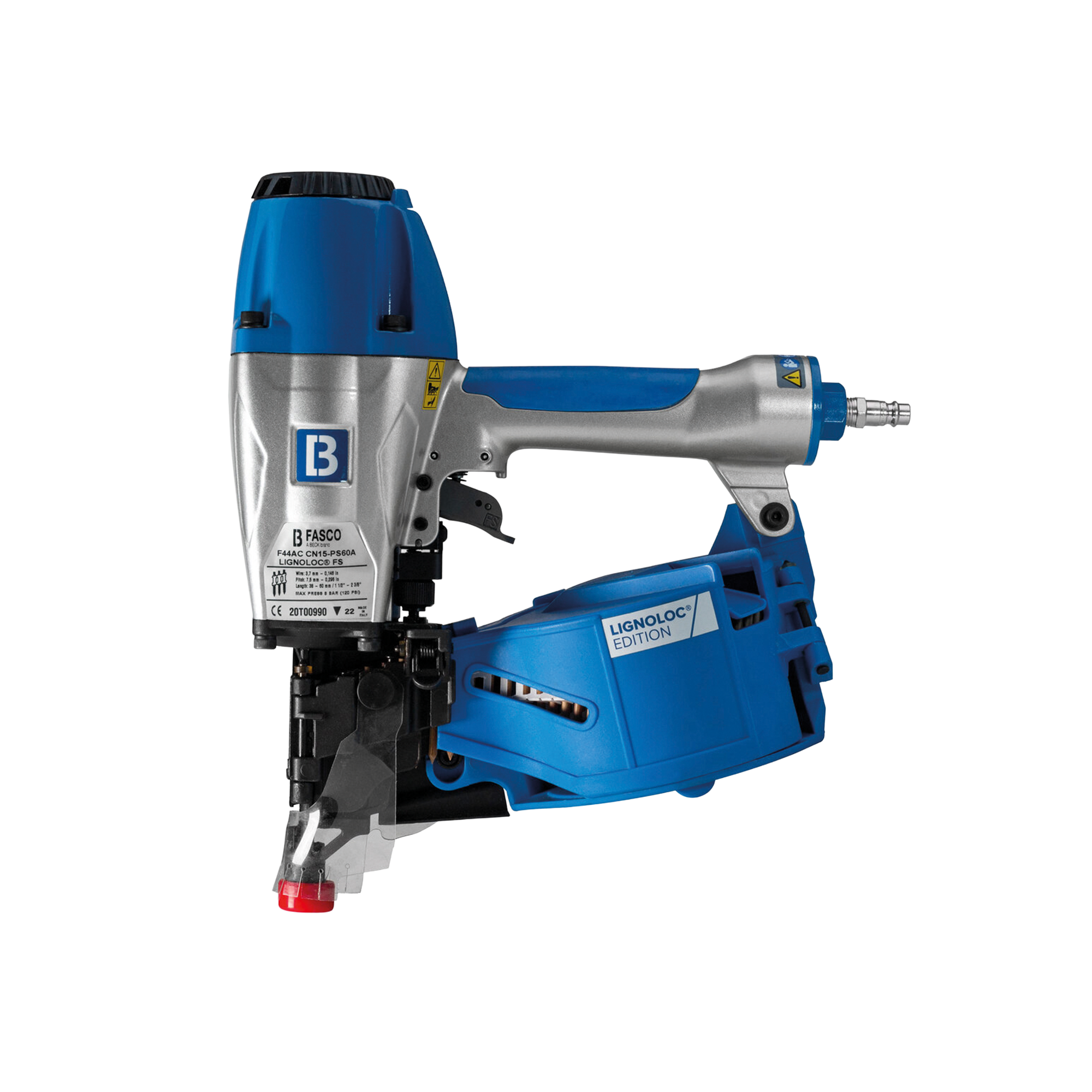

| BE1184902 | NAILGUN F44 FOR WOODEN NAILS 38 - 60 MM | - | 1 |
| BE1185101 | NAILGUN F60 FOR WOODEN NAILS 58 - 90 MM | - | 1 |
NAILS
| CODE | description | L
[mm]
|
d₁
[mm]
|
version | pcs. |
|---|---|---|---|---|---|

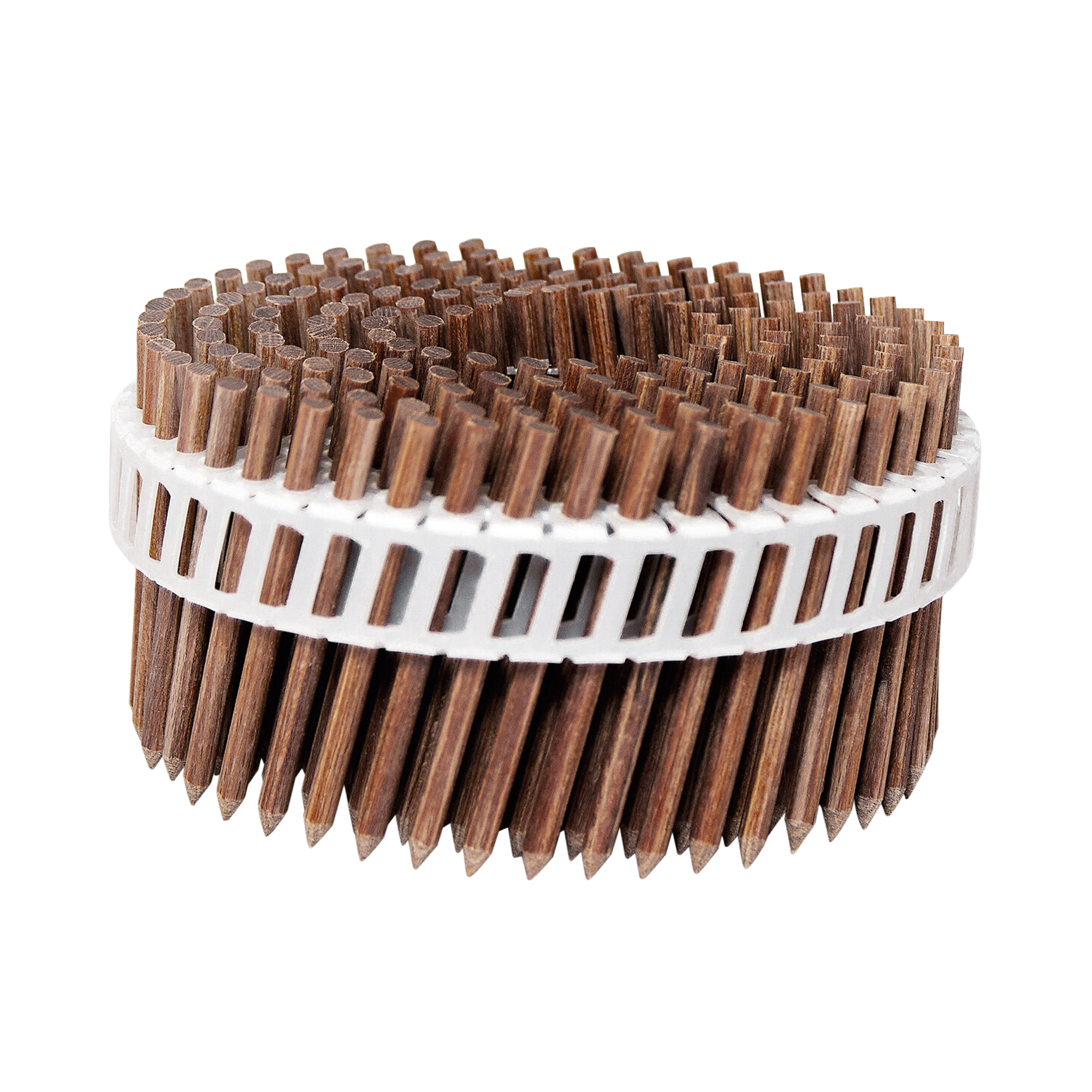

| WNAIL3738 | WOODEN COIL NAIL | 38 | 3.7 | WITHOUT HEAD | 3060 |
| WNAIL3750 | WOODEN COIL NAIL | 50 | 3.7 | WITHOUT HEAD | 3060 |
| WNAIL3755 | WOODEN COIL NAIL | 55 | 3.7 | WITHOUT HEAD | 3060 |
| WNAIL3760 | WOODEN COIL NAIL | 60 | 3.7 | WITHOUT HEAD | 3060 |
| WNAIL4765 | WOODEN COIL NAIL | 65 | 4.7 | WITHOUT HEAD | 3008 |
| WNAIL4775 | WOODEN COIL NAIL | 75 | 4.7 | WITHOUT HEAD | 2400 |
| WNAIL4789 | WOODEN COIL NAIL | 89 | 4.7 | WITHOUT HEAD | 2400 |

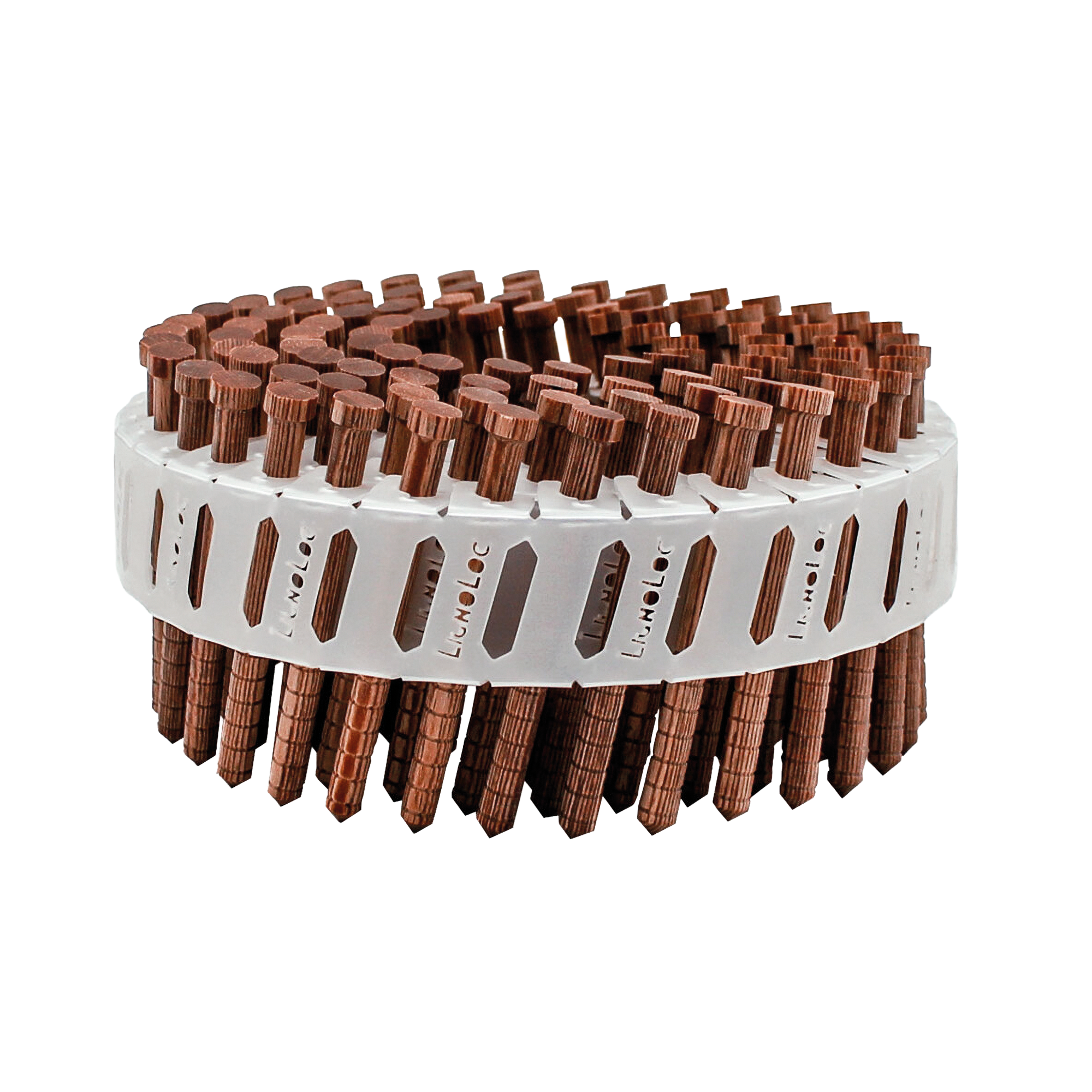

| WNAIL4758H | WOODEN COIL NAIL | 58 | 4.7 | WITH HEAD | 1000 |
| WNAIL4778H | WOODEN COIL NAIL | 78 | 4.7 | WITH HEAD | 1000 |
| WNAIL5365 | WOODEN COIL NAIL | 65 | 5.3 | WITHOUT HEAD | 3008 |
| WNAIL5390 | WOODEN COIL NAIL | 90 | 5.3 | WITHOUT HEAD | 2400 |
| WNAIL5375 | WOODEN COIL NAIL | 75 | 5.3 | WITHOUT HEAD | 2400 |
