JIG VGU
JIG VGU TEMPLATES JIG VGU

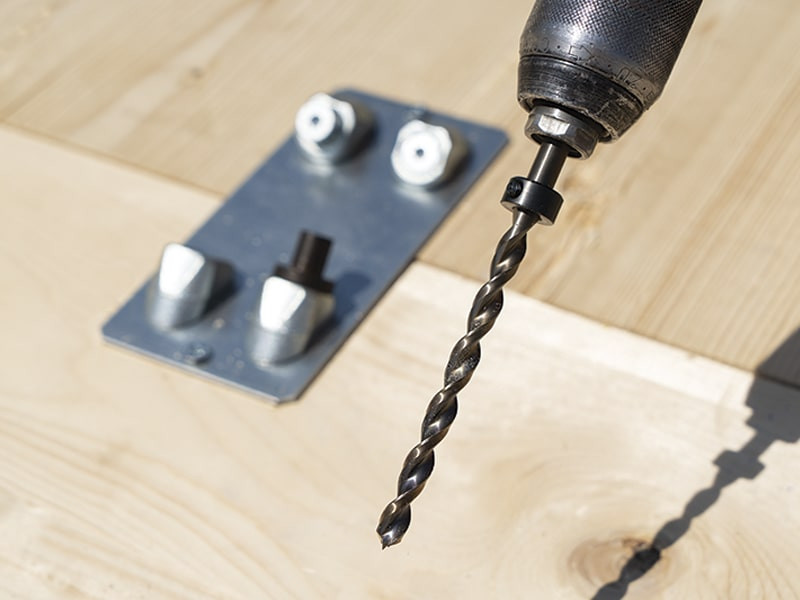

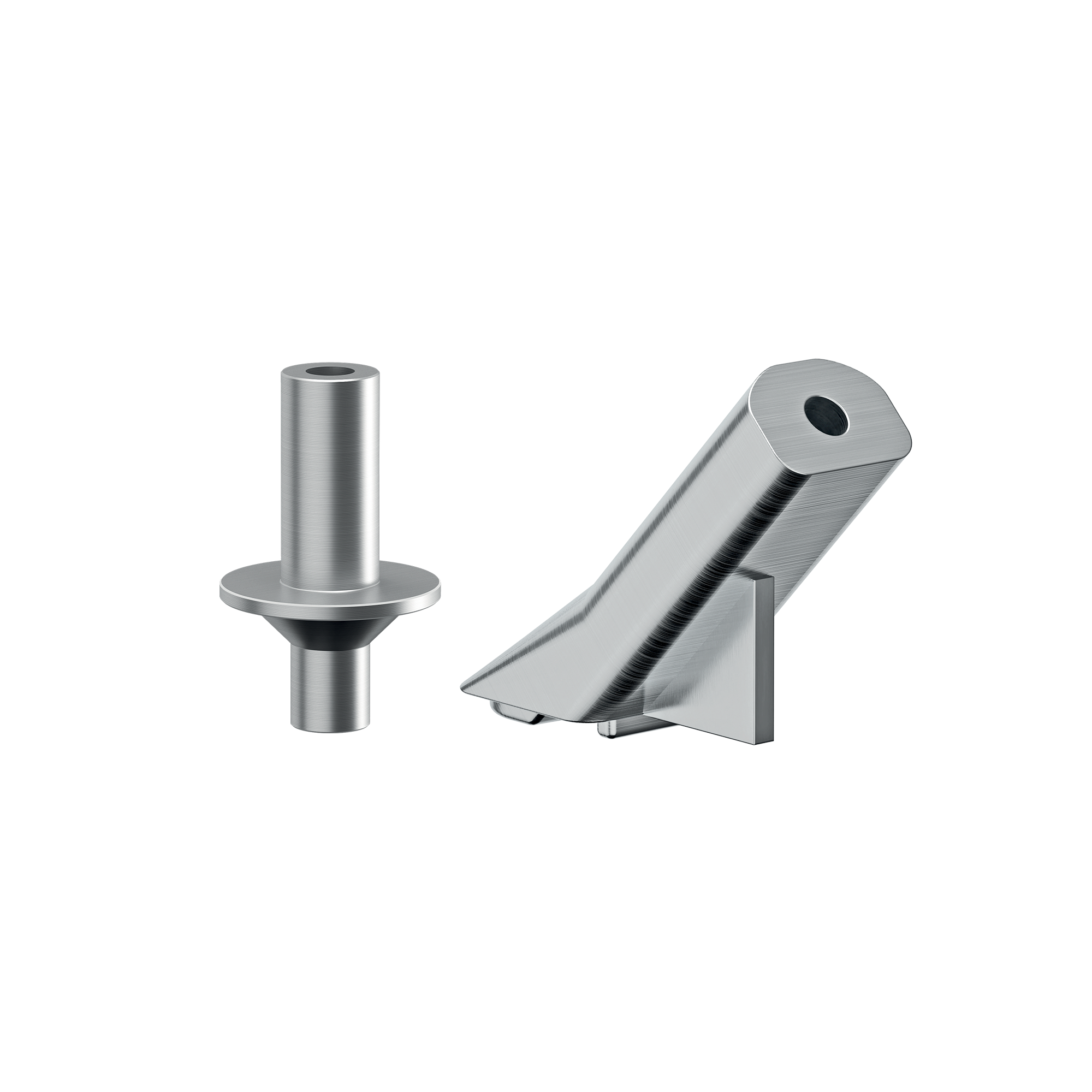

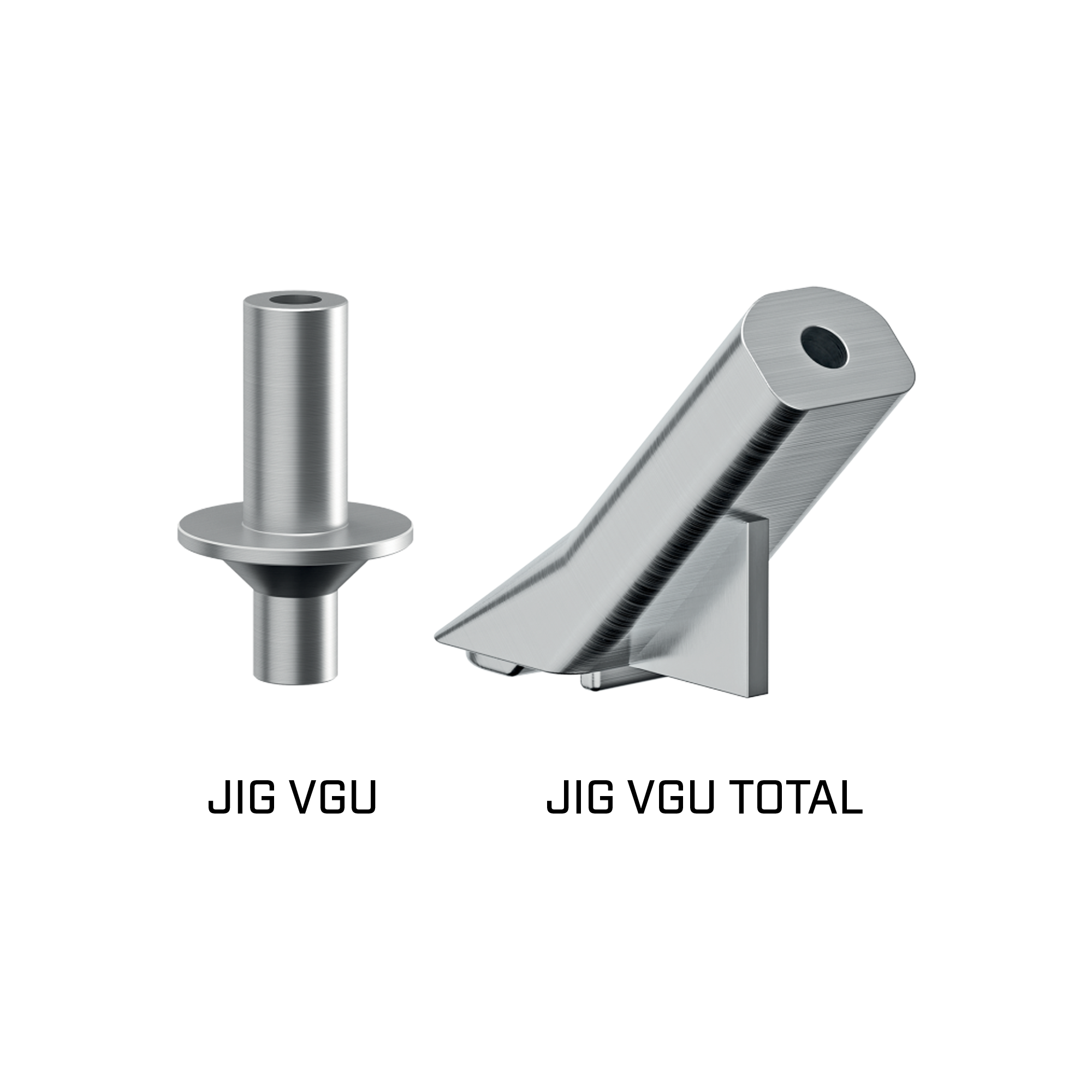

The JIG VGU and JIG VGU TOTAL templates are essential tools for pre-drilling or pilot hole creation for the precise and aligned installation of 9, 11 and 13 mm VGS screws in their respective VGU washers.

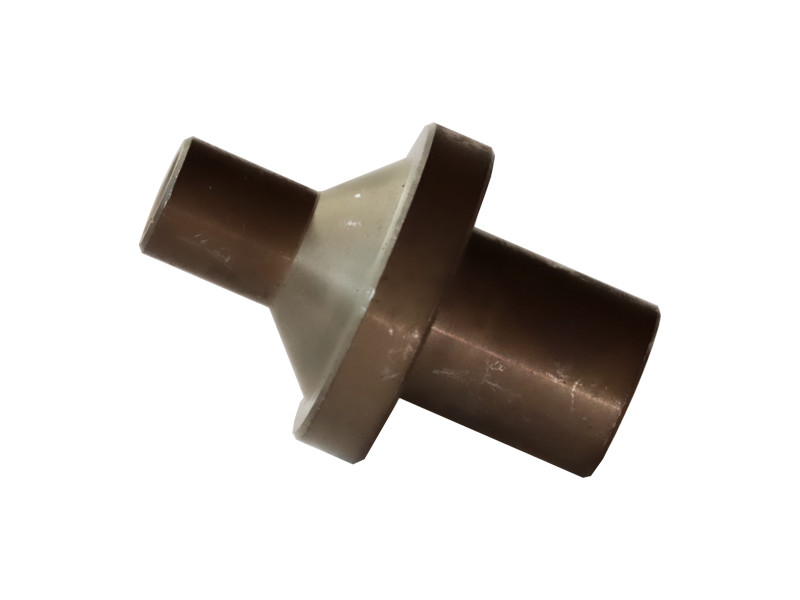

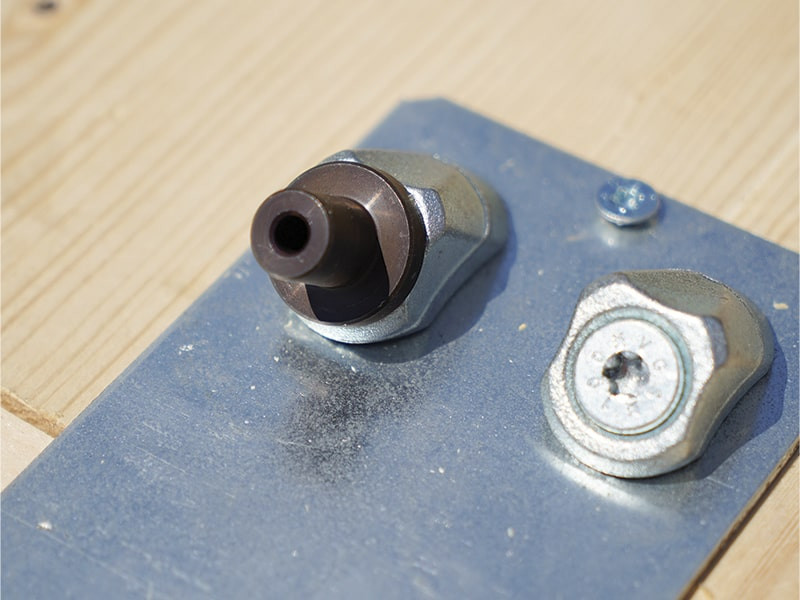

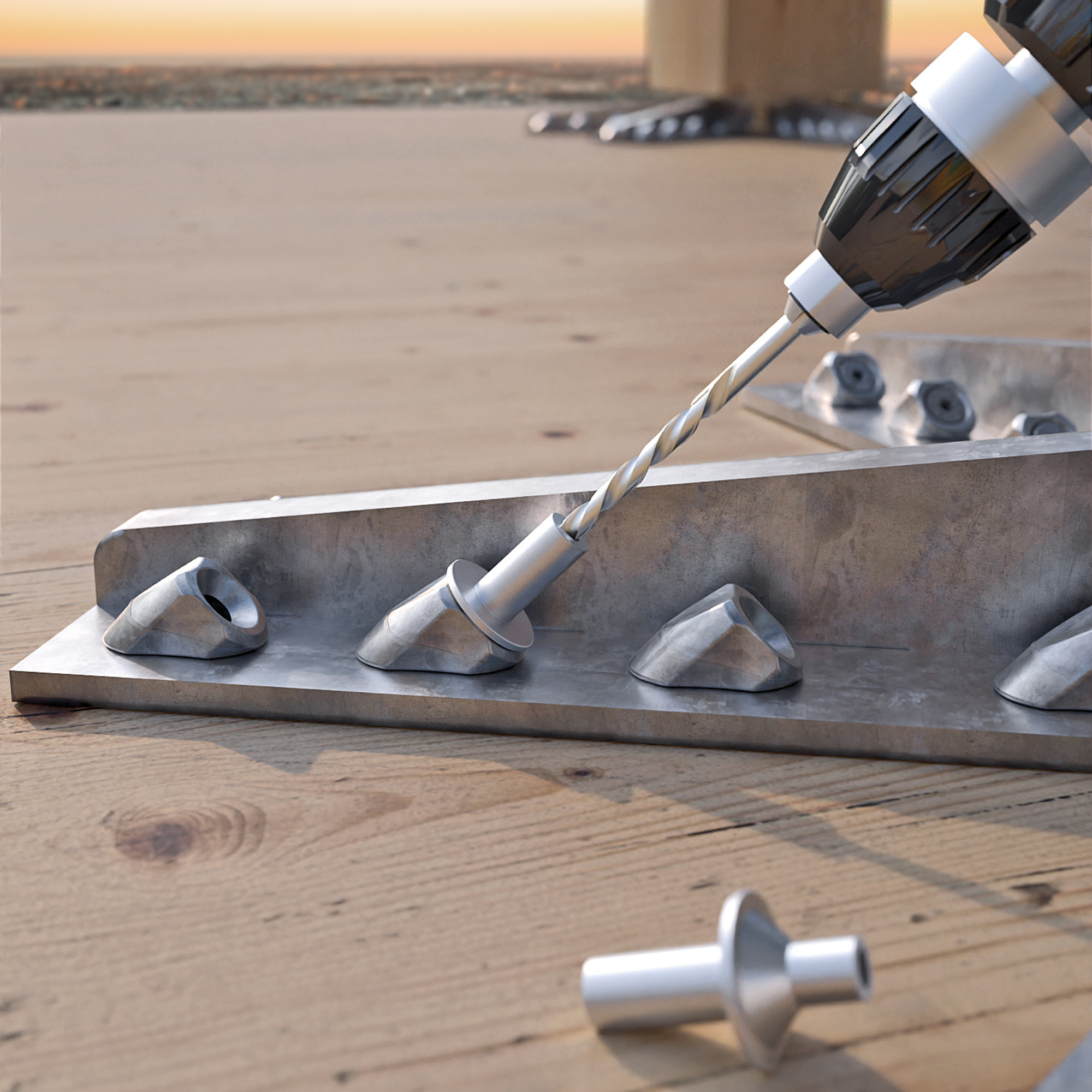

JIG VGU: for exclusive use with the VGU washer, essential in all applications where it is welded to the plate (e.g. SPIDER)

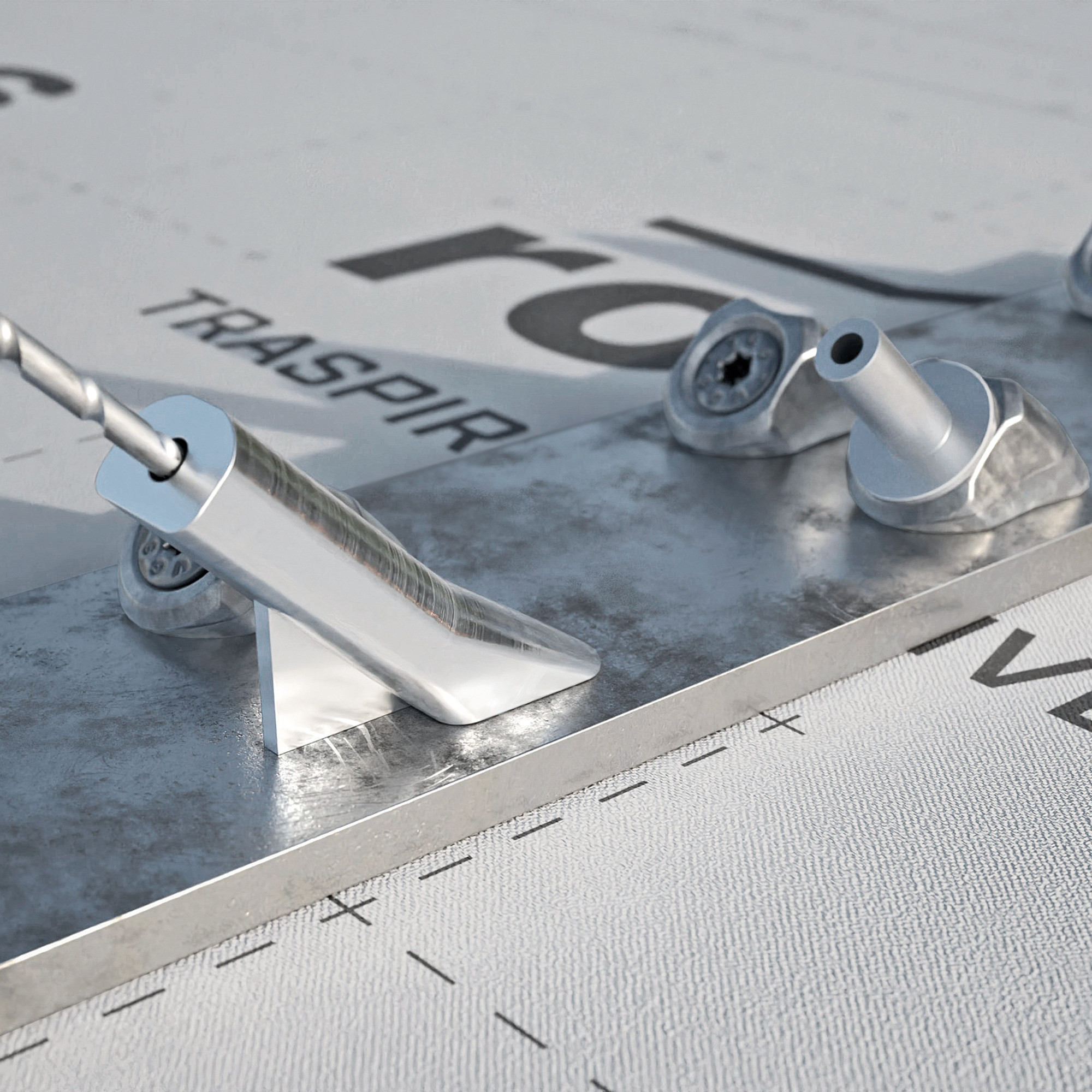

JIG VGU TOTAL is the evolution of the system: it does not require the VGU washer to create the pilot hole, making it ideal even in awkward
situations or with limited space
Documents
-
Technical data sheets
JIG VGU
| CODE | version | d
[mm]
|
pcs. |
|---|---|---|---|
| JIGVGU945 | VGU945 | 5 | 1 |
| JIGVGU1145 | VGU1145 | 6 | 1 |
| JIGVGU1345 | VGU1345 | 8 | 1 |
JIG VGU TOTAL
| CODE | description | pcs. |
|---|---|---|
| JIGVGU945T | PRE-DRILL JIG VGU945 | 1 |
| JIGVGU1145T | PRE-DRILL JIG VGU1145 | 1 |
| JIGVGU1345T | PRE-DRILL JIG VGU1345 | 1 |
VGU
| CODE | d
[mm]
|
pcs. |
|---|---|---|
| F2108005 | 5 | 10 |
| F2108006 | 6 | 10 |
| F2108008 | 8 | 10 |
