JIG VGZ 45°: DRILLING JIG FOR WOOD FOR UNIVERSAL 45° SCREW DRIVING IN CLT, LVL AND SOLID TIMBER JIG VGZ 45°
45° screw jig: precise connections in beams, floors, CLT and LVL without measuring

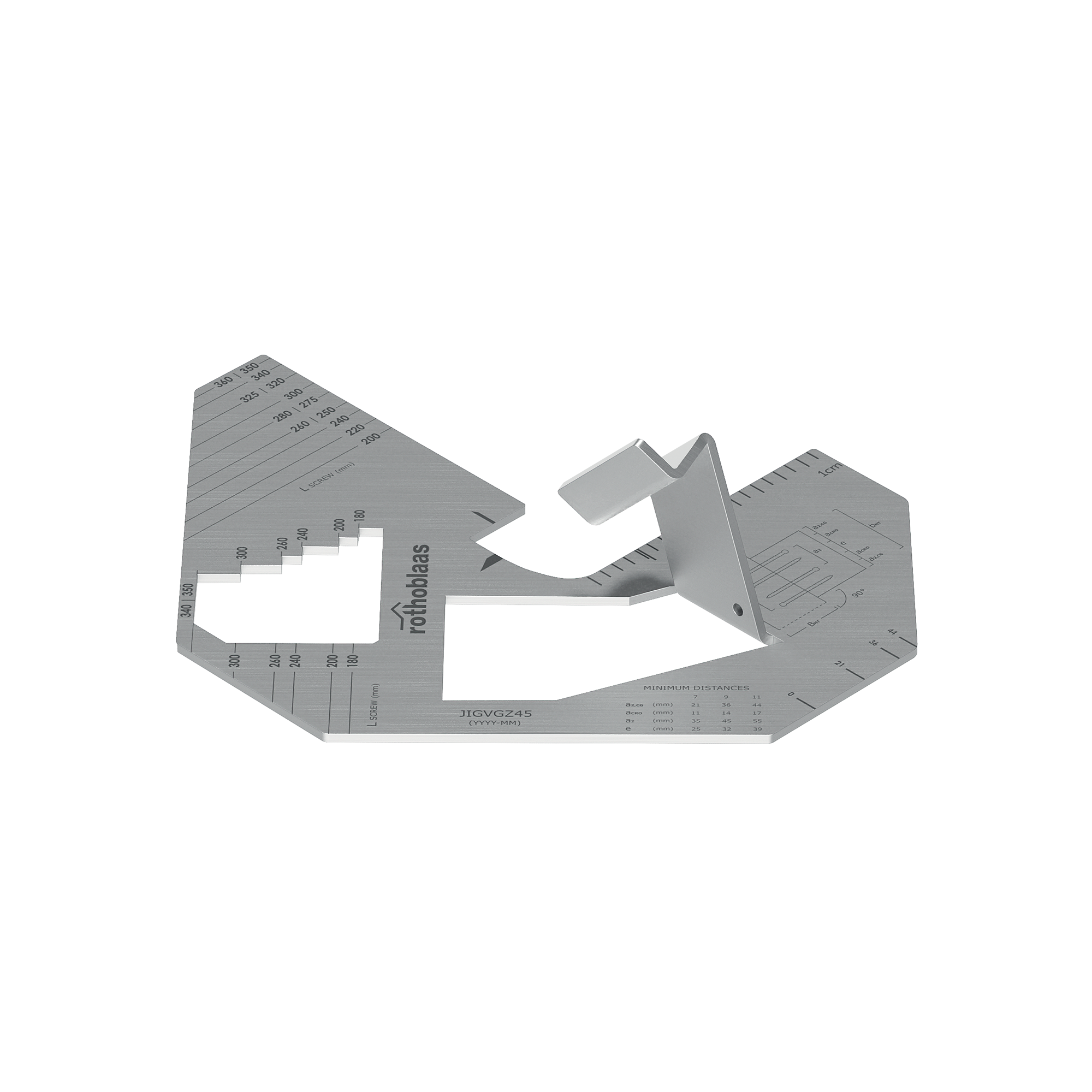

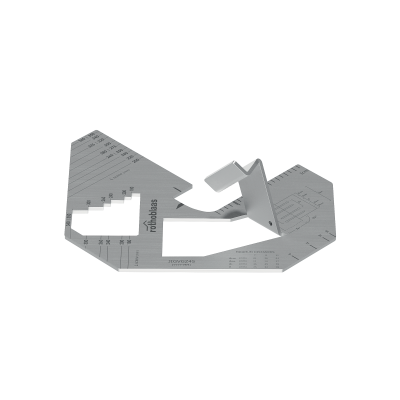

JIG VGZ 45° is the Rothoblaas jig for driving any type of screw at 45° quickly and accurately. Thanks to the integrated markings, it can be used to create the main connections typically used in timber construction without repeated measuring, reducing installation times on site.
Made from 3 mm stainless steel, it is robust and durable. Ideal for timber-to-timber connections in solid timber, CLT and LVL.

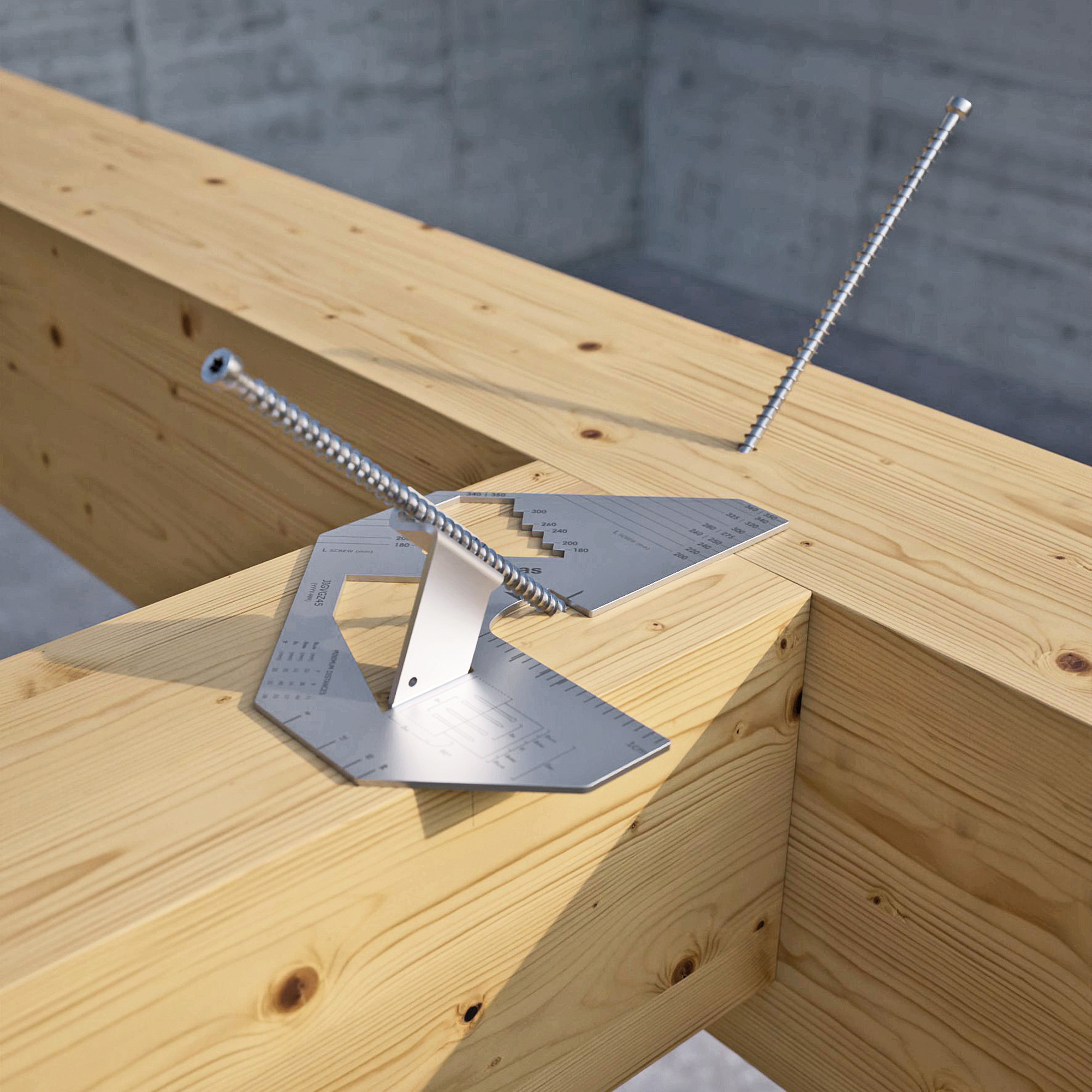

45 degree timber joints and CTC connections: JIG VGZ 45° applications
JIG VGZ 45° is designed for solid timber, CLT and LVL beams and floors, and is the ideal tool for use with CTC timber-to-concrete connectors. It is simple to use: position the jig at the connection point and the markings guide the screw into the correct 45° position without any further measuring.

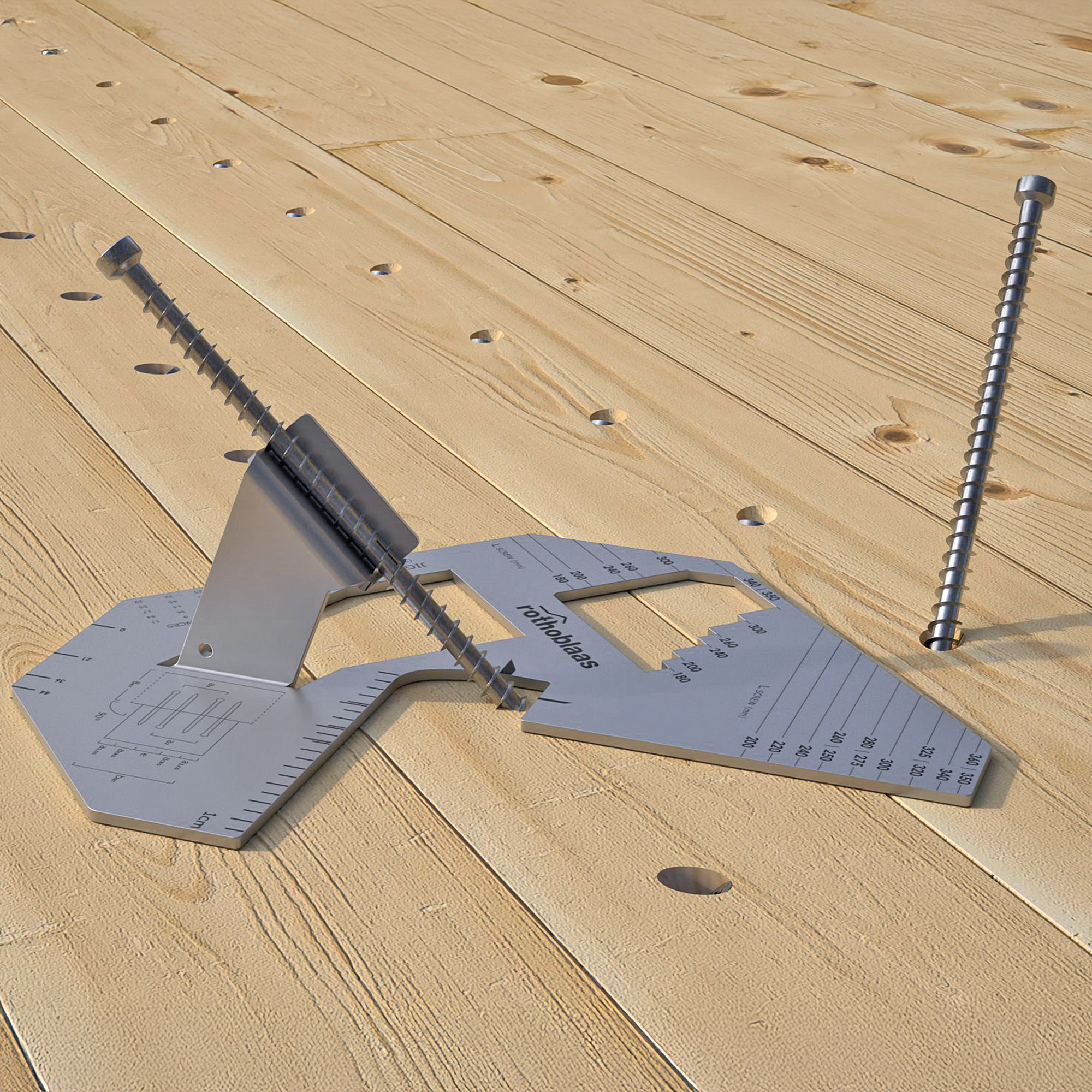

The 3 mm stainless steel profile ensures durability even on site and is suitable for all types of Rothoblaas screws used in inclined applications.
How do you drive screws at 45° into CLT and LVL without measuring?
With JIG VGZ 45°, simply place the jig on the timber element: the integrated markings indicate the exact screw positions, ensuring the correct angle for every type of joint. No additional measuring, no risk of error.
Compatible with solid timber, CLT and LVL, JIG VGZ 45° is also suitable for applications with CTC timber-to-concrete connectors, making it the most versatile woodworking jig for timber construction.
Documents
-
Technical data sheets
-
Installation manual
JIG VGZ 45°
| CODE | B
[mm]
|
L
[mm]
|
H
[mm]
|
pcs. |
|---|---|---|---|---|
| JIGVGZ45 | 210 | 253 | 67 | 1 |
