OCTOPUS

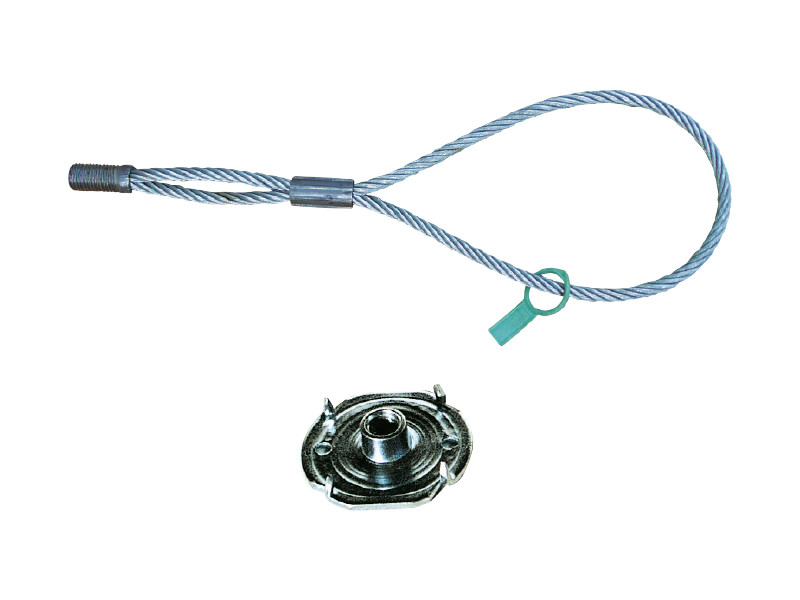

LIFTING EYEBOLT AND PERCUSSION NUT
With the OCTOPUS lifting eyebolt, moving timber elements on the construction site is made easy!
There is less wear, for greater durability, and the eyebolts can be used again. Three versions with different load capacities are available: 500, 1200 and 2000 kg. The percussion nuts for timber are available in three different diameters (18, 22 and 24 mm), marked by colour.

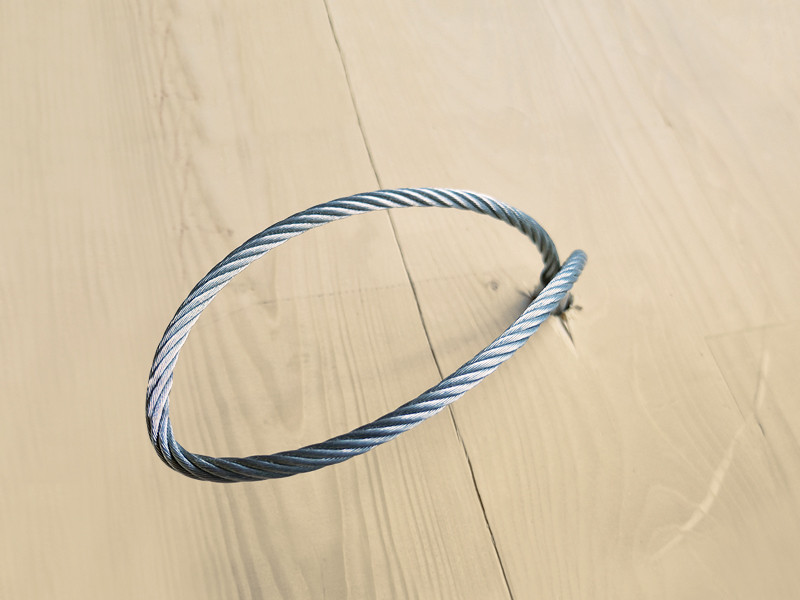

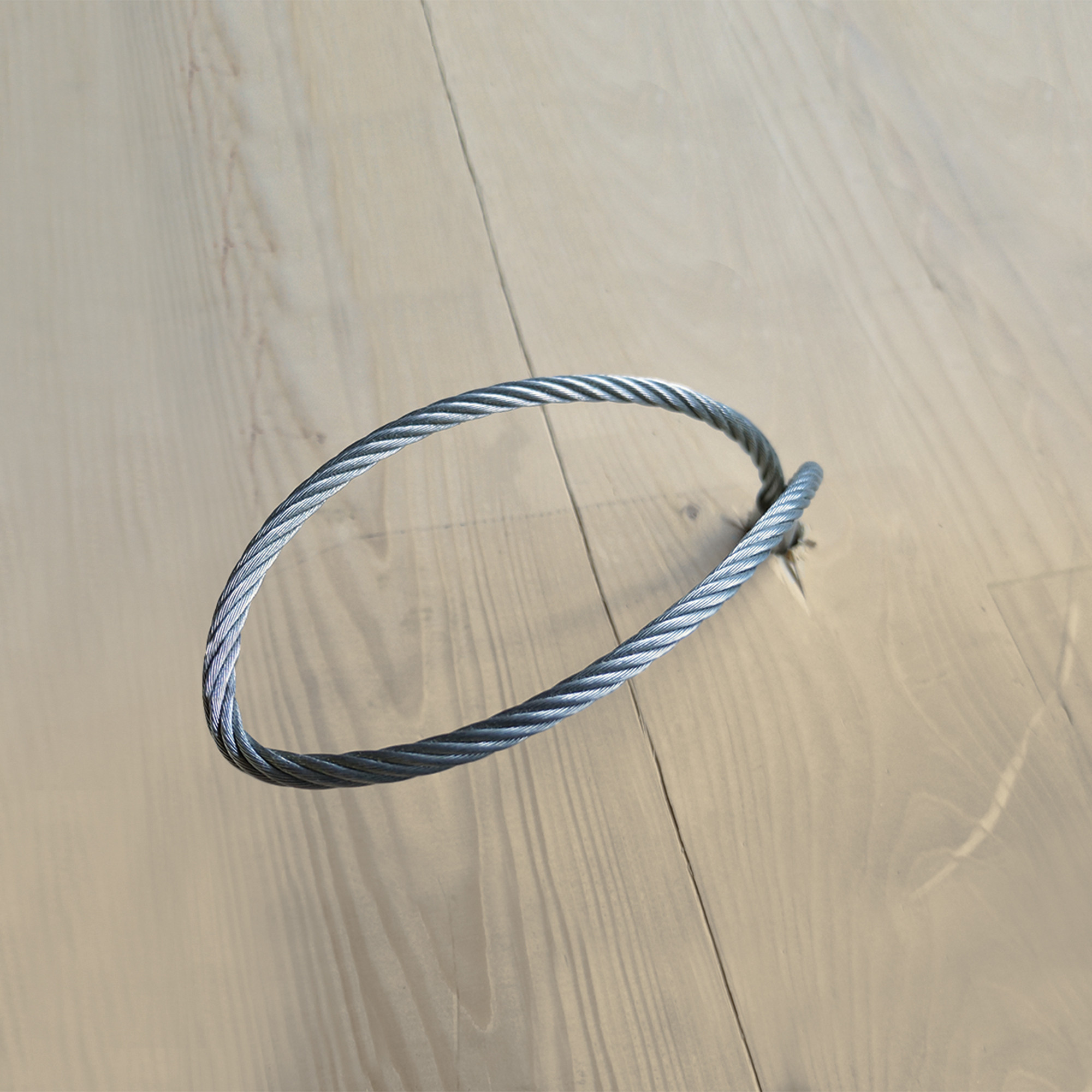

With the reusable OCTOPUS lifting eyebolt, handling elements on the construction site is easy
Documents
-
Technical data sheets

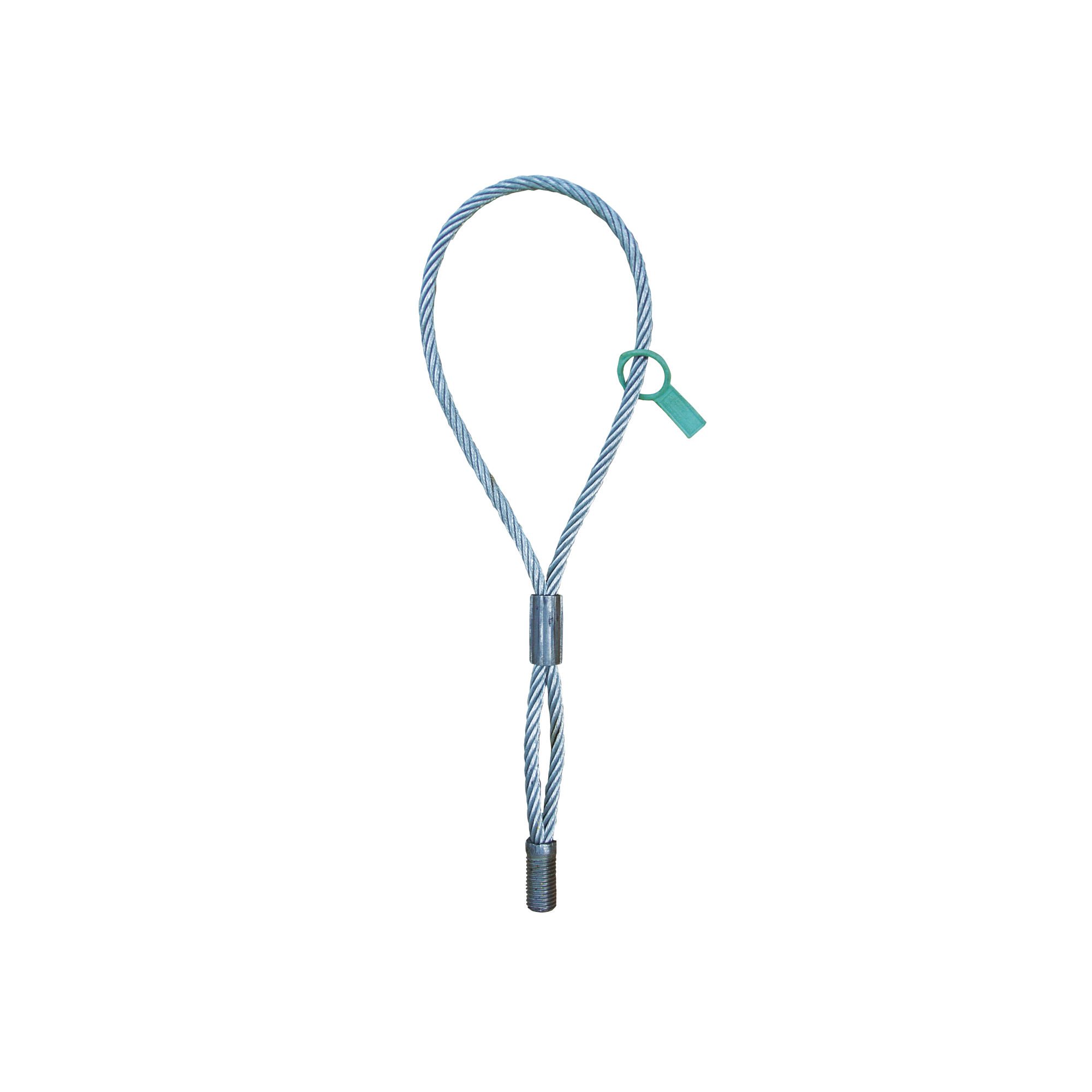

OCTOPUS (LIFTING EYEBOLTS)
| CODE | version | Ø
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|
| OCT45512 | M12 - 500 kg | 6 | 455 | 1 |
| OCT45516 | M16 - 1200 kg | 8 | 455 | 1 |
| OCT45520 | M20 - 2000 kg | 10 | 455 | 1 |
OCTOPUS (PERCUSSION NUT)
| CODE | version | Ø
[mm]
|
H
[mm]
|
pcs. |
|---|---|---|---|---|
| OCTM12 | M12 | 18 | 14 | 1 |
| OCTM16 | M16 | 22 | 16 | 1 |
| OCTM20 | M20 | 24 | 16 | 1 |
