PATROL + SEAMO

LIFELINE ON SUPPORT FOR ROUND SEAM METAL ROOFS

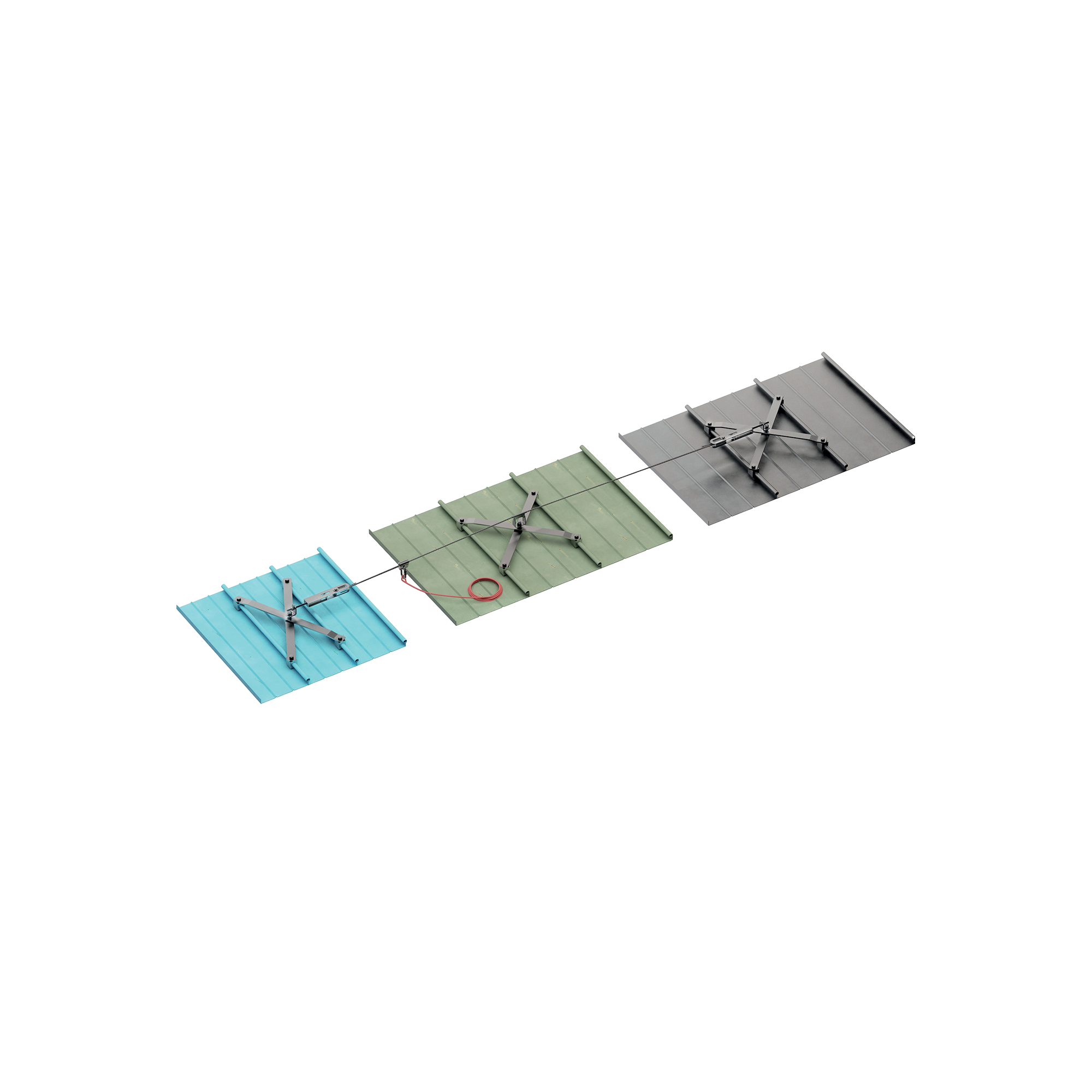

With the PATROL system and the SEAMO support, it is possible to construct lifelines on metal sheet roofs with round standing seams. It is quick and safe to install on different spacings between standing seams.

Get in touch with sales
EN 795:2012 C
CEN/TS 16415:2013
UNI 11578:2015 C
ROUND SEAM METAL ROOF
y x

Description

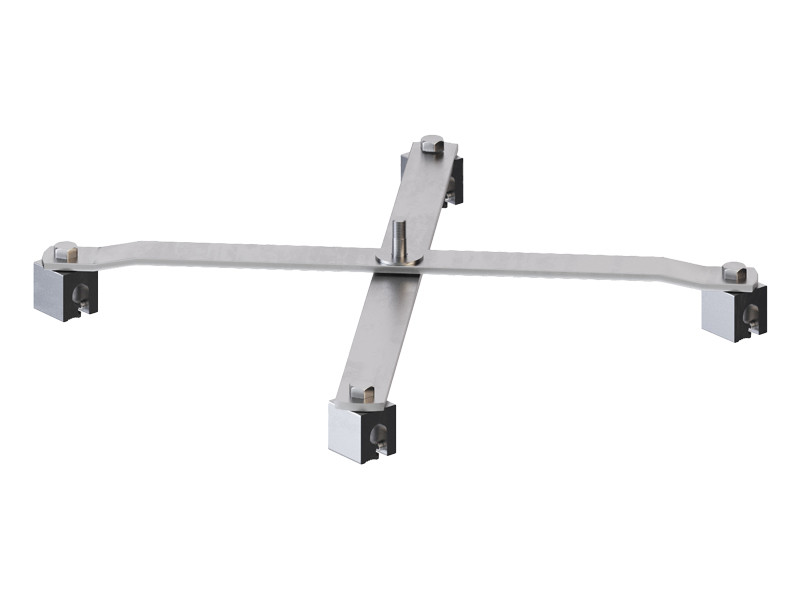

PATROL + SEAMO system, for lifelines on metal sheet roofs with round standing seam.

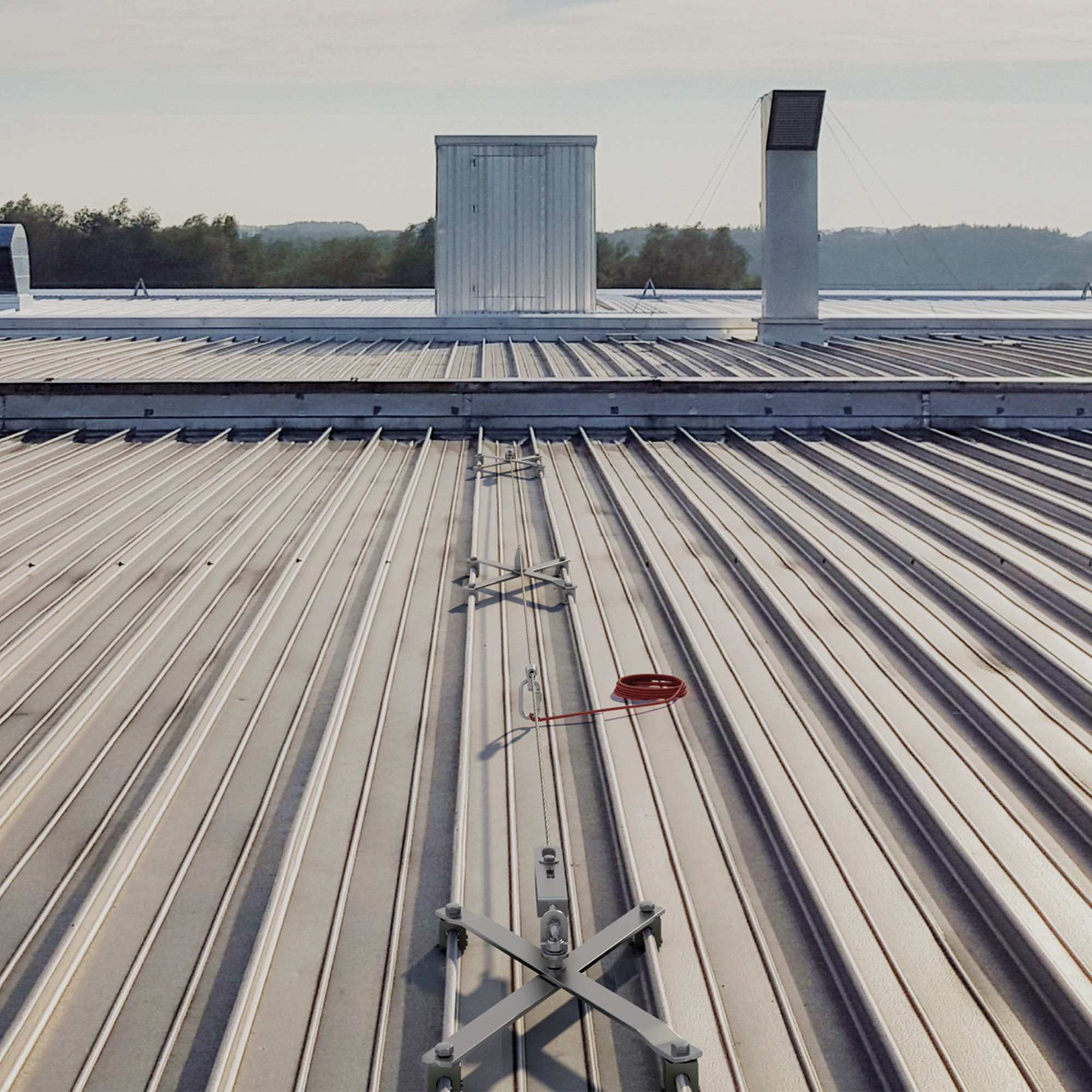

The lifeline system can be fastened to the seam with four clamps, without the need to make openings in the metal sheet, ensuring the integrity of the building envelope. The fastening is done on two round seams of the sheet, to ensure greater strength and maximum safety. It can be installed on flat or sloping roofs and withstands any plane stress (360°).

Documents

Made of

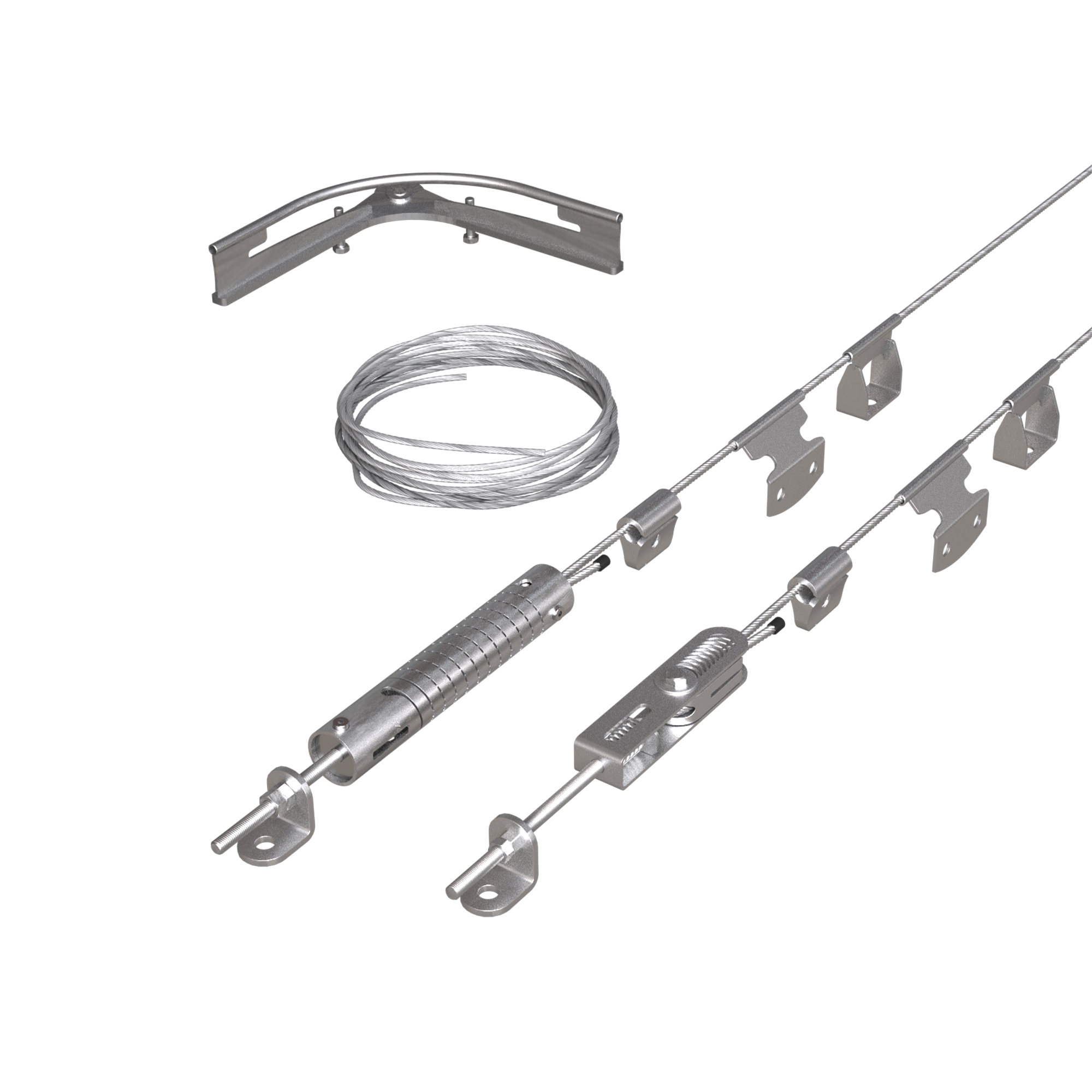

PATROL

HORIZONTAL LIFELINE
