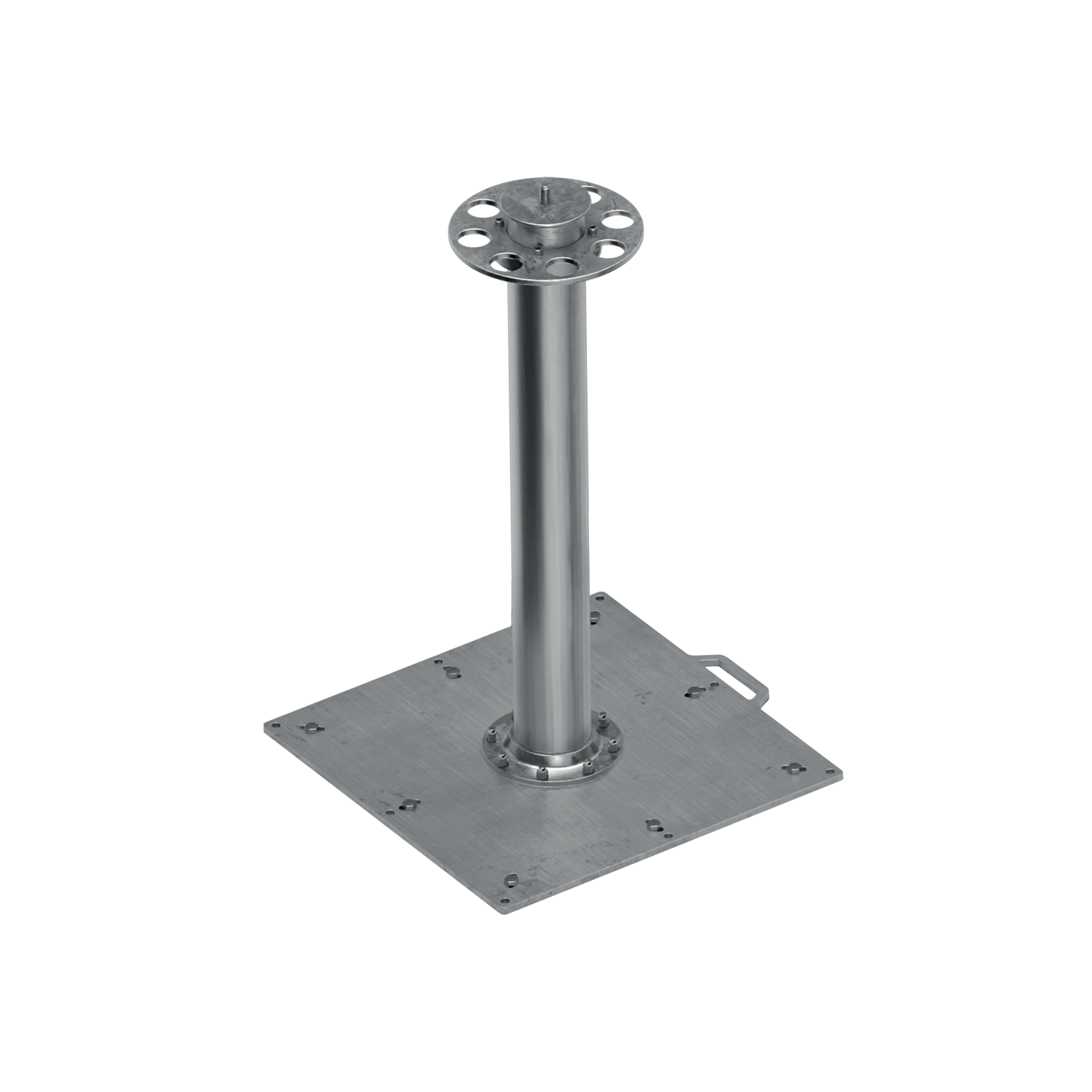

SOLID

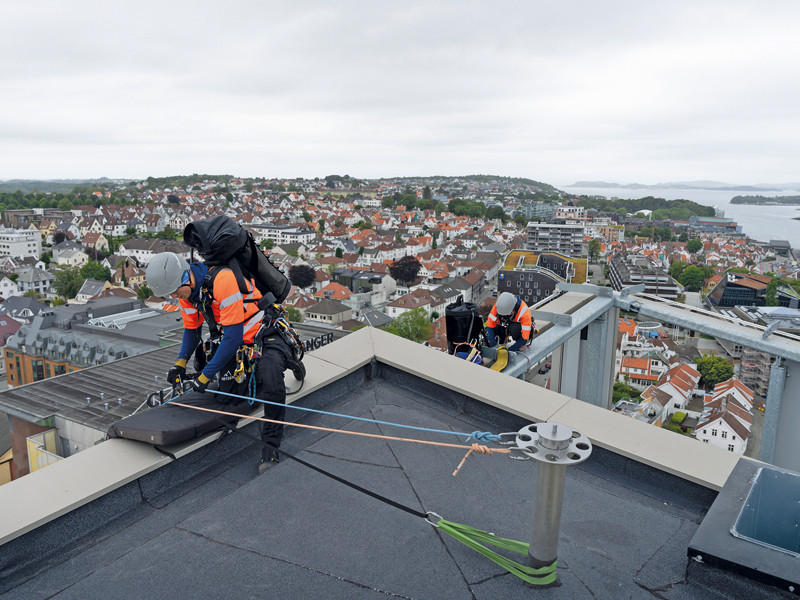

RIGID ANCHOR POINT FOR ROPE ACCESS WORK

The high-rigidity and high-strength support, combined with the jawplate anchor system, enables rope access work to be carried out comfortably and safely.

The aluminium alloy comprising the support facilitates handling and installation thanks to the lightweight components.

Support height between 400 and 1000 mm adapts to different roofing thicknesses

EN 795:2012 A
CEN/TS 16415:2013
UNI 11578:2015 A
BS 8610:2017 A3/A5
AS/NZS 5532:2013
ANSI Z359.18/A

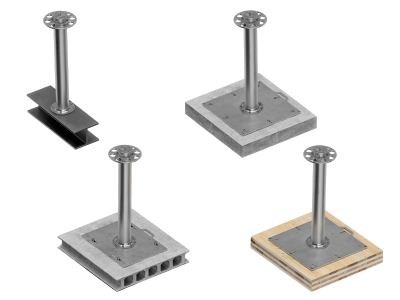

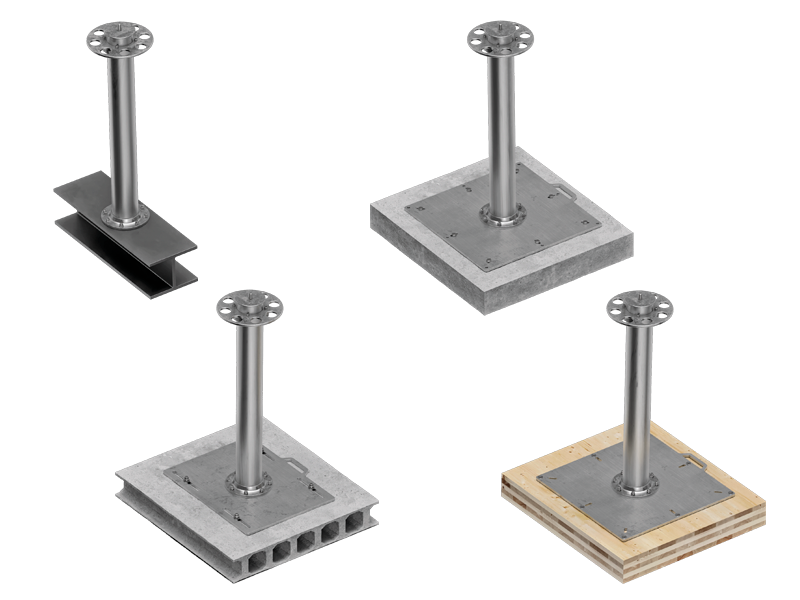

CLT
Concrete
AERATED FLOOR SLAB
Steel
y x z

Documents

  • Technical data sheets

SOLID

CODE material B
[mm]
H
[mm]
L
[mm]
pcs.
SOLID400
New
EN AW-6082-T6 220.5 400 - 1
SOLID600
New
EN AW-6082-T6 220.5 600 - 1
SOLID800
New
EN AW-6082-T6 220.5 800 - 1
SOLID1000
New
EN AW-6082-T6 220.5 1000 - 1
SOLIDRIG
New
EN AW-6082-T6 - - - 1
SOLIDPLATE
New
EN AW-6082-T6 550 - 595 1
SOLIDPLATEHC
New
EN AW-6082-T6 650 - 545 1
SOLIDPLATEHD
New
EN AW-6082-T6 650 - 695 1
