ADVANCED HIGH-TOLERANCE ANGLE BRACKET
TITAN DIVE
The problem of tolerance when installing timber walls on concrete kerbs is now a thing of the past thanks to the TITAN DIVE system.

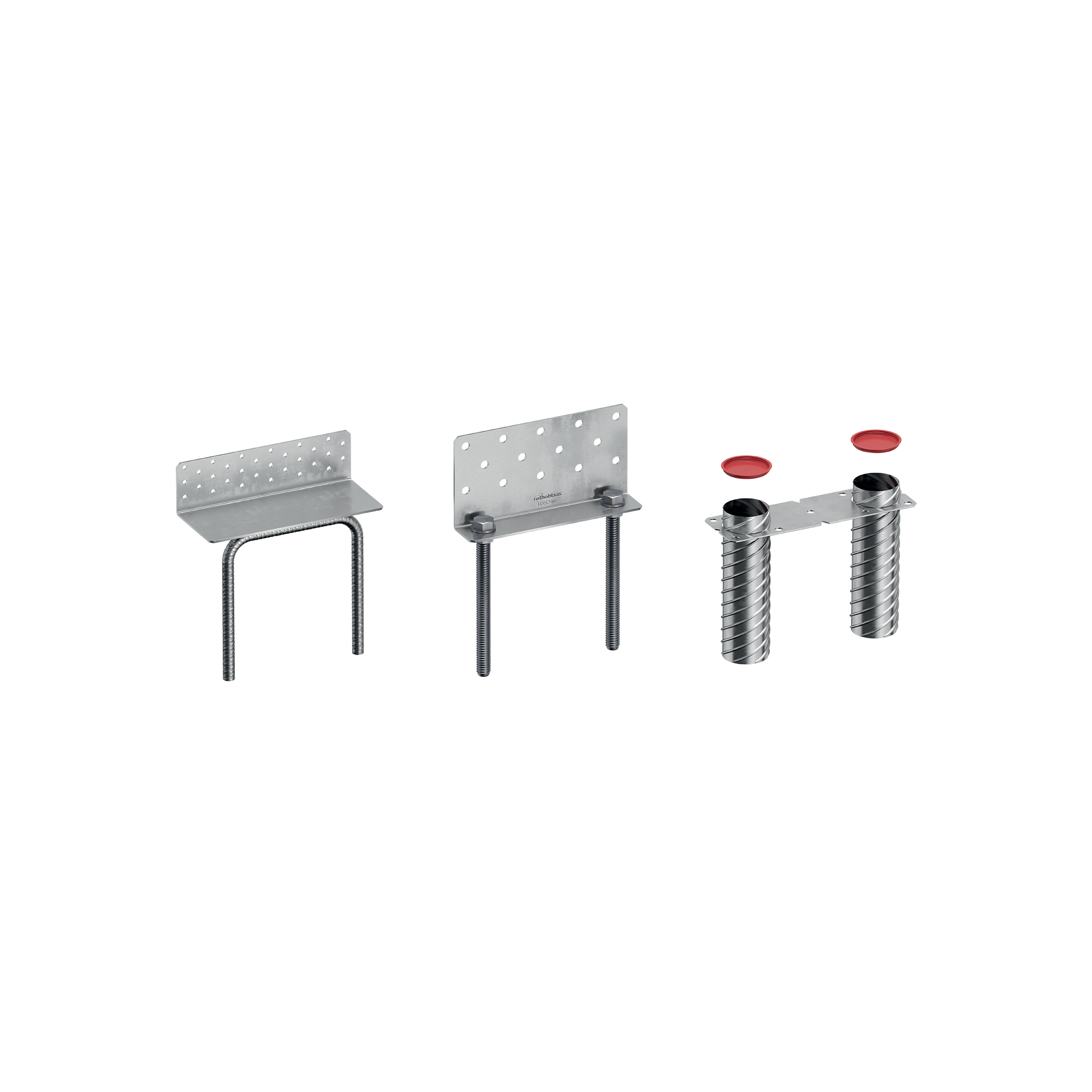

The component with corrugated pipes is prepared at the time of concrete casting and guarantees great tolerance when fastening the walls using angle brackets.
CHARACTERISTICS
TITAN DIVE was created precisely to solve the problem of tolerances. While in traditional construction these are in the order of centimetres, in timber construction they are in the order of millimetres. It can therefore happen that the concrete kerb on which the timber walls are to be installed is not precise enough to allow for a smooth or even safe installation.
The patented TITAN DIVE system solves the problem at its root, providing space for the timber wall to be fixed at the time of concrete casting and guaranteeing a tolerance of 22 mm in each direction and an inclination of ±13°.
When used in combination with special corrugated tubes and angle brackets represents a new method of ground fastening, with the reliability of an anchor pre-installed in concrete and the tolerance of a post-installed anchor.
TITAN DIVE allows maximum freedom in the installation of timber walls and avoids the need to drill holes in the concrete substrate, which saves considerable time on site.
FIELDS OF USE

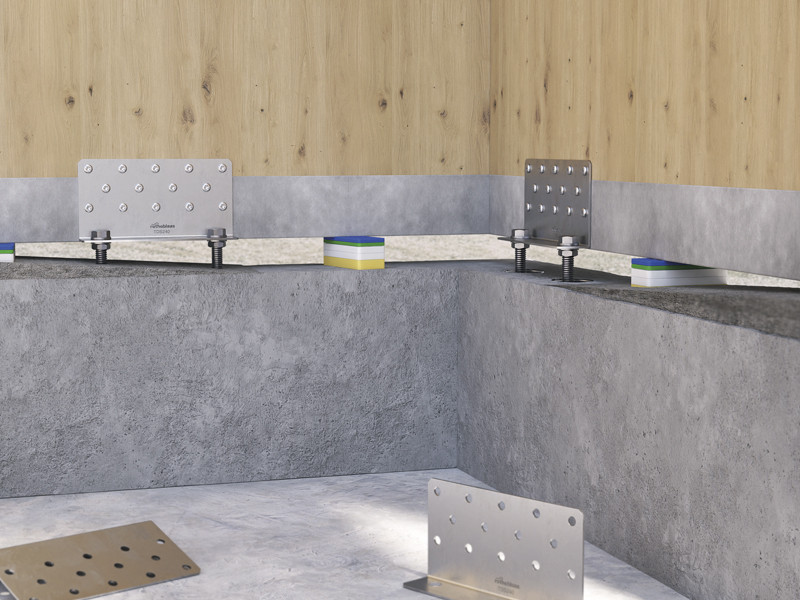

TITAN DIVE is used for fastening timber walls, beams or columns to concrete.
The angle brackets are fastened inside corrugated pipes prepared in the casting for maximum installation tolerance.
The supports to which the plate can be applied are:
• TIMBER FRAME walls
• CLT and LVL panel walls
• solid timber or glulam beams or columns

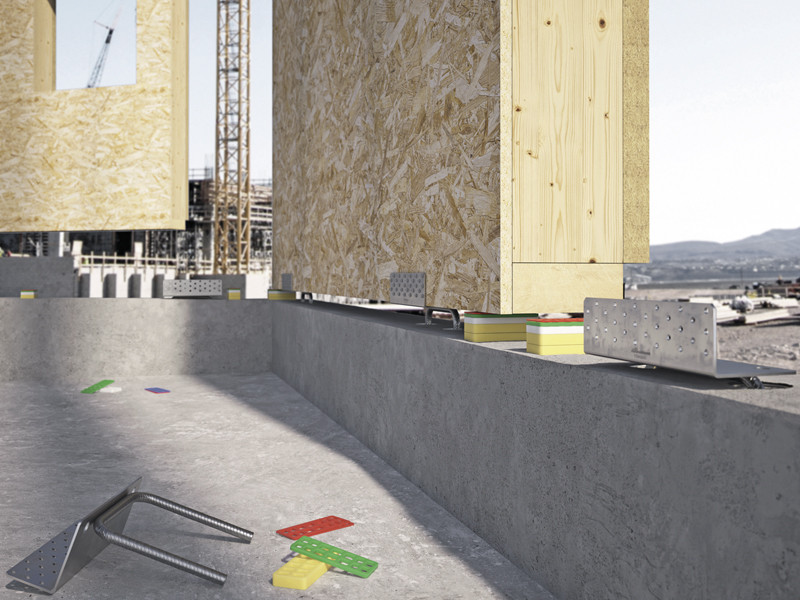

The TITAN DIVE system allows the installation of timber walls even on very thin reinforced concrete kerbs.

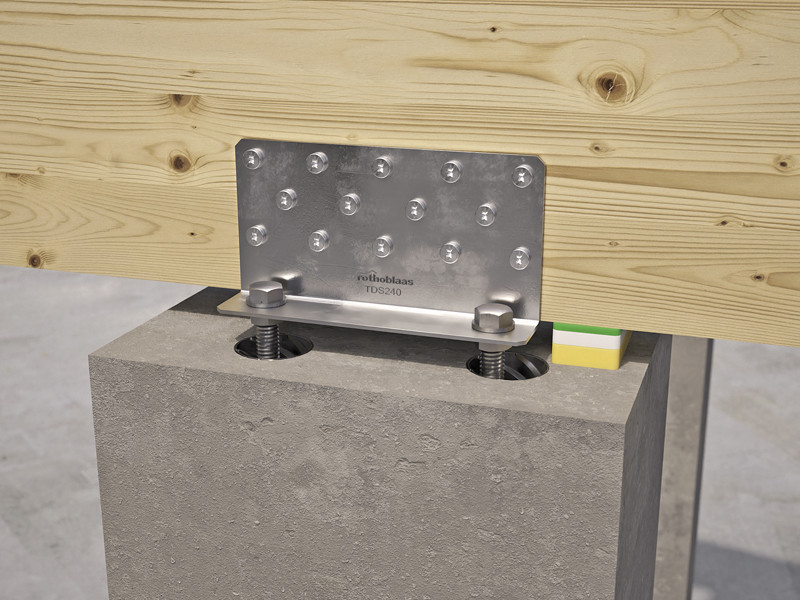

The TDS240 model with 8 mm HBS PLATE screws is ideal for installation on CLT walls, while the TDN240 model can be used on any type of wall, also lightweight (Timber Frame).
Documents
Technical data sheets |
---|
TUBI CORRUGATI
CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
pcs. | |
---|---|---|---|---|---|
CD60180 | New | 260 | 80 | 200 | 1 |
ANGOLARI
CODE | B
[mm]
|
H
[mm]
|
s
[mm]
|
P
[mm]
|
pcs. | |
---|---|---|---|---|---|---|
TDN240 | New | 240 | 70 | 3 | 100 | 1 |
TDS240 | New | 240 | 125 | 3 | 50 | 1 |
