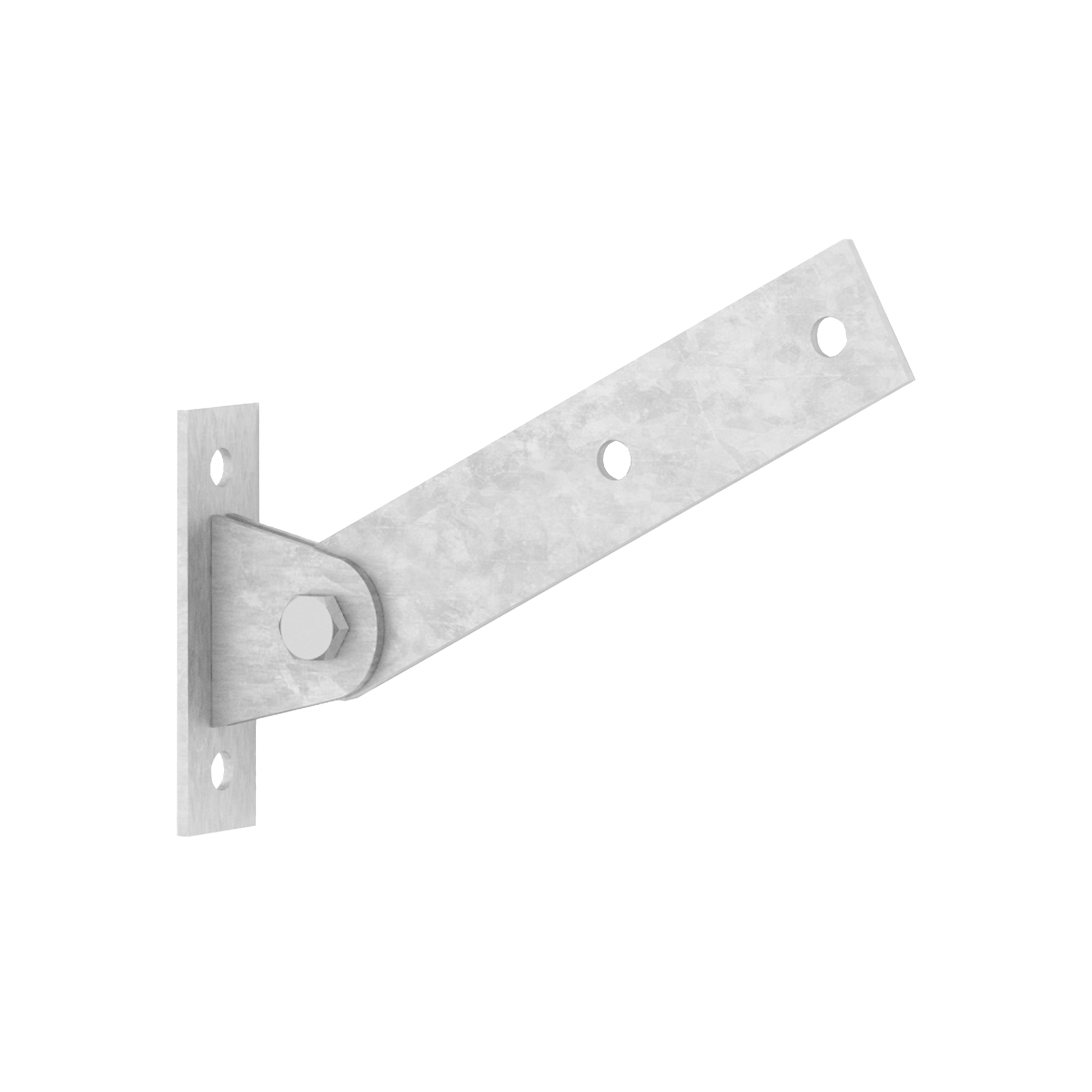

BRACE
HINGED PLATE

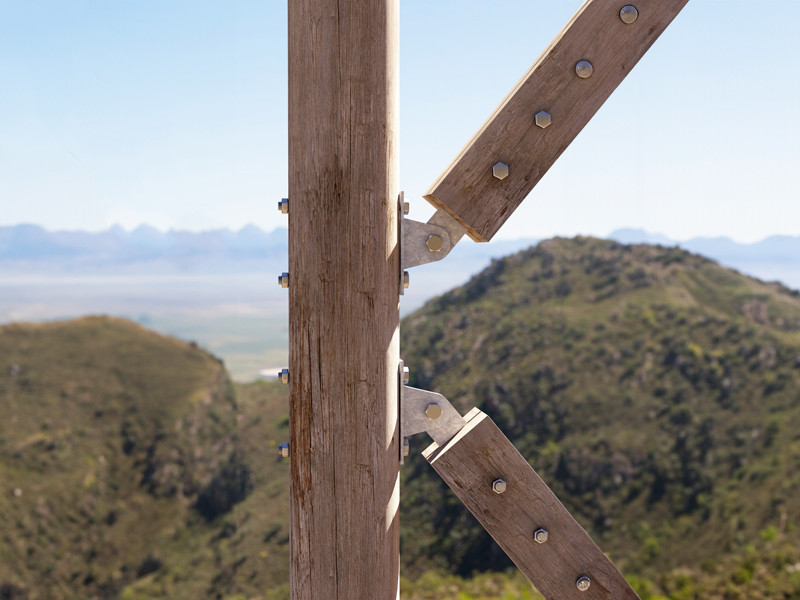

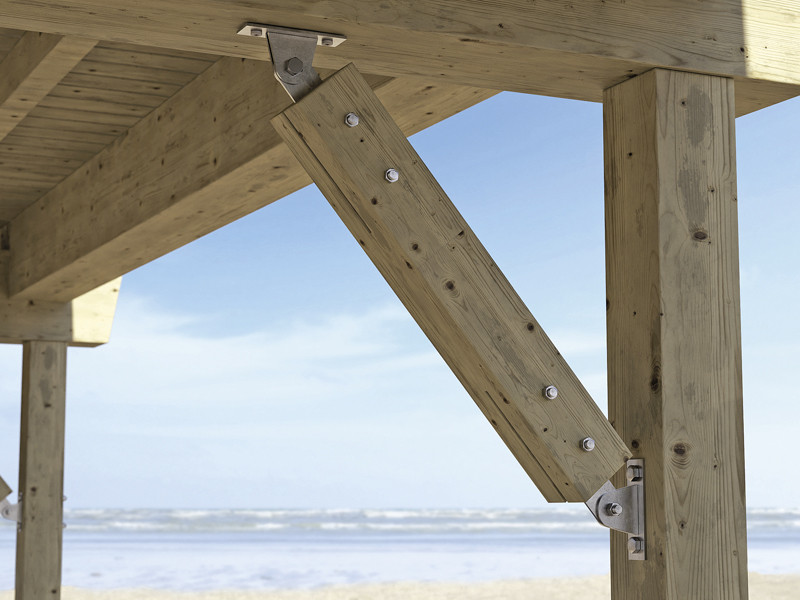

Ideal for reciprocal fastening with variable inclination of rectangular or round columns.
Available in A2 | AISI304 stainless steel to for use in aggressive environments.
Documents
-
Technical data sheets
BRACE
| CODE | B
[mm]
|
H
[mm]
|
L
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| BRF140 | 40 | 140 | 235 | 5 | 1 |

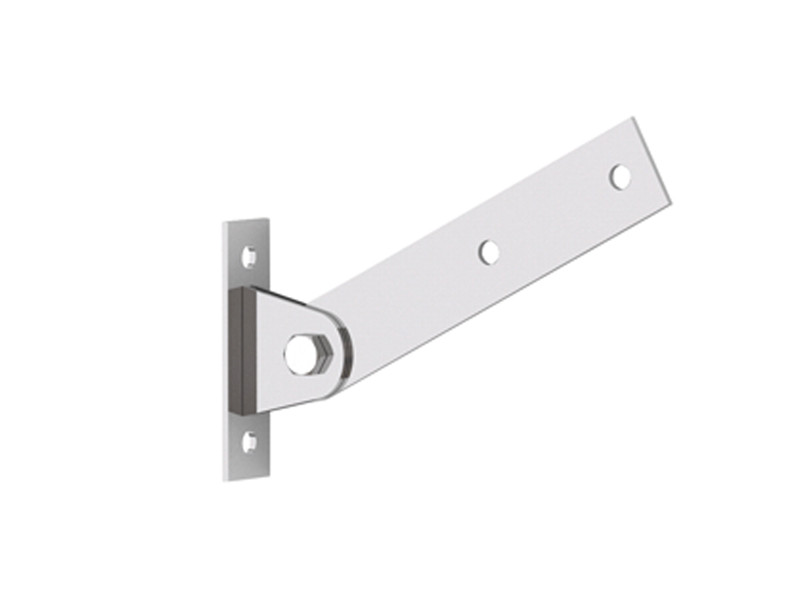

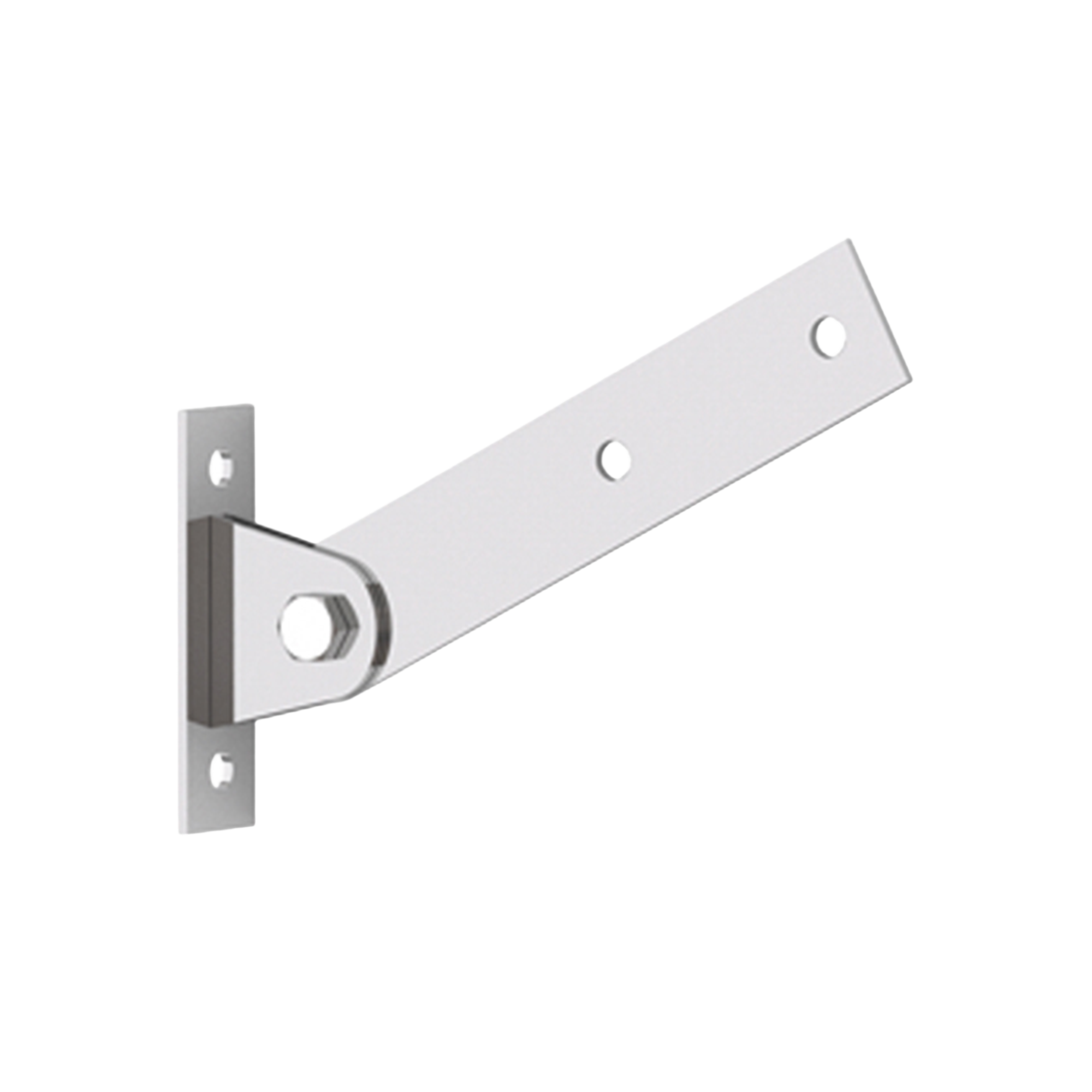

BRACE A2 | AISI304
| CODE | B
[mm]
|
H
[mm]
|
L
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| BRFI140 | 40 | 140 | 235 | 5 | 1 |
Specifications
Supply and installation of hinged plate, Type BRACE.
Field of use:
- Joints for timber columns, classes 1, 2 and 3
Material:
- Hot dip bright zinc plated carbon steel and stainless steel A2 | AISI304
Geometry:
Angle bracket: :
-
H (mm) = :
-
Bottom plate (mm) = :
-
Thickness s (mm) = :
Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
