R10-R20

ADJUSTABLE POST BASE

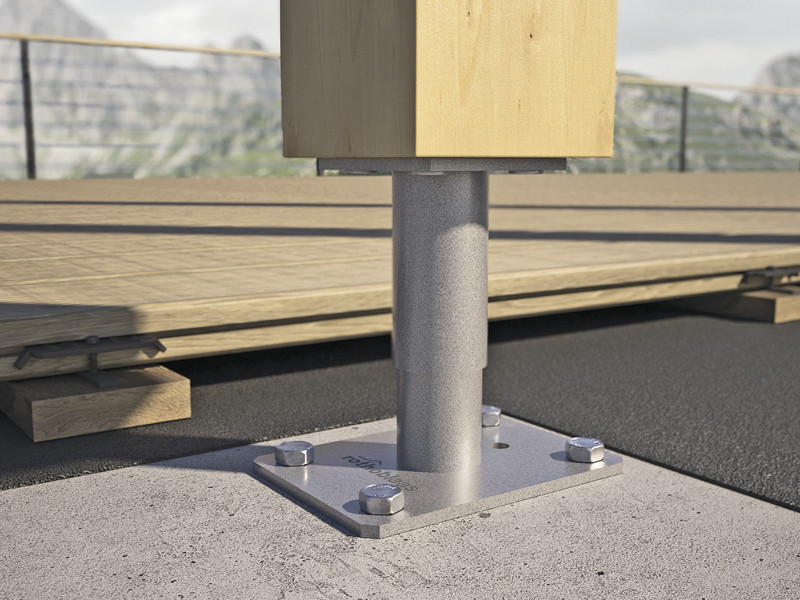

The adjustable post base is an indispensable support for raising the structure off the ground and protecting it from water splashing and stagnation, ensuring great durability.

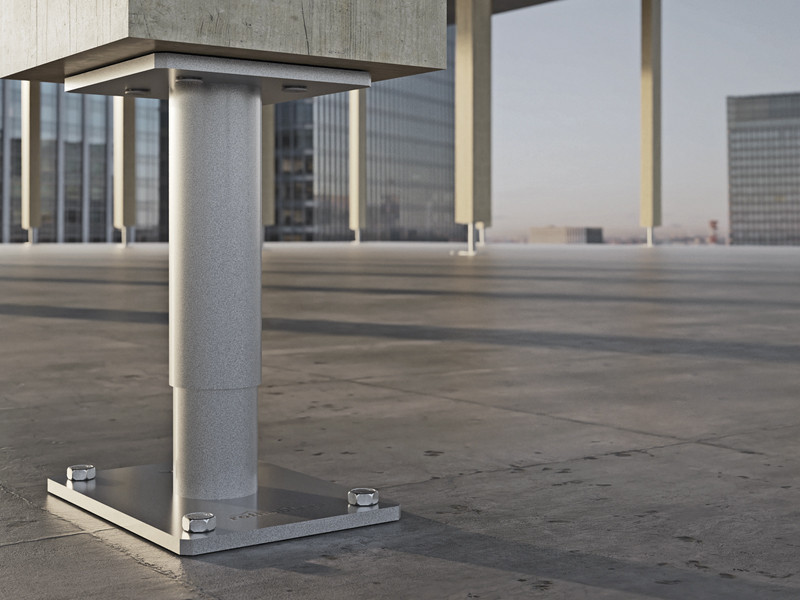

The R10 and R20 adjustable post bases for outdoor joints also offer the advantage that they can be adjusted in height after assembly, to correct any possible unevenness. The regulation system is concealed in the sleeve, for optimal aesthetics.

Get in touch with sales

Description
Documents
Codes and dimensions
Related products

Description

AESTHETICS AND DURABILITY FOR EXTERNAL STRUCTURES

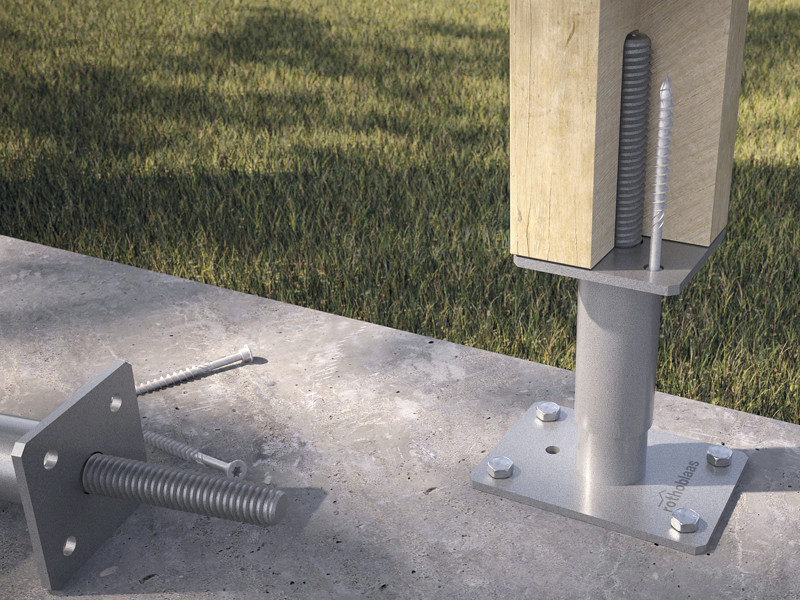

The concealed fastening of R10 and R20 to the timber element is achieved through the use of screws and a top plate. It is fixed to the ground by means of anchors on a lower plate. The lower plate has an auxiliary hole to allow the screws to be fastened to timber by means of long bits.

In terms of static strength, the large models ensure high compressive strengths; to ensure high tensile strengths as well, VGS EVO full thread screws can be used.

Carefully designed and durable, R10 and R20 are made of carbon steel with Dac Coat coating, which makes them suitable for outdoor use in service classes 1, 2 and 3. They can be used with both solid timber and glulam.

The height adjustment capability of Rothoblaas R10 and R20 post bases allows precise adaptation to the specific needs of each project, simplifying installation even on uneven surfaces. Carbon steel with Dac Coat coating plating effectively protects against degradation, extending the adjustable post base's longevity in adverse weather conditions.

Visual aesthetics and functionality are combined in Rothoblaas adjustable post bases, which have been designed to perfectly complement any architectural context. The superior finish, combined with the robustness of the material, provides an attractive appearance that is maintained over time, resisting atmospheric agents and corrosion. Easy and quick installation, thanks to the presence of holes that facilitate alignment during assembly.

R10 and R20 provide uncompromising visual harmony. They are ideal for lightweight outdoor structures where durability, structural safety and aesthetics blend together.

Documents

Technical data sheets
Choose a Language
Technical data sheets Old
Choose a Language
ETA Certificate

Choose a Language
File CAD

Choose a Language
File BIM.ifc

Choose a Language
File BIM.rfa
Choose a Language

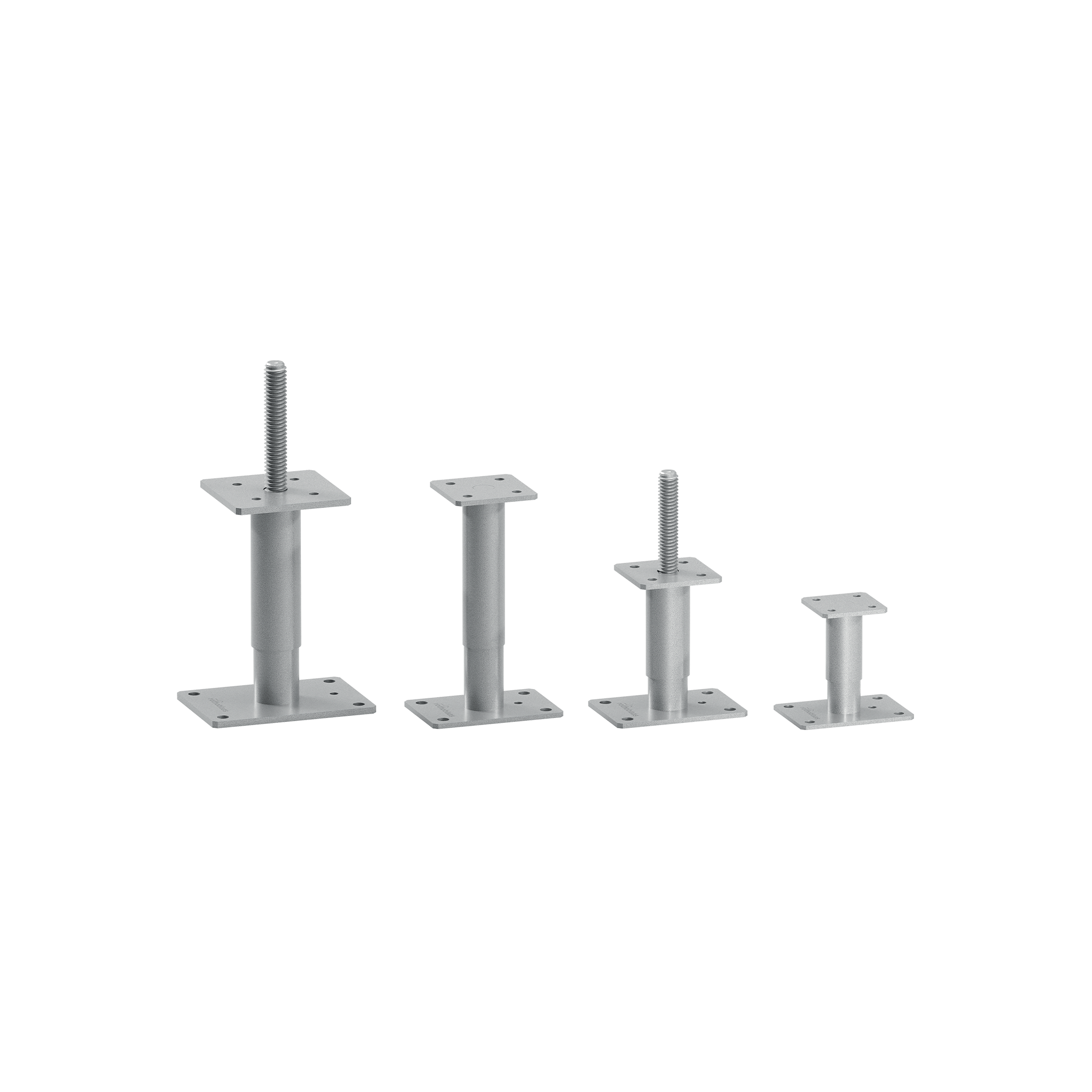

R10 - SCREWS NOT INCLUDED

CODE	B [mm]	P [mm]	H [mm]	s [mm]	B [in]	P [in]	H [in]	s [in]	pcs.
R1080M	80	80	150	5	3 1/8''	3 1/8''	6''	0.197	6
R10100L	100	100	200	6	4''	4''	8''	0.236	4
R10100XL	100	100	300	6	4''	4''	11 3/4''	0.236	4
R10140XL	140	140	300	8	5 1/2''	5 1/2''	11 3/4''	0.315	4

R20 - SCREWS NOT INCLUDED

CODE	B [mm]	P [mm]	H [mm]	s [mm]	pcs.
R2080M	80	80	150	5	6
R20100L	100	100	200	6	4
R20140XL	140	140	300	8	4
