ANGLE BRACKETS FOR BUILDINGS
WBR
The WBR angle brackets for timber are ideal for structural joints which require tensile,shear and rocking capacity.
Available in a full range of sizes, making it suitable for numerous applications.

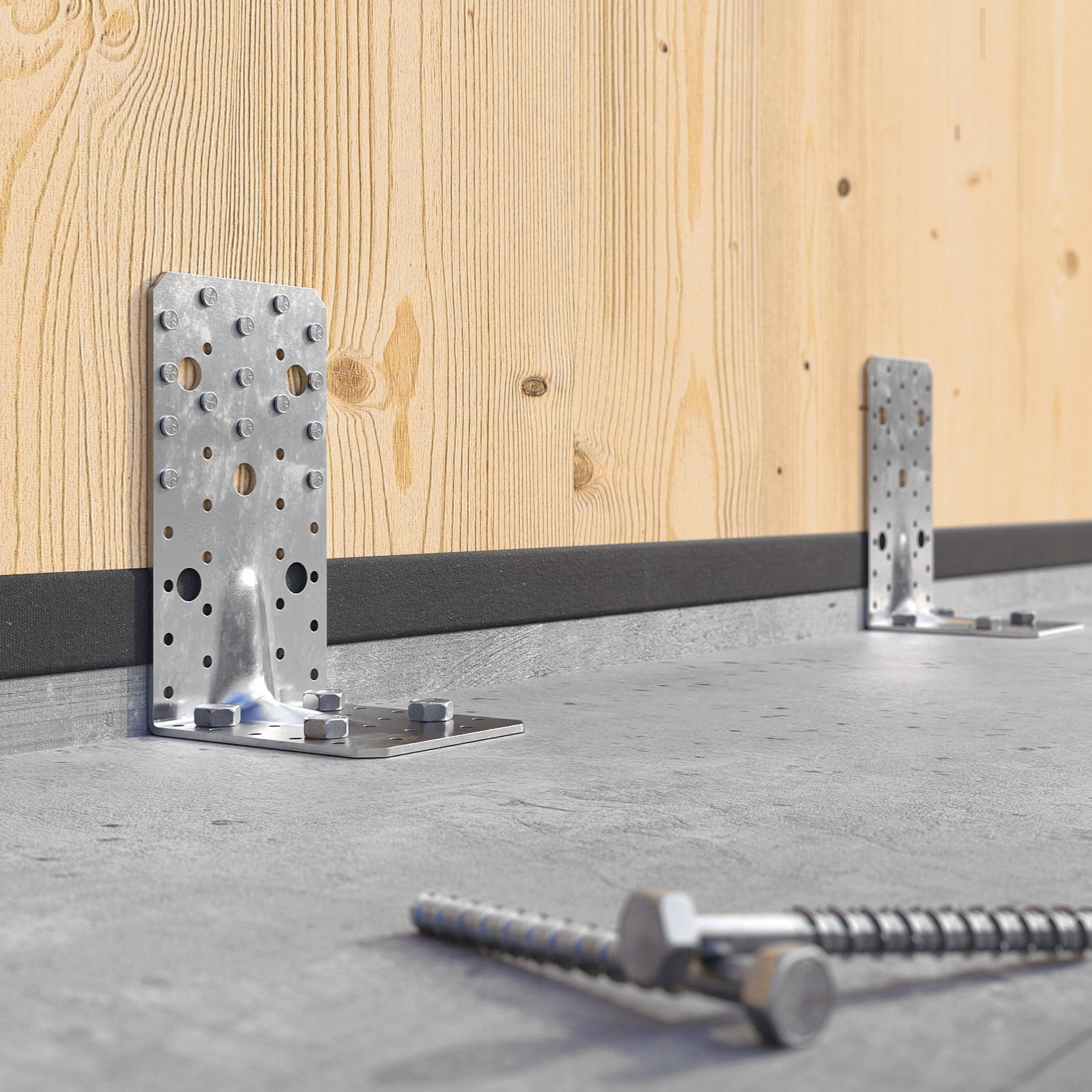

Due to the quantity and arrangement of the fastening holes, it can be used for both timber to timber, and timber to concrete connections.
WBR, the simple and versatile angle brackets for timber and concrete.

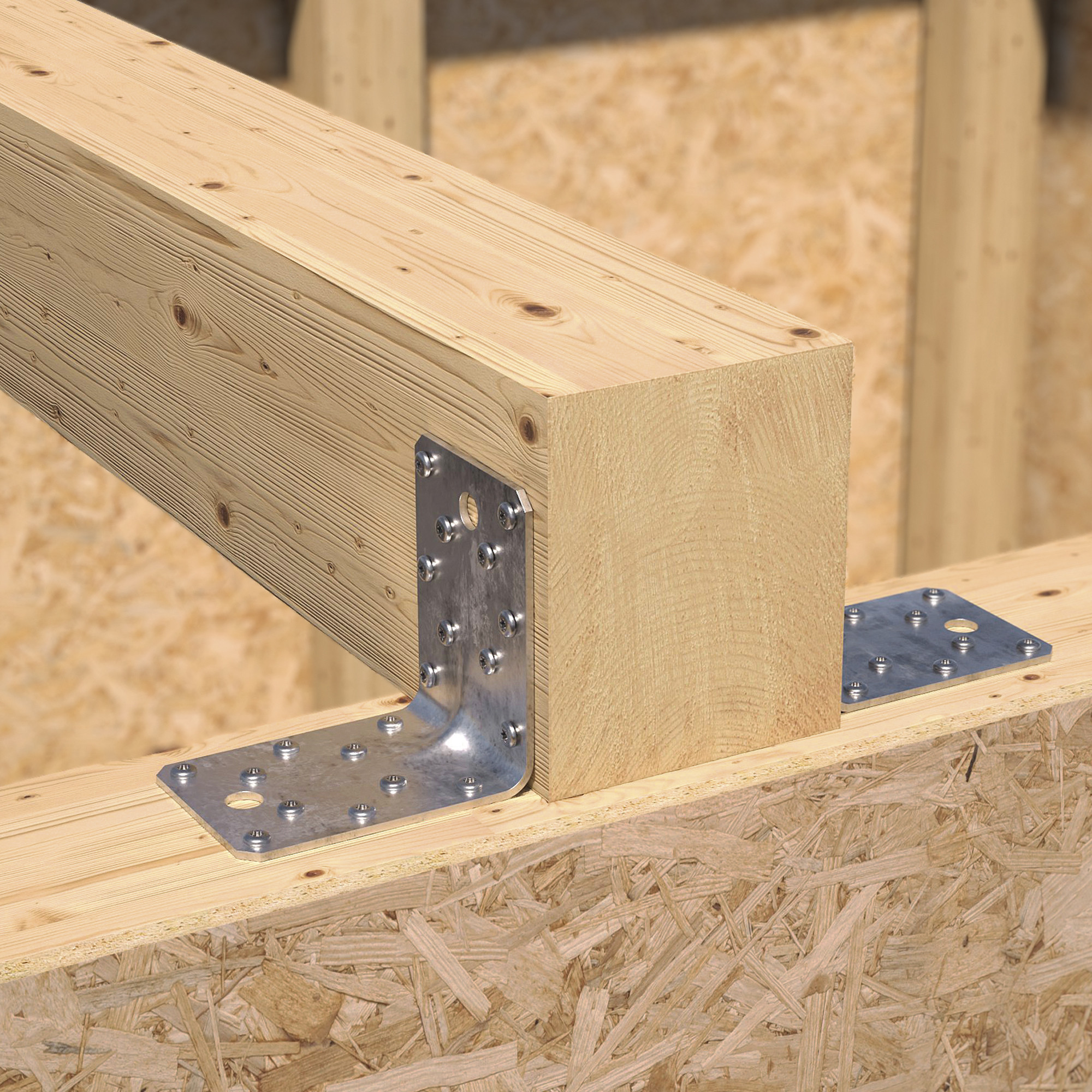

The bright zinc plated carbon steel three dimensional perforated plates are ideal for timber-to-concrete and timber-to-timber joints, and are suitable for use on solid timber, glulam, CLT, LVL, platform frames and timber-based panels.
Suitability of use and safety are guaranteed by the CE mark according to the ETA.
Values certified on the basis of tests on the product.
Documents
| Technical data sheets | |
|---|---|
| Declaration of performance (DOP) | Download |
| File CAD |

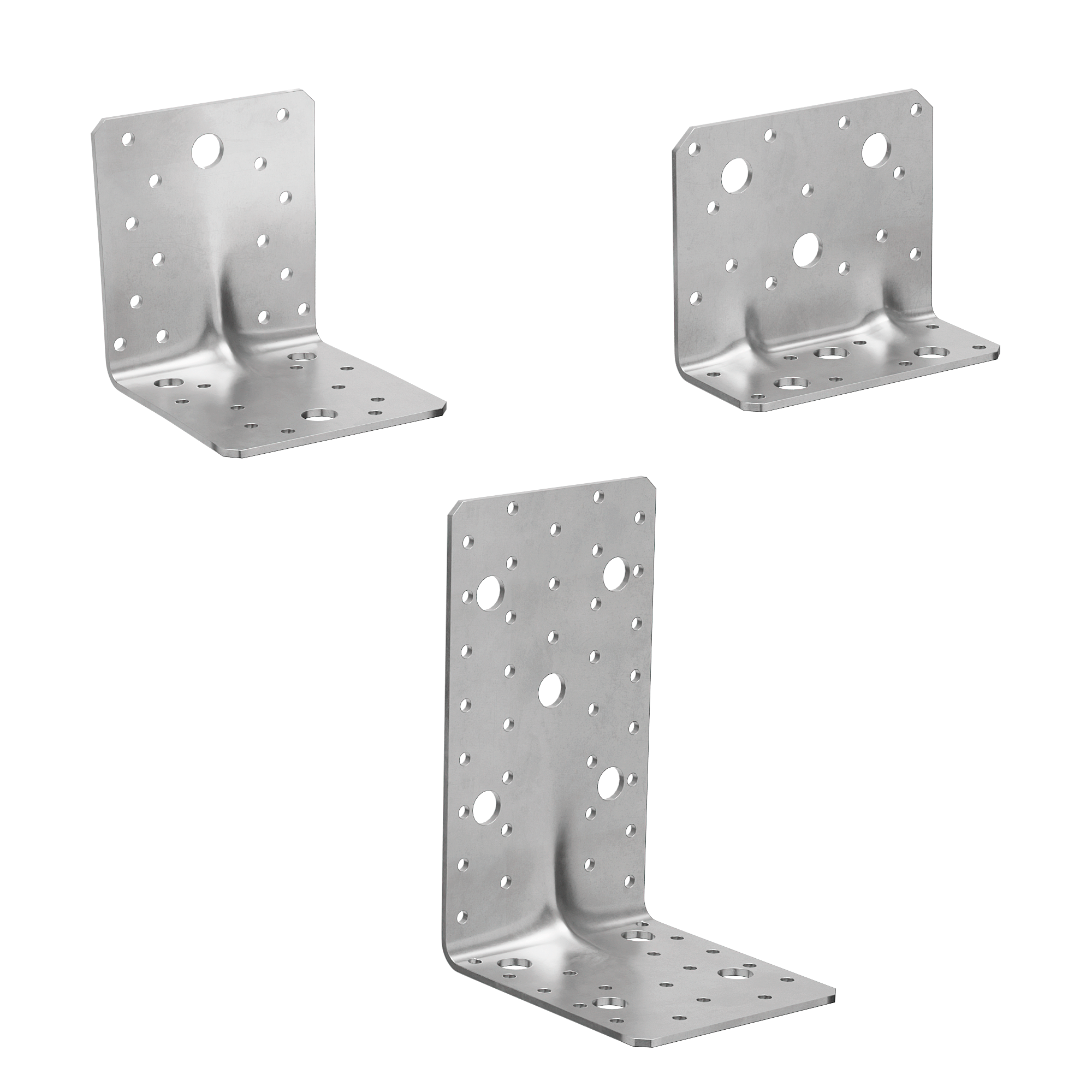

WBR 70-90-100
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
pcs. |
|---|---|---|---|---|
| WBR070 | 55 | 70 | 70 | 100 |
| WBR090 | 65 | 90 | 90 | 100 |
| WBR100 | 90 | 100 | 100 | 50 |
WBR 90110-170
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
pcs. |
|---|---|---|---|---|
| WBR90110 | 110 | 50 | 90 | 50 |
| WBR170 | 95 | 114 | 174 | 25 |
WBR THIN 70-90-100
| CODE | B
[mm]
|
P
[mm]
|
H
[mm]
|
s
[mm]
|
pcs. |
|---|---|---|---|---|---|
| WBR07015 | 55 | 70 | 70 | 1.5 | 100 |
| WBR09015 | 65 | 90 | 90 | 1.5 | 100 |
| WBR10020 | 90 | 100 | 100 | 2 | 50 |
Specifications
WBR 70
Supply and installation of standard angle bracket with reinforcement for timber structures, Type WBR 70.
CE marking in accordance with ETA
Field of use:
- Timber-to-timber and timber-to-concrete joints
Material:
- Bright zinc plated carbon steel, three dimensional perforated plate
Geometry:
- B (mm) = :
- P (mm) = :
- H (mm) = :
- Thickness s (mm) = :
Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
WBR 90
Supply and installation of standard angle bracket with reinforcement for timber structures, Type WBR 90.
CE marking in accordance with ETA
Field of use:
- Timber-to-timber and timber-to-concrete joints
Material:
- Bright zinc plated carbon steel, three dimensional perforated plate
Geometry:
- B (mm) = :
- P (mm) = :
- H (mm) = :
- Thickness s (mm) = :
Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
WBR 100
Supply and installation of standard angle bracket with reinforcement for timber structures, Type WBR 100.
CE marking in accordance with ETA
Field of use:
- Timber-to-timber and timber-to-concrete joints
Material:
- Bright zinc plated carbon steel, three dimensional perforated plate
Geometry:
– B (mm) = : ………………
– P (mm) = : ………………
– H (mm) = : ………………
- Thickness s (mm) = : ………………
Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
WBR 170
Supply and installation of standard angle bracket with reinforcement for timber structures, Type WBR 170.
CE marking in accordance with ETA
Field of use:
- Timber-to-timber and timber-to-concrete joints
Material:
- Bright zinc plated carbon steel, three dimensional perforated plate
Geometry:
– B (mm) = : ………………
– P (mm) = : ………………
– H (mm) = : ………………
- Thickness s (mm) = : ………………
Indications for installation and mechanical performance as reported in the product data sheets and provided by the technical drawings of the project.
