DRT
WOOD-BRICKWORK SPACER SCREW

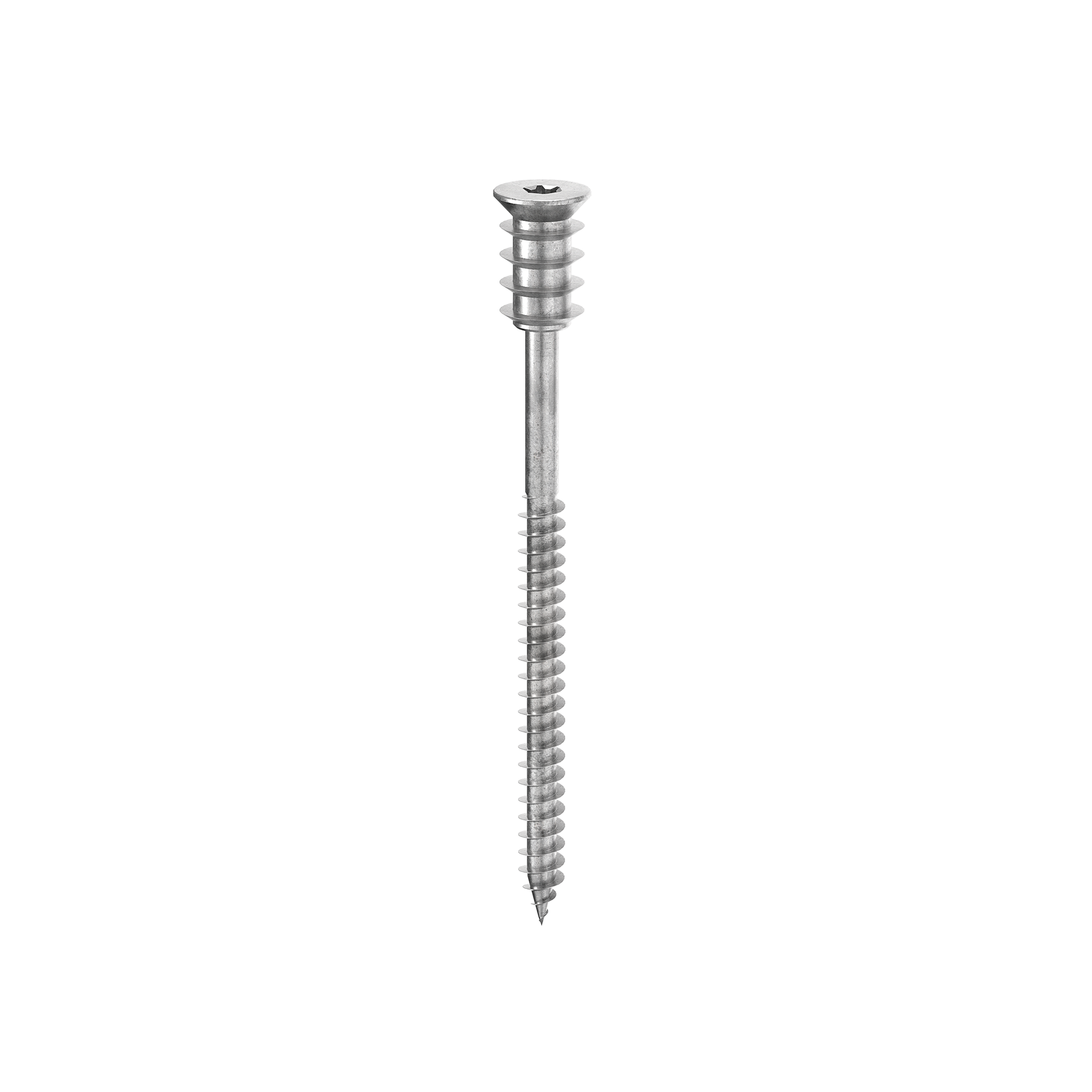

DRT is the wood screw with differentiated double thread and under-head geometry specially designed to generate and regulate a space between the fastenable thicknesses.
Designed to allow fastening to brickwork through the addition of a plastic screw anchor.
Description
With DRT, it is easy to regulate the position of wooden elements on brick supports.
The differentiated double thread of the DRT screw is ideal for adjusting the position of wood elements on brickwork supports (using a plastic screw anchor) and to create the proper verticality.
Also ideal for levelling panels on walls, paving and false ceilings.
In carbon steel with bright zinc plated.
Documents
-
Technical data sheets
- Technical data sheets Chinese
- Technical data sheets Croatian
- Technical data sheets Czech
- Technical data sheets Dutch
- Technical data sheets English Eurocode 5
- Technical data sheets English USA NDS
- Technical data sheets Finnish
- Technical data sheets French
- Technical data sheets German
- Technical data sheets Greek
- Technical data sheets Hungarian
- Technical data sheets Italian
- Technical data sheets Korean
- Technical data sheets Latvia
- Technical data sheets Norwegian
- Technical data sheets Polish
- Technical data sheets Portuguese
- Technical data sheets Romanian
- Technical data sheets Russian
- Technical data sheets Slovak
- Technical data sheets Slovene
- Technical data sheets Spanish
- Technical data sheets Swedish
DRT
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
|---|---|---|---|---|---|---|---|---|---|
| DRT680 | - | 6 | 80 | 50 | 0.24 | 3 1/8'' | 1 15/16'' | TX30 | 100 |
| DRT6100 | - | 6 | 100 | 60 | 0.24 | 4'' | 2 3/8'' | TX30 | 100 |
| DRT6120 | - | 6 | 120 | 70 | 0.24 | 4 3/4'' | 2 3/4'' | TX30 | 100 |
