HTS

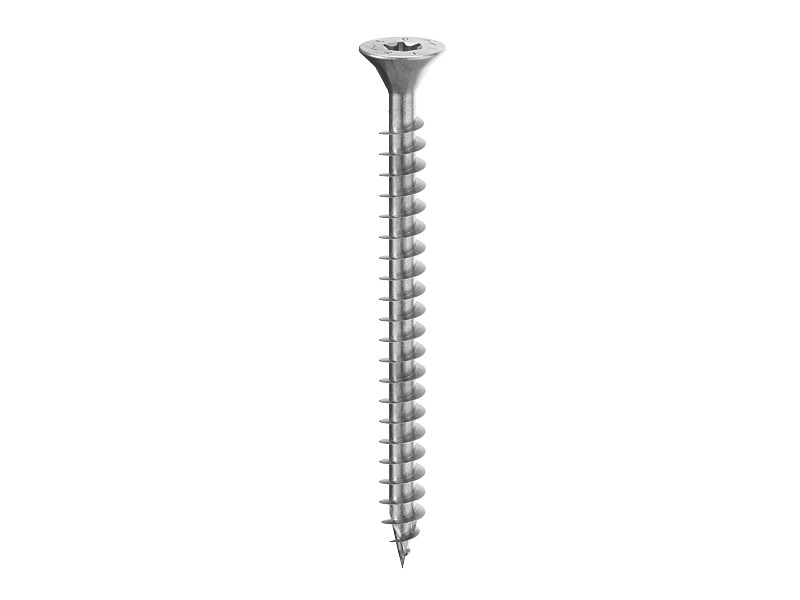

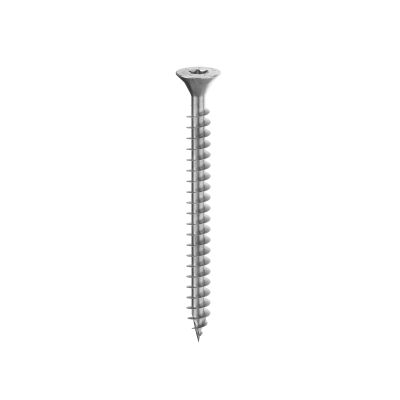

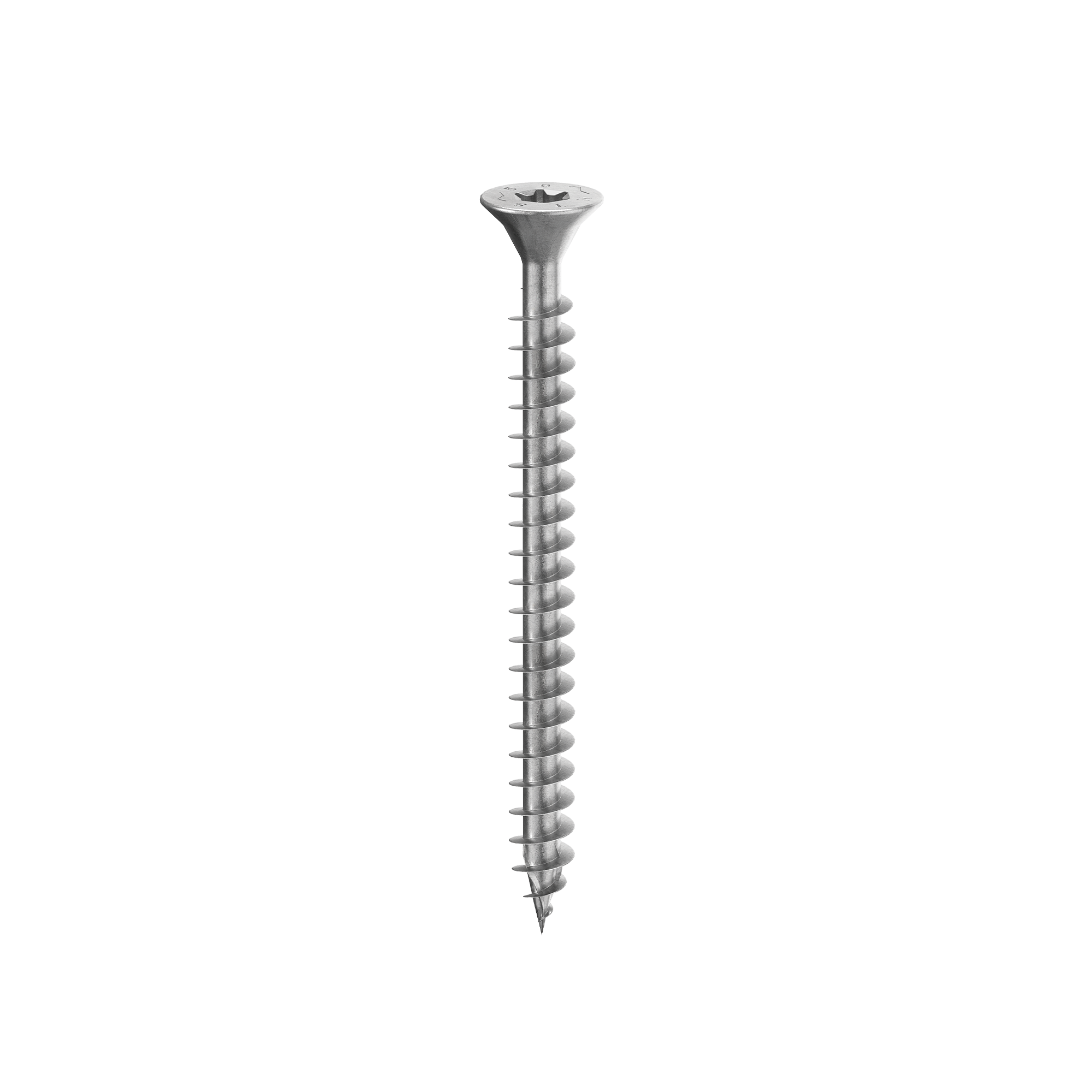

FULLY THREADED COUNTERSUNK SCREW HTS

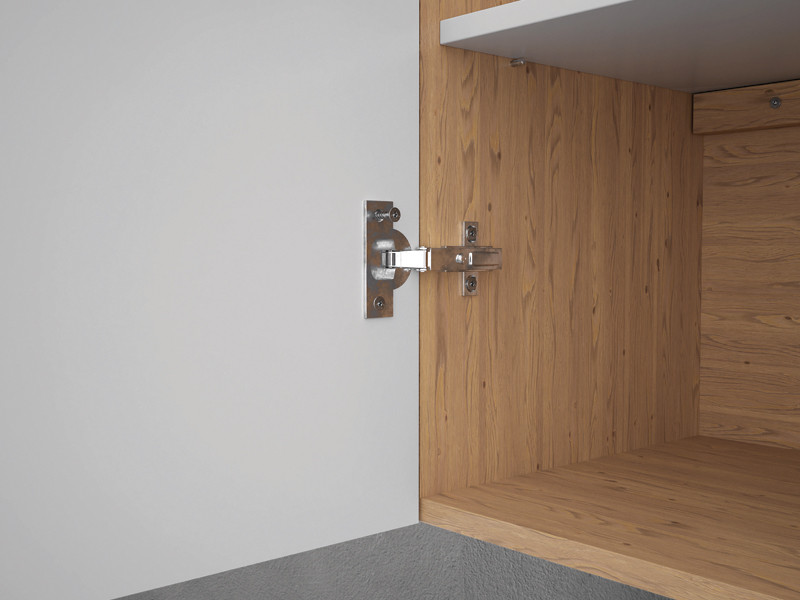

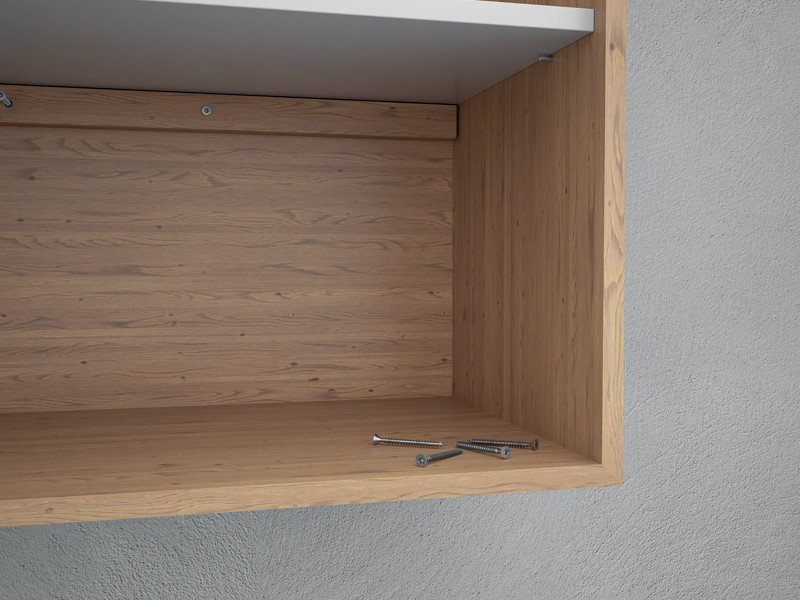

HTS is the wood screw made for fibre board and MDF panels. The smooth part under the head and the total thread equal to 80% of the length of the screw guarantees maximum coupling efficiency with wood-based panels.
Description

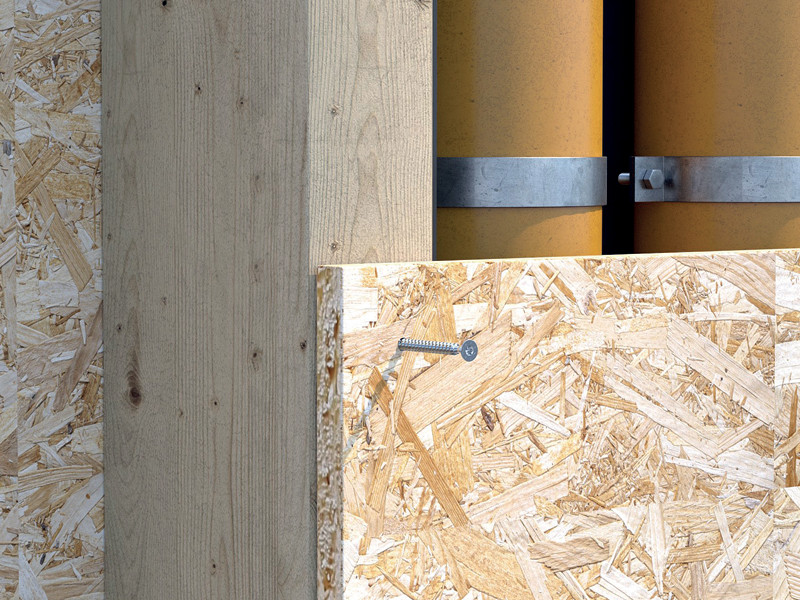

HTS, the fibre board screw that ensures maximum stability for wood or MDF panel fastening HTS stands out among screws for glued laminated timber and wood based-panels.
A fine thread guarantees the utmost screwing precision, even on MDF panels. In carbon steel with bright zinc plated, it is ideal for applications in service classes 1 and 2.
It is hexavalent chromium free and complies with the strictest standards governing chemical substances (SVHC).
Documents
-
Technical data sheets
- Technical data sheets Chinese
- Technical data sheets Croatian
- Technical data sheets Czech
- Technical data sheets Dutch
- Technical data sheets English Eurocode 5
- Technical data sheets English USA NDS
- Technical data sheets Finnish
- Technical data sheets French
- Technical data sheets German
- Technical data sheets Greek
- Technical data sheets Hungarian
- Technical data sheets Italian
- Technical data sheets Korean
- Technical data sheets Latvia
- Technical data sheets Norwegian
- Technical data sheets Polish
- Technical data sheets Portuguese
- Technical data sheets Romanian
- Technical data sheets Russian
- Technical data sheets Slovak
- Technical data sheets Slovene
- Technical data sheets Spanish
- Technical data sheets Swedish
-
File CAD
HTS
| CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
DOP
|
|---|---|---|---|---|---|---|---|---|---|---|
| HTS312 | - | 3 | 12 | 6 | 0.12 | 1/2'' | 1/4'' | TX10 | 1000 | - |
| HTS316 | - | 3 | 16 | 10 | 0.12 | 5/8'' | 3/8'' | TX10 | 1000 | - |
| HTS320 | - | 3 | 20 | 14 | 0.12 | 13/16'' | 9/16'' | TX10 | 1000 | |
| HTS325 | - | 3 | 25 | 19 | 0.12 | 1'' | 3/4'' | TX10 | 1000 | |
| HTS330 | - | 3 | 30 | 24 | 0.12 | 1 3/16'' | 15/16'' | TX10 | 1000 | |
| HTS3516 | - | 3.5 | 16 | 10 | 0.14 | 5/8'' | 3/8'' | TX15 | 1000 | - |
| HTS3520 | - | 3.5 | 20 | 14 | 0.14 | 13/16'' | 9/16'' | TX15 | 1000 | - |
| HTS3525 | - | 3.5 | 25 | 19 | 0.14 | 1'' | 3/4'' | TX15 | 1000 | |
| HTS3530 | - | 3.5 | 30 | 24 | 0.14 | 1 3/16'' | 15/16'' | TX15 | 500 | |
| HTS3535 | - | 3.5 | 35 | 27 | 0.14 | 1 3/8'' | 1 1/16'' | TX15 | 500 | |
| HTS3540 | - | 3.5 | 40 | 32 | 0.14 | 1 9/16'' | 1 1/4'' | TX15 | 500 | |
| HTS3550 | - | 3.5 | 50 | 42 | 0.14 | 1 15/16'' | 1 5/8'' | TX15 | 400 | |
| HTS420 | - | 4 | 20 | 14 | 0.16 | 13/16'' | 9/16'' | TX20 | 1000 | - |
| HTS425 | - | 4 | 25 | 19 | 0.16 | 1'' | 3/4'' | TX20 | 1000 | |
| HTS430 | - | 4 | 30 | 24 | 0.16 | 1 3/16'' | 15/16'' | TX20 | 500 | |
| HTS435 | - | 4 | 35 | 27 | 0.16 | 1 3/8'' | 1 1/16'' | TX20 | 500 | |
| HTS440 | - | 4 | 40 | 32 | 0.16 | 1 9/16'' | 1 1/4'' | TX20 | 500 | |
| HTS445 | - | 4 | 45 | 37 | 0.16 | 1 3/4'' | 1 7/16'' | TX20 | 400 | |
| HTS450 | - | 4 | 50 | 42 | 0.16 | 1 15/16'' | 1 5/8'' | TX20 | 400 | |
| HTS4530 | - | 4.5 | 30 | 24 | 0.18 | 1 3/16'' | 15/16'' | TX20 | 500 | |
| HTS4535 | - | 4.5 | 35 | 27 | 0.18 | 1 3/8'' | 1 1/16'' | TX20 | 500 | |
| HTS4540 | - | 4.5 | 40 | 32 | 0.18 | 1 9/16'' | 1 1/4'' | TX20 | 400 | |
| HTS4545 | - | 4.5 | 45 | 37 | 0.18 | 1 3/4'' | 1 7/16'' | TX20 | 400 | |
| HTS4550 | - | 4.5 | 50 | 42 | 0.18 | 1 15/16'' | 1 5/8'' | TX20 | 200 | |
| HTS530 | - | 5 | 30 | 24 | 0.2 | 1 3/16'' | 15/16'' | TX25 | 500 | |
| HTS535 | - | 5 | 35 | 27 | 0.2 | 1 3/8'' | 1 1/16'' | TX25 | 400 | |
| HTS540 | - | 5 | 40 | 32 | 0.2 | 1 9/16'' | 1 1/4'' | TX25 | 200 | |
| HTS545 | - | 5 | 45 | 37 | 0.2 | 1 3/4'' | 1 7/16'' | TX25 | 200 | |
| HTS550 | - | 5 | 50 | 42 | 0.2 | 1 15/16'' | 1 5/8'' | TX25 | 200 | |
| HTS560 | - | 5 | 60 | 50 | 0.2 | 2 3/8'' | 1 15/16'' | TX25 | 200 | |
| HTS570 | - | 5 | 70 | 60 | 0.2 | 2 3/4'' | 2 3/8'' | TX25 | 100 | |
| HTS580 | - | 5 | 80 | 70 | 0.2 | 3 1/8'' | 2 3/4'' | TX25 | 100 |
