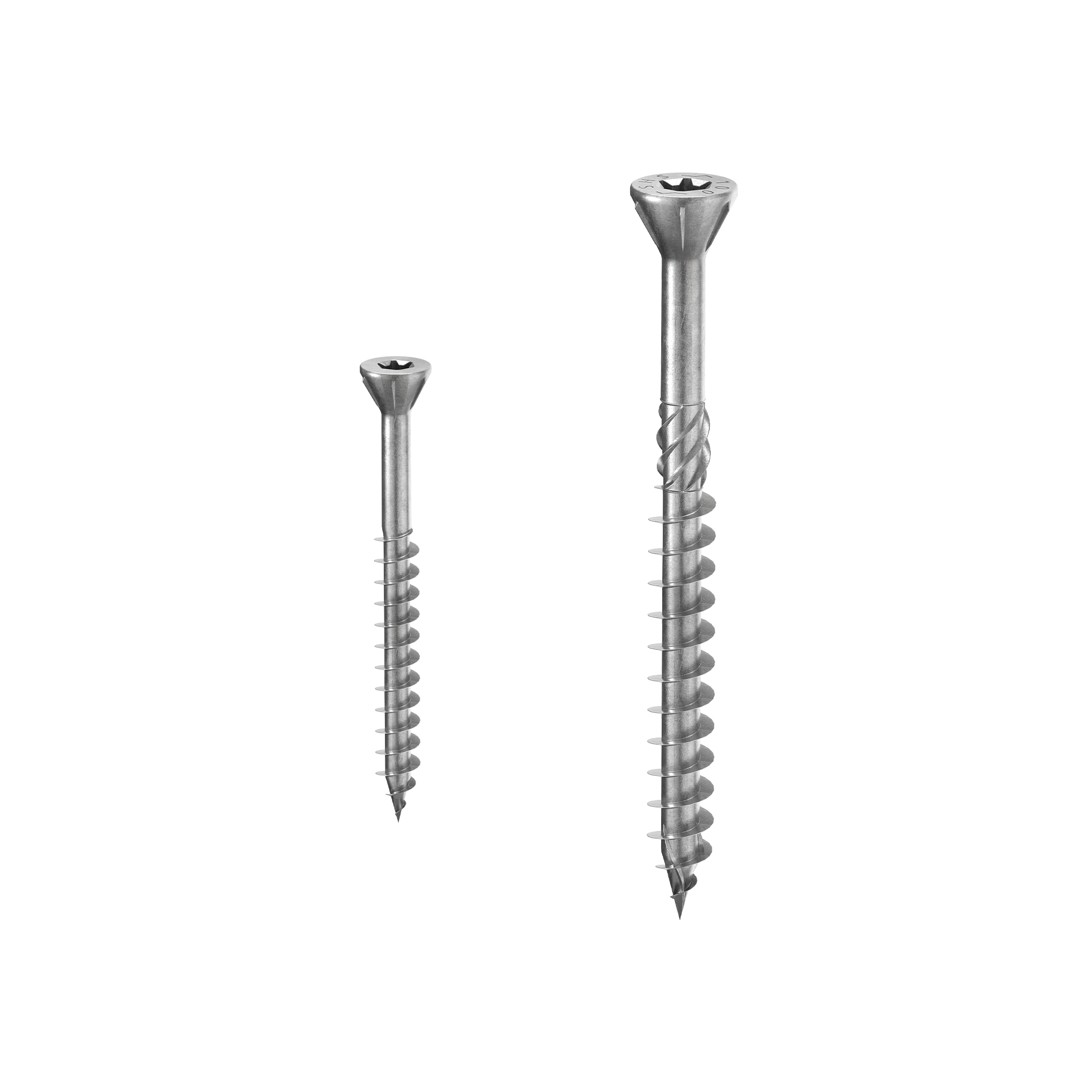

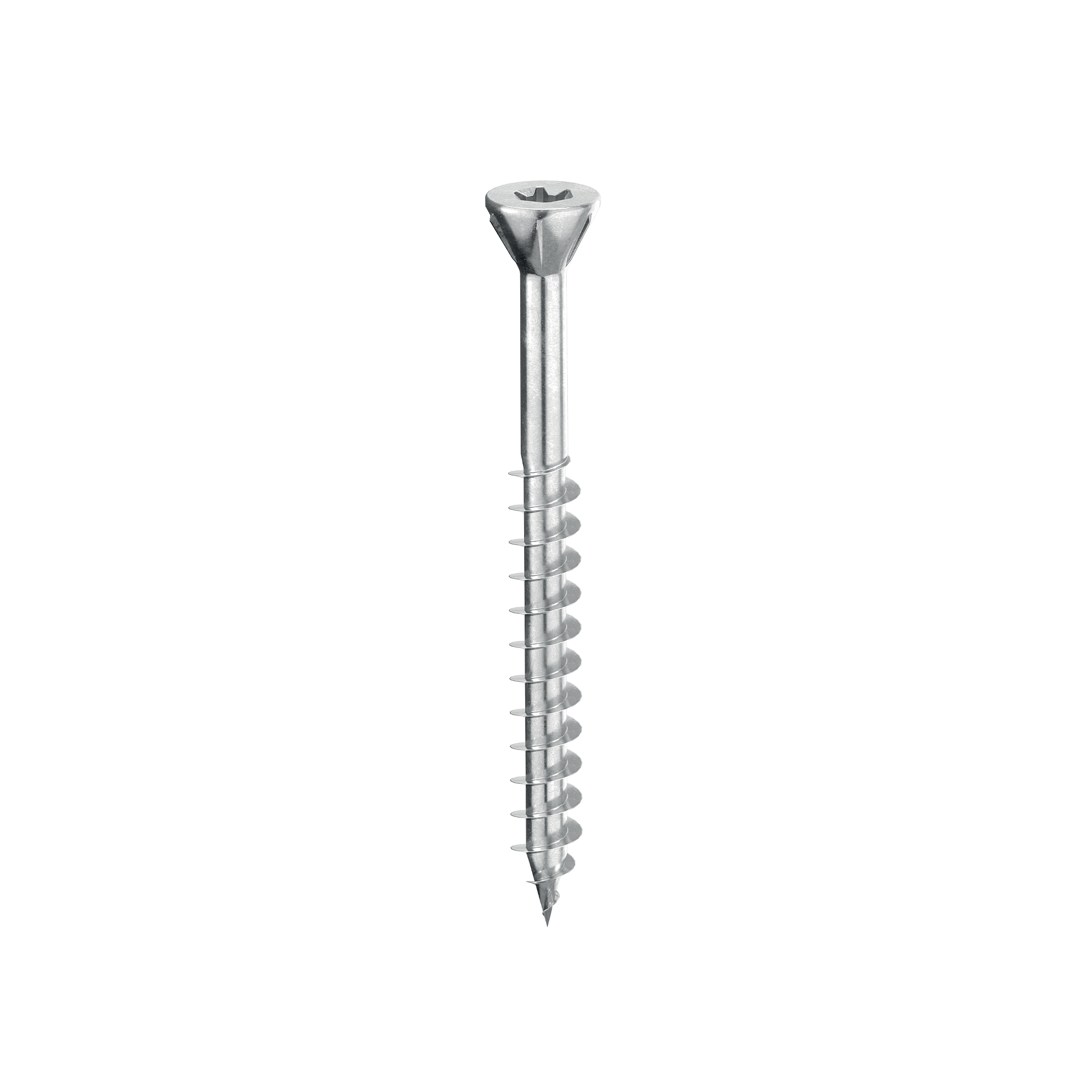

SMALL HEAD SCREW
SHS

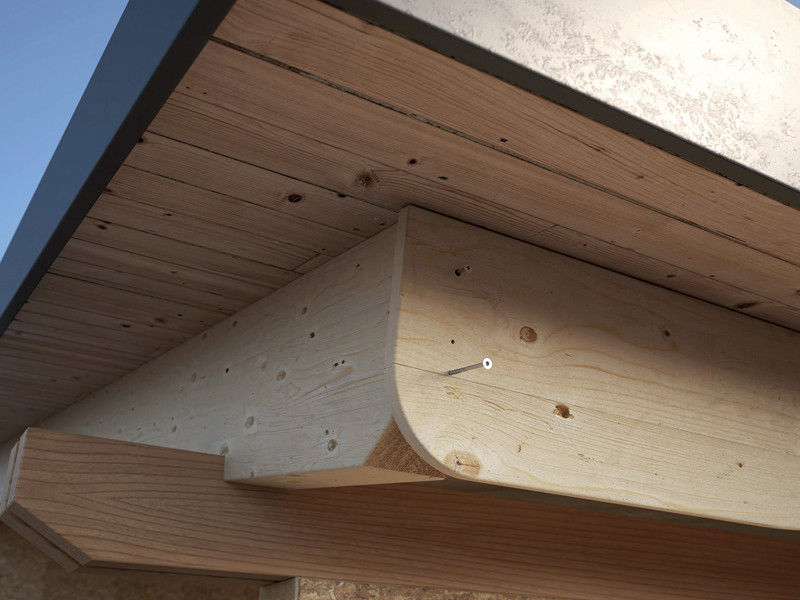

The SHS wood screw is the ideal solution for fastening beads, window stops or small wooden elements.
The 50° concealed head also goes easily into smaller thicknesses, preventing splitting.
There are many wood screws, all different. For your smallest jobs, rely on SHS.

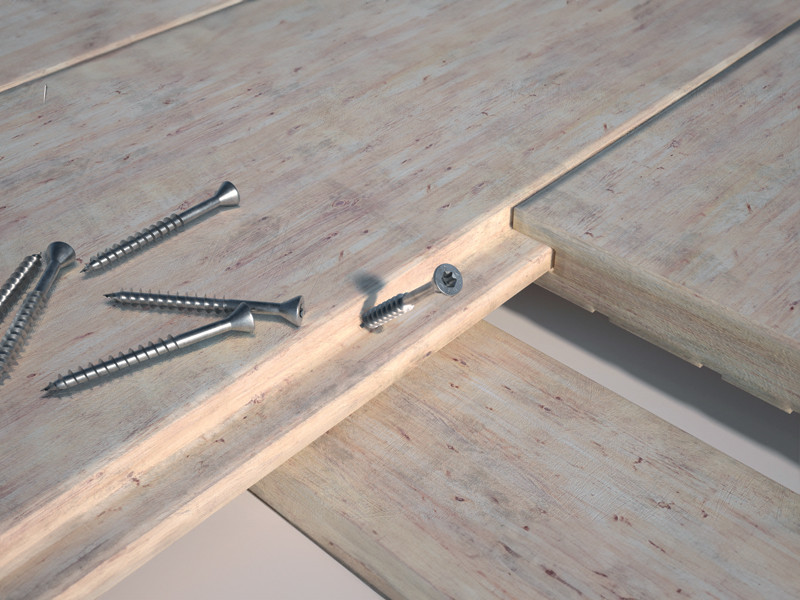

The SHS invisible-head screw is perfect for fastening tongue and groove boards, beads and small elements in general.
In carbon steel with bright zinc plated, it ensures durability.
Documents
Technical data sheets | |
---|---|
Minimum Distances Guide | |
Technical data sheets USA 🇺🇸 | |
ETA Certificate | |
Declaration of performance (DOP) | Download |
File CAD |
SHS Ø3,5
CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
---|---|---|---|---|---|---|---|---|---|
SHS3530 | - | 3.5 | 30 | 20 | 0.14 | 1 3/16'' | 13/16'' | TX10 | 500 |
SHS3540 | - | 3.5 | 40 | 26 | 0.14 | 1 9/16'' | 1 1/32'' | TX10 | 500 |
SHS3550 | - | 3.5 | 50 | 34 | 0.14 | 1 15/16'' | 1 5/16'' | TX10 | 500 |
SHS3560 | - | 3.5 | 60 | 40 | 0.14 | 2 3/8'' | 1 9/16'' | TX10 | 500 |
SHS Ø4 - Ø4,5 - Ø5
CODE | info | d₁
[mm]
|
L
[mm]
|
b
[mm]
|
d₁
[in]
|
L
[in]
|
b
[in]
|
TX | pcs. |
---|---|---|---|---|---|---|---|---|---|
SHS440 | - | 4 | 40 | 24 | 0.16 | 1 9/16'' | 15/16'' | TX25 | 500 |
SHS450 | - | 4 | 50 | 30 | 0.16 | 1 15/16'' | 1 3/16'' | TX25 | 400 |
SHS460 | - | 4 | 60 | 35 | 0.16 | 2 3/8'' | 1 3/8'' | TX25 | 200 |
SHS470 | - | 4 | 70 | 40 | 0.16 | 2 3/4'' | 1 9/16'' | TX25 | 200 |
SHS4550 | - | 4.5 | 50 | 30 | 0.18 | 1 15/16'' | 1 3/16'' | TX25 | 200 |
SHS4560 | - | 4.5 | 60 | 35 | 0.18 | 2 3/8'' | 1 3/8'' | TX25 | 200 |
SHS4570 | - | 4.5 | 70 | 40 | 0.18 | 2 3/4'' | 1 9/16'' | TX25 | 200 |
SHS550 | - | 5 | 50 | 24 | 0.2 | 1 15/16'' | 15/16'' | TX30 | 200 |
SHS560 | - | 5 | 60 | 30 | 0.2 | 2 3/8'' | 1 3/16'' | TX30 | 200 |
SHS570 | - | 5 | 70 | 35 | 0.2 | 2 3/4'' | 1 3/8'' | TX30 | 200 |
SHS580 | - | 5 | 80 | 40 | 0.2 | 3 1/8'' | 1 9/16'' | TX30 | 200 |
SHS590 | - | 5 | 90 | 45 | 0.2 | 3 1/2'' | 1 3/4'' | TX30 | 200 |
SHS5100 | - | 5 | 100 | 50 | 0.2 | 4'' | 1 15/16'' | TX30 | 200 |
SHS5120 | - | 5 | 120 | 60 | 0.2 | 4 3/4'' | 2 3/8'' | TX30 | 200 |
