Because of its ability to expand, the FIRE STRIPE GRAPHITE profile ensures that fumes, gases and flames are blocked from room temperature to over 500°C. FIRE STRIPE GRAPHITE is a versatile element that can be used within different construction details offering a simple and practical fire protection solution.

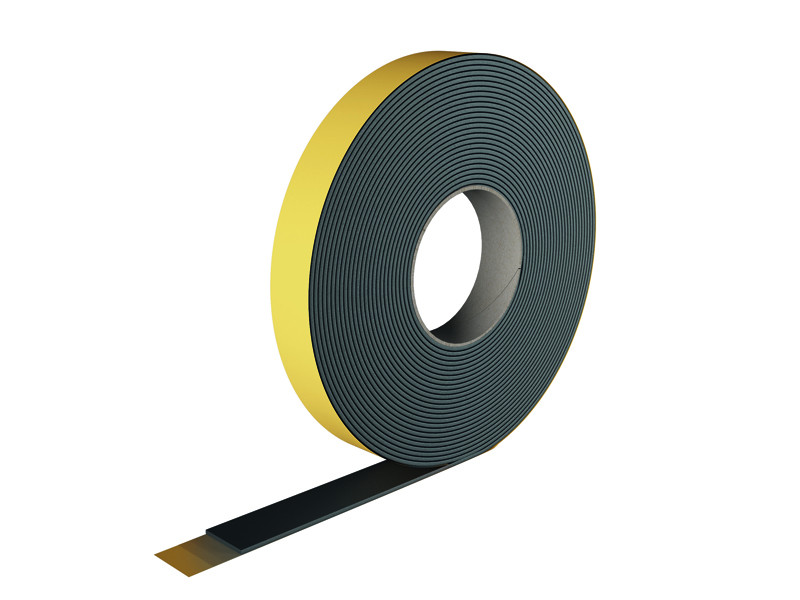

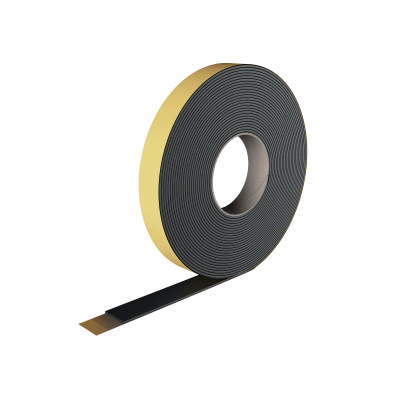

FIRE STRIPE GRAPHITE, the intumescent, flexible gasket that ensures your safety.
Starting at 150 °C, the profile transforms into a foam and achieves thicknesses up to 10 times greater than its original thickness, guaranteeing effective protection even in the vicinity of connections.
The FIRE STRIPE GRAPHITE gasket can be cut with scissors or a cutter and can be installed easily due to its adhesive surface, making it a very convenient and simple element to apply.
|Technical data sheets|
FIRE STRIPE GRAPHITE
|Property||Standard||Tested Values||USC Conversion|
|Density||-||ca. 1500 kg/m³||ca. 0.87 oz/in³|
|Expansion temperature||-||> 80 °C||> 176 °F|
|Optimal expansion temperature||-||> 210 °C||> 410 °F|
|Application temperature||-||15 / 30 °C||59 / 86 °F|
