UNIVERSAL ANGLE BRACKET FOR SHEAR AND TENSILE LOADS

NINO

NINO angle brackets introduce the new concept of universal angle brackets into the Rothoblaas range. They combine the simplicity of WBR building angle brackets with the technical quality of TITAN angle brackets.

NINO, the universal fastening solution for timber walls.

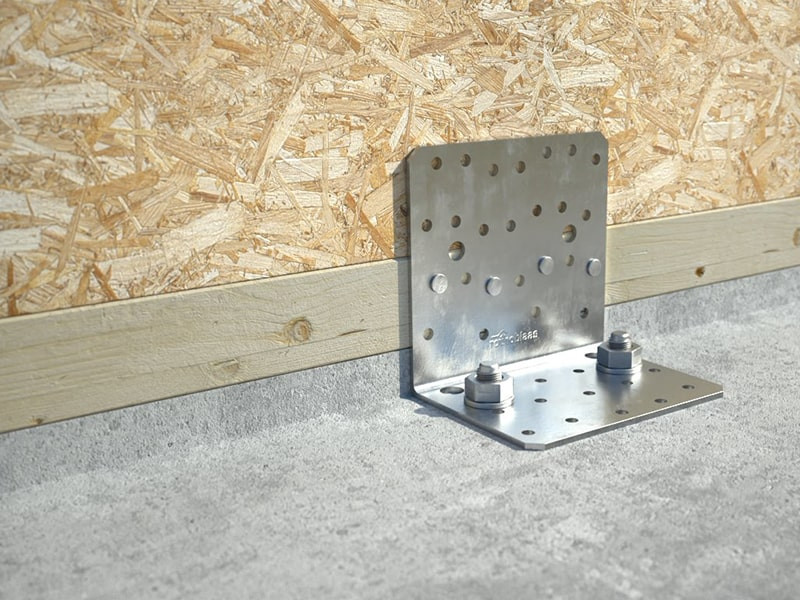

They are available in three sizes to meet many different fastening requirements, e.g. raised wall installation on concrete kerb or the presence of a plasterboard internal wall.

Fastening to timber elements can be carried out using only LBA improved adhesion nails or LBS plate screws in the traditional manner. The addition of the optional VGS full thread connectors provides unimaginable strengths for smaller connectors. The XYLOFON PLATE resilient profile coupling, certified by ETA with exceptional strengths, combines structural requirements with the resilient profile's ability to reduce acoustic bridges due to connections.

The ETA-22/0089 certified strengths for forces in all directions make them a complete solution for fastening CLT or timber frame walls. Their small dimensions also make them an ideal solution for non-structural applications or small fastening requirements. The same angle bracket can be used in timber-to-timber or timber-to-concrete configurations. On concrete, the additional washer provides surprising strengths.

Documents

Technical data sheets
ETA Certificate
Declaration of performance (DOP) Download
File CAD
File BIM.ifc
File BIM.rfa

NINO

CODE B
[mm]
P
[mm]
H
[mm]
s
[mm]
pcs.

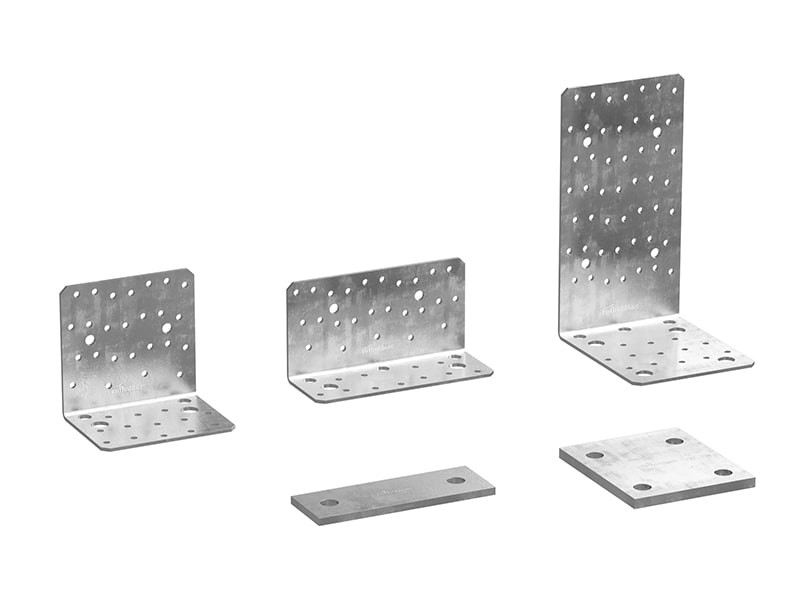

NINO100100 104 78 100 2.5 10
NINO15080 146 55 77 2.5 10
NINO15080S New 156 55 94 2.5 10
NINO100200 104 122 197 3 10

NINO WASHER

CODE B
[mm]
P
[mm]
s
[mm]
pcs.
NINOW15080 146 50 6 10
NINOW100200 104 120 8 10

XYLOFON PLATE - NINO

CODE B
[mm]
P
[mm]
s
[mm]
pcs.
XYL3580105 105 80 6 10
XYL3555150 150 55 6 10
XYL35120105 105 120 6 10
