WHT HOLD DOWN ANGLE BRACKET: VERSATILITY AND STRENGTH
WHT
The WHT hold-down angle bracket from Rothoblaas is on the market in an optimised version of the classic angle bracket for tensile loads. The new variant offers a more efficient fastening without compromising the performance of an already outstanding product.

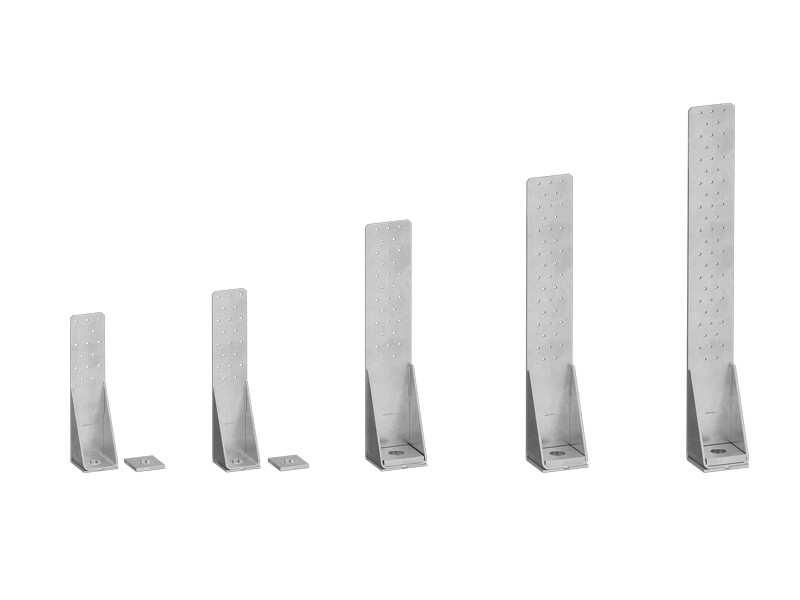

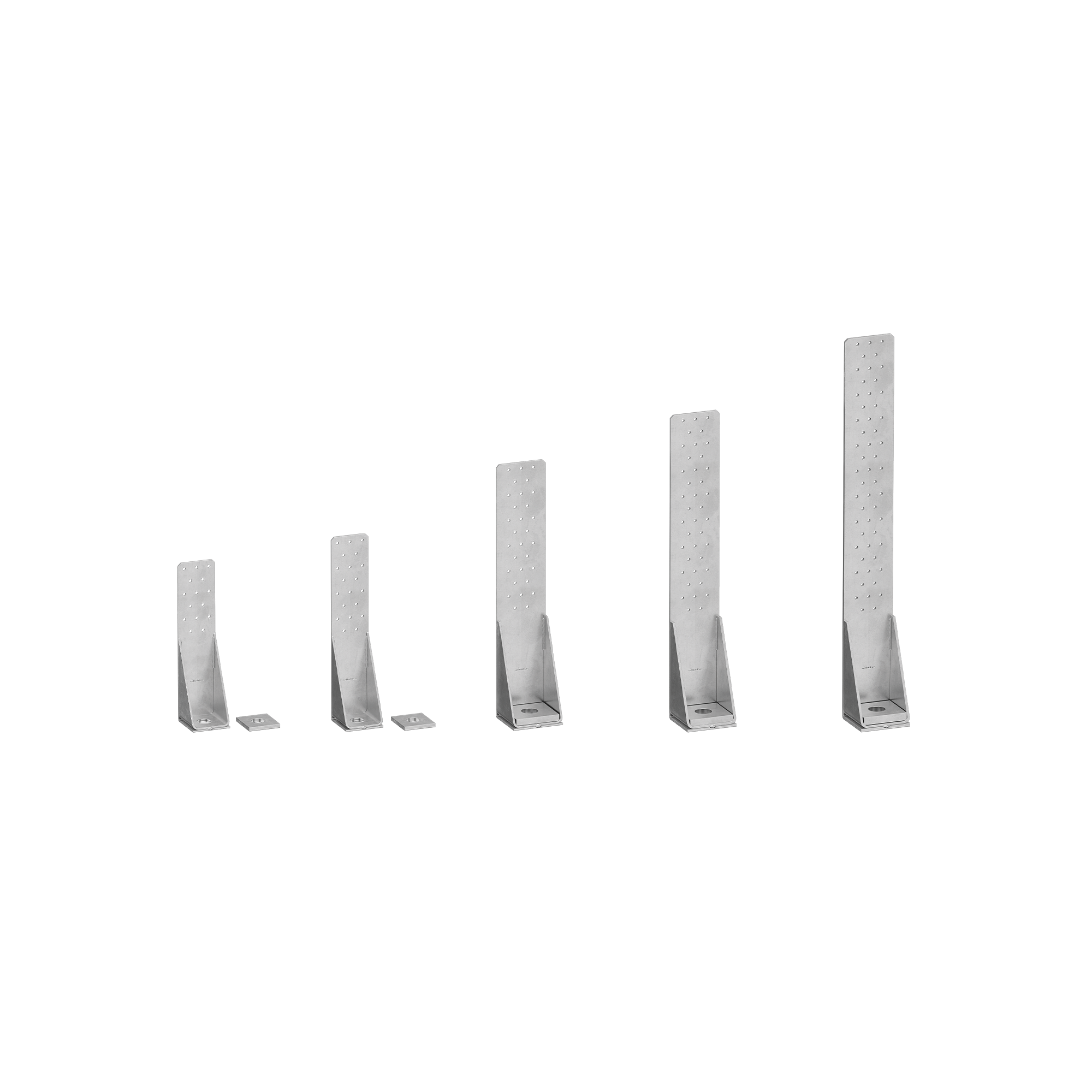

Available in 5 sizes, the WHT hold-down angle bracket is suitable for every static or seismic requirement, providing freedom of fastening with nails, screws or partial nailing.
ROTHOBLAAS HOLD-DOWN: APPLICATIONS AND BENEFITS

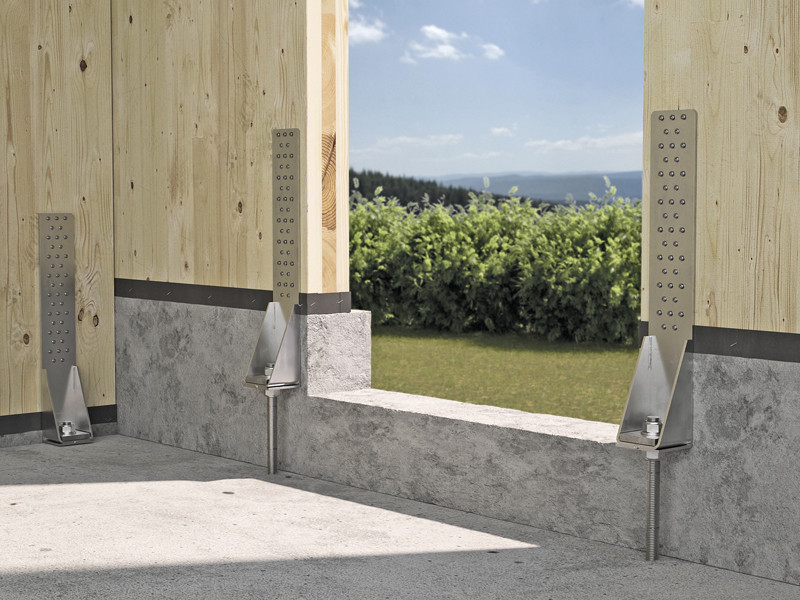

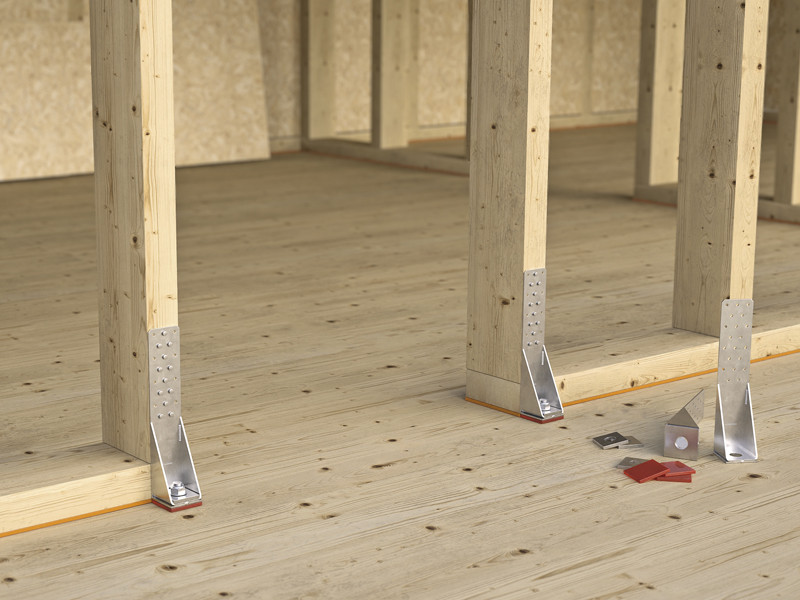

Suitable for CLT, LVL or timber frame walls, the WHT hold down angle bracket offers versatile solutions for tensile joints in timber walls. Ideal for timber-to-timber, timber-to-concrete and timber-to-steel configurations, it is perfect for applications on solid timber and glulam, framed walls, CLT panels and LVL panels. With NARROW PATTERN nailing, it is also suitable for frame walls with reduced upright widths (60 mm).
HOLD DOWN FOR HYBRID STRUCTURES

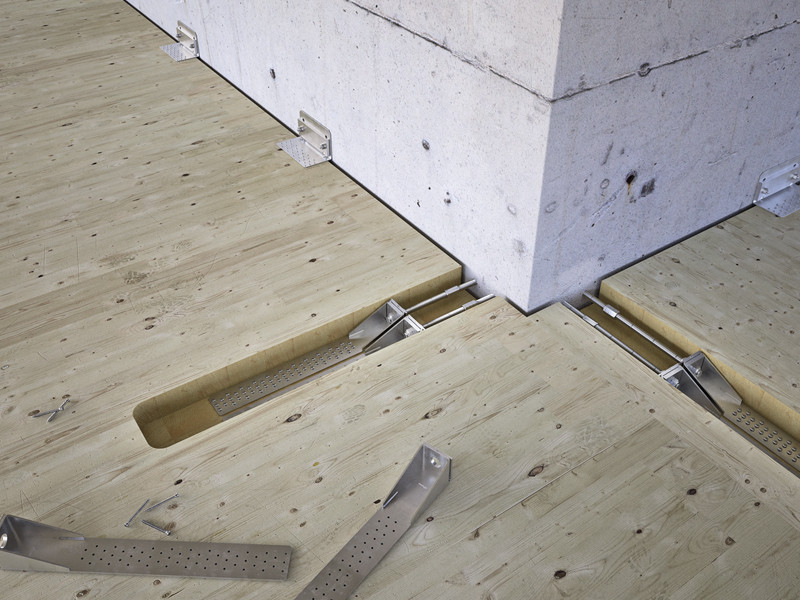

WHT is the hold down ideal for creating tensile connections between timber floors and bracing core in hybrid timber-to-concrete buildings. The anchoring of lightweight or heavy walls to concrete using WHT is possible both on new constructions and for retrofits.
Maximum versatility, guaranteed strength and freedom of fastening for every structural requirement, WHT is there in the construction site.
Documents
Technical data sheets | |
---|---|
ETA Certificate | |
Declaration of performance (DOP) | Download |
File CAD | |
File BIM.ifc | |
File BIM.rfa |
WHT
CODE | H
[mm]
|
s
[mm]
|
pcs. |
---|---|---|---|
WHT15 | 250 | 2.5 | 20 |
WHT20 | 290 | 3 | 20 |
WHT30 | 400 | 3 | 10 |
WHT40 | 480 | 4 | 10 |
WHT55 | 600 | 5 | 10 |
WHTW
CODE | Ø
[mm]
|
s
[mm]
|
pcs. |
---|---|---|---|
WHTW6016 | 18 | 6 | 120 |
WHTW6020 | 22 | 6 | 120 |
WHTW8020 | 22 | 10 | 50 |
WHTW8024 | 26 | 10 | 50 |
WHTW8024L | 26 | 12 | 40 |
XYLOFON WASHER - WHT
CODE | P
[mm]
|
B
[mm]
|
s
[mm]
|
pcs. |
---|---|---|---|---|
XYLW806060 | 60 | 60 | 6 | 10 |
XYLW808080 | 80 | 80 | 6 | 10 |
