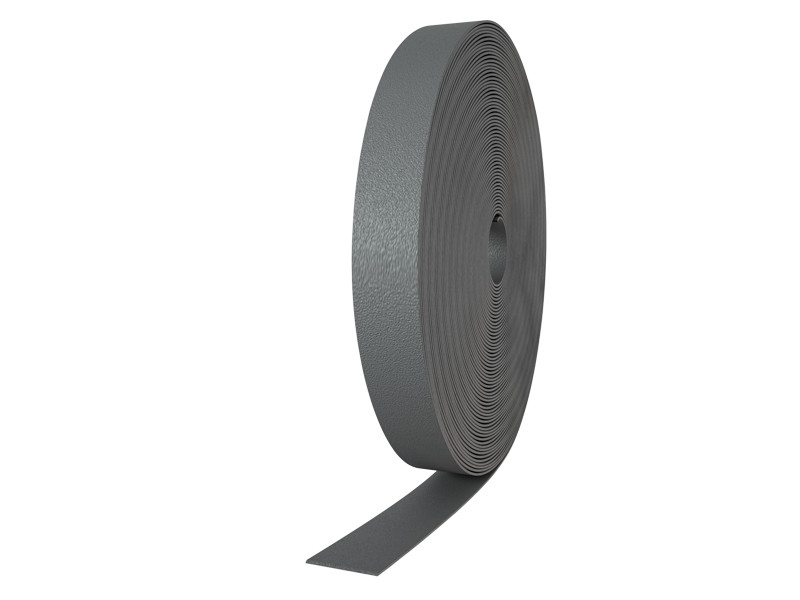

CONSTRUCTION SEALING
COMPRESSIBLE SEALING GASKET FOR REGULAR JOINTS
Perfect for plasterboard coating and configurations that require decoupling of elements to prevent airborne noise transmission. CONSTRUCTION SEALING has been tested within the Flanksound Project by Rothoblaas: it reduces up to 3 dB when used as an in-wall seal.
Description
APPLICATIONS

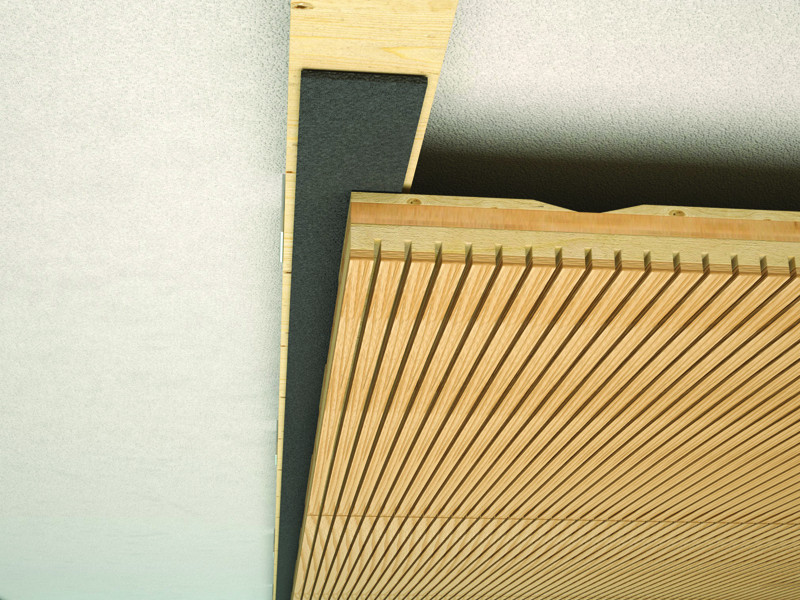

- Plasterboard coating
- Dry floors
It is an extremely practical seal that allows sealing timber-to-timber joints both on site and during prefabrication.
Documents
-
Technical data sheets
-
Fire test report
-
Technical insights
CONSTRUCTION SEALING
| CODE | B
[mm]
|
s
[mm]
|
L
[m]
|
B
[in]
|
s
[mil]
|
L
[ft]
|
pcs. |
|---|---|---|---|---|---|---|---|
| CONSTRU4625 | 46 | 3 | 25 | 1.8 | 118 | 82 | 3 |
Technical Data
| Property | Standard | Tested Values | USC Conversion |
|---|---|---|---|
| Density | - | ca. 0,48 g/cm³ | ca. 0.28 oz/in³ |
| DeformazioneACompressione22H23C | EN ISO 815 | < 25 % | - |
| Compression deformation (22h, +40°C) | ISO 815 | < 35 % | - |
| Resistance to temperature | - | 35 / 100 °C | 95 / 212 °F |
| Storage temperature | - | 5 / 25 °C | 41 / 77 °F |
| Solvents | - | no | - |
| Thickness | - | 3 mm | 118 mil |
| Fire resistance rating on CLT joint* | en 1366-4 | EI90 | - |
| Improving of Kij in the presence of the product in the joint (Δl,ij) | ISO 10848-1 | 4 dB | - |
Composition
| SUPPORT | Extruded compact EPDM |
|---|
