REMOVABLE CONNECTOR FOR STRUCTURAL PANELS
RING

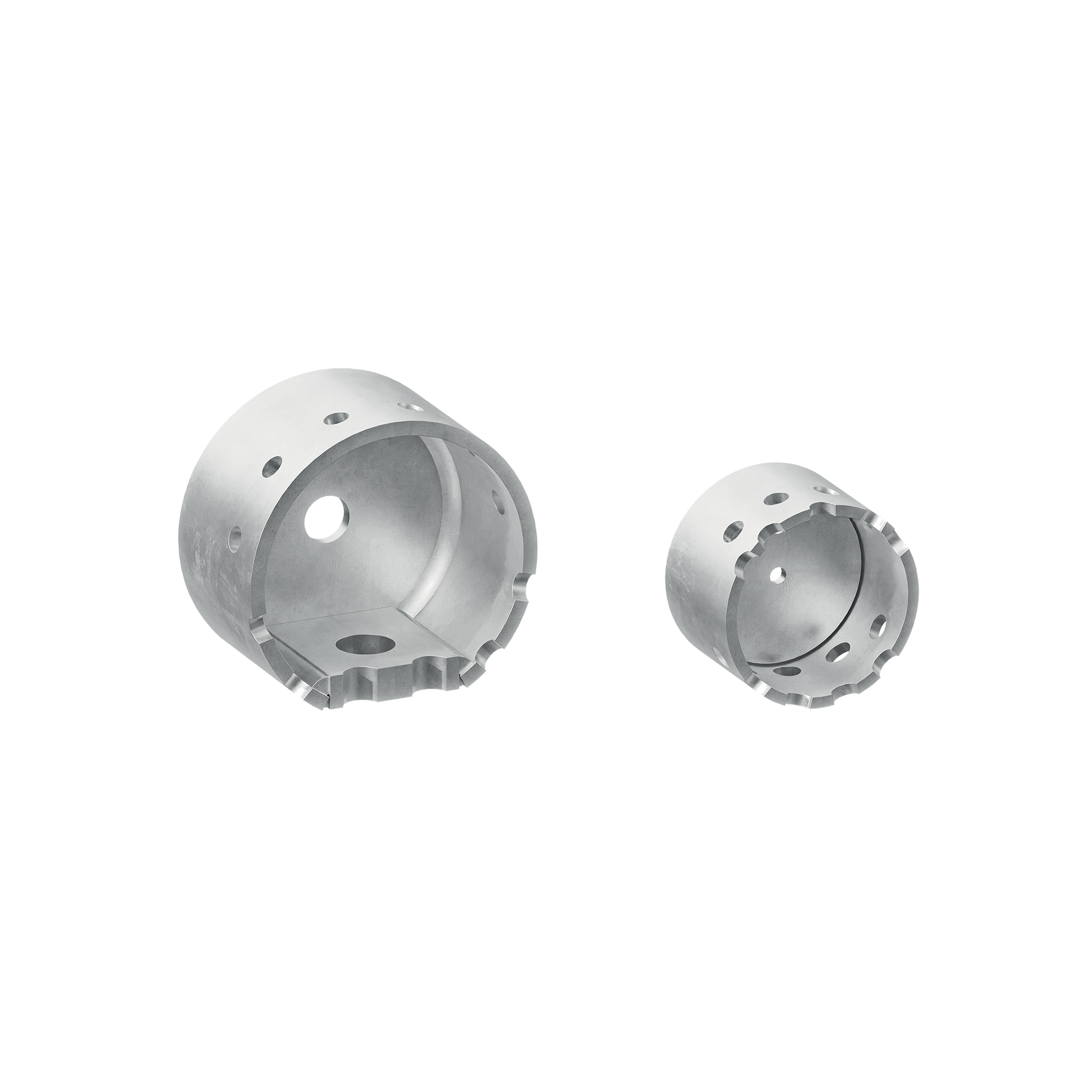

With its circular geometry and the double inclination of the screws, RING fits completely into the timber wall and is the ideal solution for prefabrication in the factory, transport and simple assembly on site.

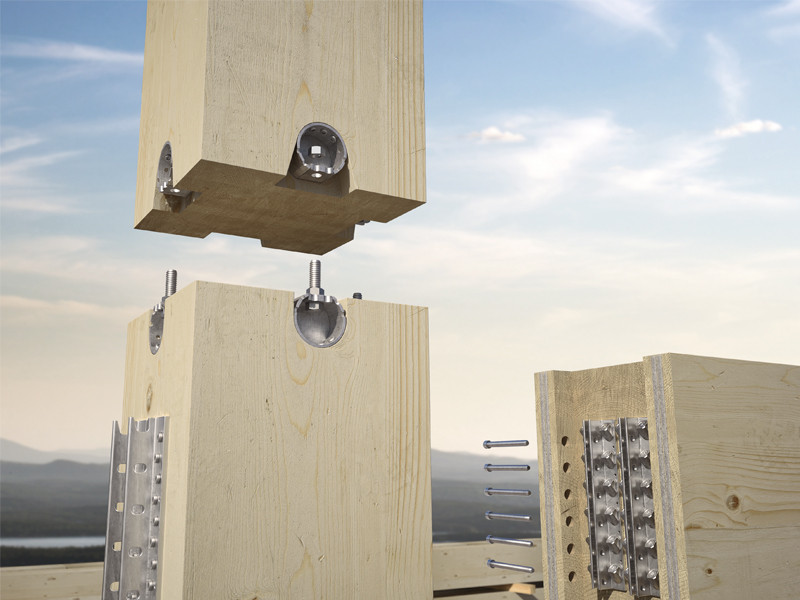

It also guarantees disassembly.
CHARACTERISTICS
Thanks to the double inclination of the screws, the connectors can be pre-installed in the factory or inserted on site. The installation of inclined screws is facilitated by the special geometry of the connector.

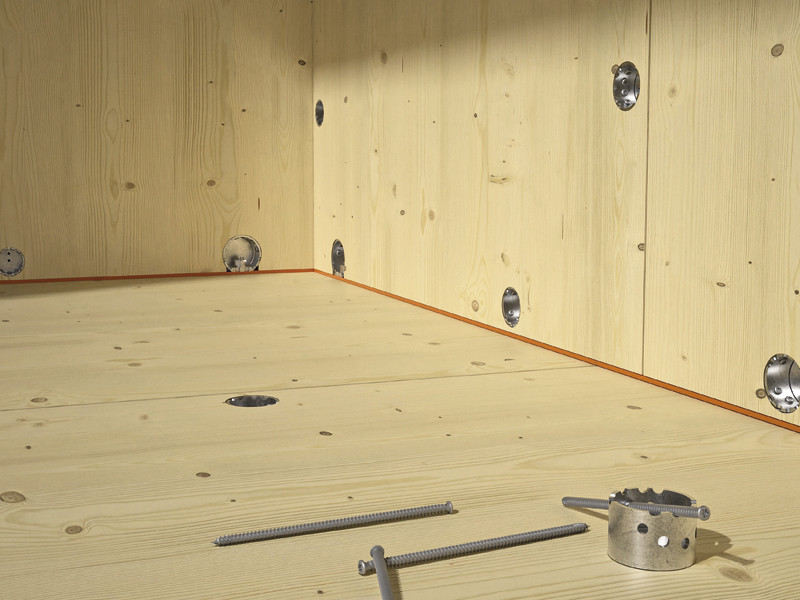

The version with screws (RING60T) is perfectly suited for connections between CLT panels as a floor-to-floor, floor-to-wall or wall-to-wall joint system. Pre-Installable in factory or on site, it allows positioning the panels according to any inclination and tolerances.

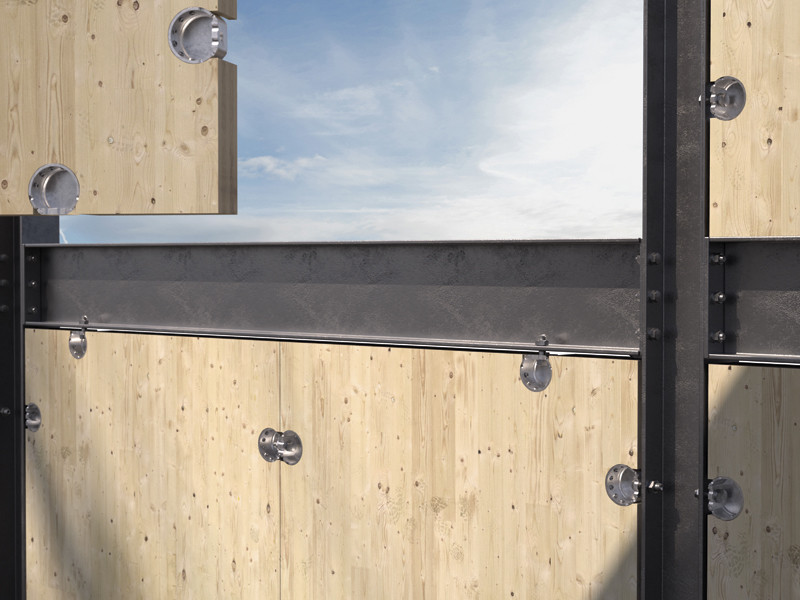

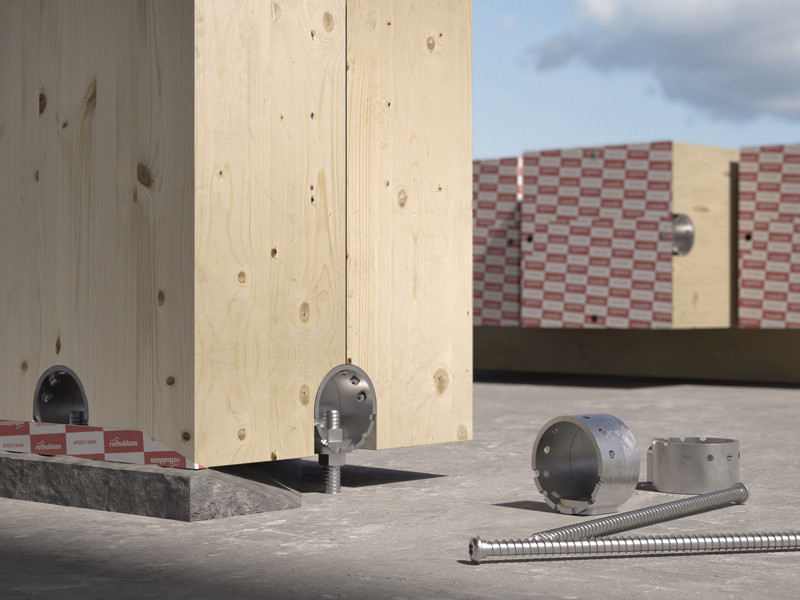

The bolted version (RING90C) is ideal for timber-to-steel connections in hybrid structures, or timber-to-timber connections using two connectors. No additional components required, simple bolting with M16.
The high strength of the connector makes it possible to reduce the number of fastenings. In the factory, simple processing of the panel is required, resulting in easy transport and installation, speeded up by operations performed only on one side of the wall.
RING connectors are made of S355 carbon steel with Fe/Zn12c surface treatment to maximise strength and durability.
Documents
Technical data sheets |
---|
RING
CODE | Ø
[mm]
|
B
[mm]
|
pcs. | |
---|---|---|---|---|
RING60T | New | 60 | 45 | 5 |
RING90C | New | 90 | 50 | 5 |
